How to Work with Data Files > Editing a Data File

Overview

If required by the project, Data Files can be edited during the development of a project.

To Edit a Data File

Step-by-step

1. Use one of the following to open a data file's properties window:

a. Go to the "Data Files" module and select the desired data file to be edited.

b. Right-click the selected data file.

c. Select "Properties".

a. Click , wherever available (usually in the properties windows of data file related processes).

Either of these options opens a data file's properties window where you can edit the settings of the data file in question. It is the same window displayed when creating a data file.

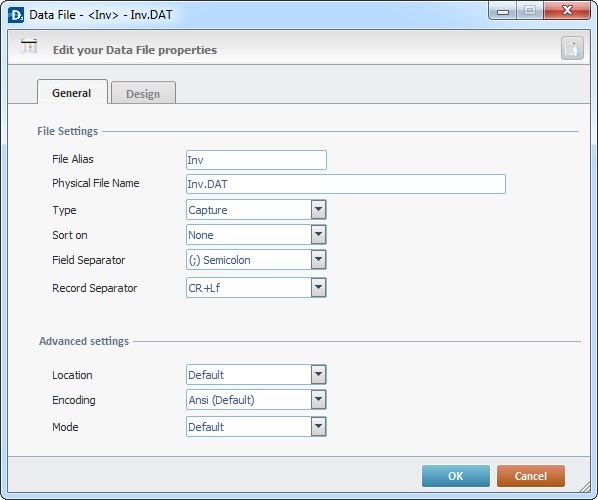

2. Maintain/alter the options presented in the General tab according to project requirements.

File Settings
File Alias	Maintain or modify the file alias (internal MCL-Designer reference name).
Physical File Name	Maintain or modify the file name.
Type	Maintain or modify file type (Lookup; Capture and Print).
Sort on	Maintain or modify the sorting field. If you select an option with sorting fields, the "File Data Viewer" window will provide an extra option to sort the existing data.
Field Separator	Maintain or modify the field separator.
Record Separator	Maintain or modify the characters that separate records.
Advanced Settings
Location	Maintain or modify the data file's location within the device.
Encoding	Maintain or modify the file format (Ansi or UTF-16 without BOM).
Mode	Maintain or modify the file mode (Default; Optimized; Auto Commit or Shared).

3. If you are done with the editing, click .

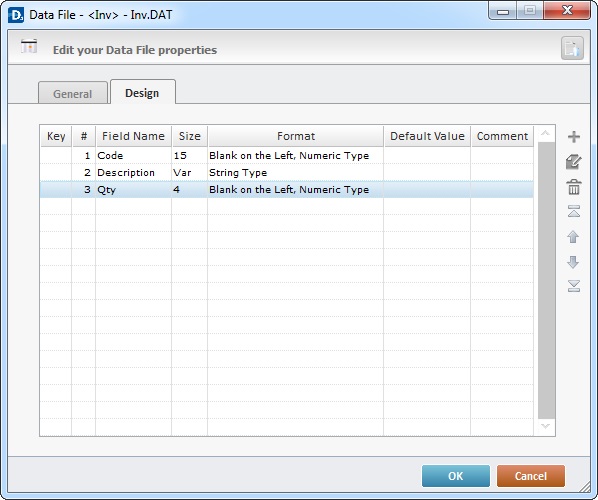

If you require the editing of the field settings, open the "Design" tab (continue to step 4).

4. Use one of the following to open a window that relates to the selected data file field's properties:

a. Select the data file field to be changed and click .

a. Double-click the required data file field.

a. Right-click the data file field you want to edit and select "Edit Field..." in the resulting menu.

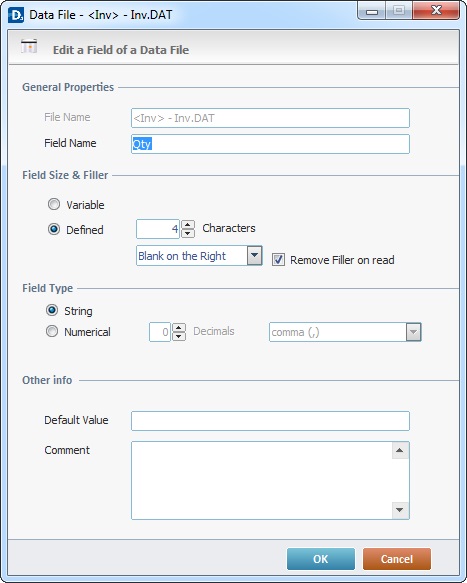

Once the field's properties window is open, you can enter the necessary changes regarding field settings.

5. Maintain or edit the available fields as necessary.

General Properties
File Name	This option is NOT editable. To do so, return to the General tab and edit the "File Alias" and "Physical File Name" options.
Field Name	Maintain or enter a new field name.
Field Size & Filler
Variable	Check/uncheck the option to allow fields to have a variable size or not.
Defined	Check or uncheck the option to define field size. If checked, specify the number of characters and fillers allowed in the field. Check/uncheck "Remove Filler on read".
Field Type
String	Check/uncheck the option to alter the field type.
Numerical	Check/uncheck the option to alter the field type. If checked, define the number of decimals and decimal separator characters.
Other Info
Default Value	Maintain or modify the field's "Default Value"
Comment	Maintain or add notes.

6. Conclude the editing operation by clicking .

Use the editing bar to the right of the "Design" tab to add (); edit (); delete () and move ()the data file fields.

Right-click the field you want to modify and select the appropriate option.

	Delete Field...	Deletes the selected field.
	Edit Field ...	Opens the selected field's “Edit a Field of a Data File” window.
	Copy Field...	Copies the selected field. Conclude by clicking "Paste Field...".
	Paste Field...	Must be preceded by a "copy field". Pastes the copied field.
	Duplicate Field...	Duplicates the selected field.
