Navigating the Project Module

Previous pageReturn to chapter overviewNext page



The Project module contains all the information about the project, such as author, company, date of creation and previous project version, the selected device and any additional notes.

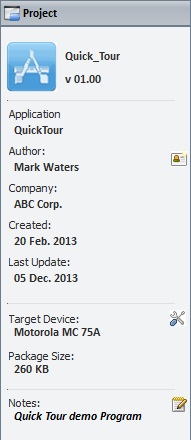

Clicking the Project module expands it and displays some of the information that was entered during project creation (ex: the name of the author, the company, etc.).

The project’s properties displayed can be edited by clicking the following icons:



Click it to access the "Application Info" tab of Project Properties. See Application Info



Click it to access the "Target Device" tab of Project Properties. See Target Device



Click it to access the "Project Notes" tab of Project Properties. See Project Notes







For more information on a project's properties, see Project Settings.
