Process Purpose
The Local Database Get Schema Version process is used to provide the database's schema version number.
Whenever there is a structural change in the selected database, a new version with an incremented number is created.

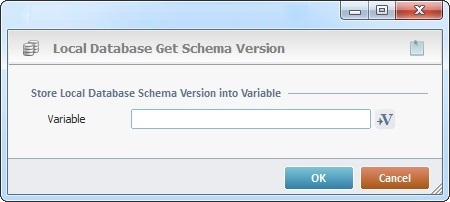

When you add a process, you are required to define its settings. This occurs in the process's properties window which is displayed automatically after having added the Local Database Get Schema Version process.
If any subsequent edition is required, double-click the process to open its properties window and enter the necessary modifications.
Fill in the following options:
Store Local Database Schema Version into Variable |
|
Variable |
Click |
Use the editing icons to the right of the table to move the rows up and down and to delete or add more rows.
After filling in the required options, click
to conclude or
to abort the operation.
As an option, use
to attach any relevant notes to this process. Click it and enter your notes in the resulting text box. These notes will be displayed in the corresponding "Actions" tab or "Process" window (in the "Notes" field) and in the "Developer Report".
The added process is displayed in the corresponding "Actions" tab or "Process" window.
Use the right click in MCL-Designer's input boxes to access certain features regarding the input box's option as well as general actions such as "Copy"; "Paste"; "Search".
Ex: If you right-click the "Variable" input box (included in a "Conversion's" properties window), you are provided with the "Search..." and "Variable Select" options.
If you right-click another input box, it will provide other possibilities.
to select the variable that will receive the schema version information. See
