Process Purpose

The Load Destination (GPS Position) process is used to send the destination's latitude and longitude to the CoPilot navigation application and, if valid, to start the navigation routing.

When you add a process, you are required to define its settings. This occurs in the process's properties window which is displayed automatically after having added the Load Destination (GPS Position) process.

If any subsequent edition is required, double-click the process to open its properties window and enter the necessary modifications.

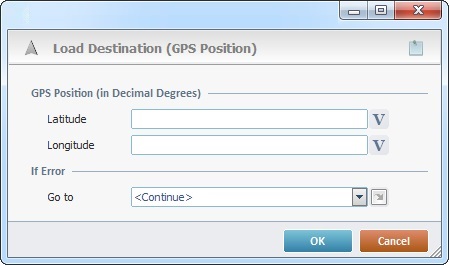

General tab

Fill in the following options (the options marked with an asterisk are NOT mandatory):

GPS Position (in Decimal Degrees)
Latitude	Enter the latitude to be loaded or click to select a variable that provides the value. See Variable Definition.
Longitude	Enter the longitude to be loaded or click to select a variable that provides the value.
If Error
Go to	Select a target location from the drop-down or list, in case there is an error. See Detail of a window below.

Detail of a window:

"S:Menu" is a screen included in the same program as the process.

"R:Routine_1" is a routine included in the same program as the process.

If required, click to attach any relevant notes to this process. Click it and enter your notes in the resulting text box. These notes will be displayed in the corresponding "Actions" tab or "Process" window (in the "Notes" field) and in the "Developer Report".

After filling in the required options, click to conclude or to abort the operation.

The added process is displayed in the corresponding "Actions" tab or "Process" window.

Use the right click in MCL-Designer's input boxes to access certain features regarding the input box's option as well as general actions such as "Copy"; "Paste"; "Search".

Ex: If you right-click the "Variable" input box (included in a "Conversion's" properties window), you are provided with the "Search..."and "Variable Select" options.

If you right-click another input box, it will provide other possibilities.
