Working with Read Process
|
Working with Read Process |
|
Process Purpose
The RFID Read process is used in a “single tag” operation (synchronous operation) to read a tag's memory bank and store that information into variables.
When reading more than 64 bytes of the User Memory Bank (for instance, the complete memory bank), the system will read the data in blocks of 64 bytes (RFID reader will flash multiple times).
Make sure you have already created the required RFID profile(s). See Creating an RFID Profile.
Check the necessary steps to create an RFID program in To Create an RFID Program.
The RFID Read process MUST NOT be associated to an On RFID Tag Read event.

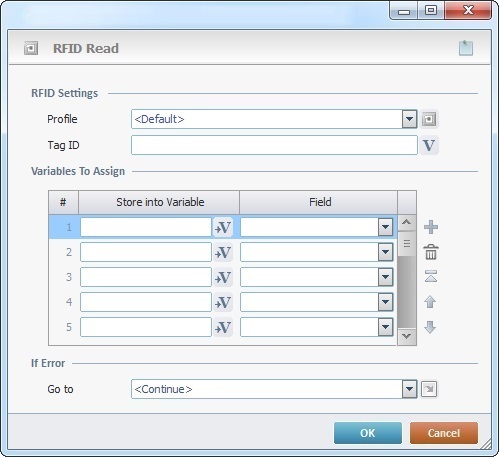

When you add a process, you are required to define its settings. This occurs in the process's properties window which is displayed automatically after having added the RFID Read process.
If any subsequent edition is required, double-click the process to open its properties window and enter the necessary modifications.
Fill in the following options:
RFID Settings |
|
Profile |
Select the appropriate RFID profile from the drop-down list. If required, click |
Tag ID |
Define the tag to be read. Either enter the tag's ID or click |
Variables to Assign |
|
Store into Variable column |
Click |
Field column |
Define the tag field to be read. Select the appropriate tag field from the drop-down list. |
If Error |
|
Go to |
Select a target destination, in case an error occurs, from the drop-down or |
Detail of a
window:
"S:Menu" is a screen included in the same program as the process.
"R:Routine_1" is a routine included in the same program as the process.
Use the editing icons to the right of the table to move the rows up and down and to delete or add more rows.
If required, click
to attach any relevant notes to this process. Click it and enter your notes in the resulting text box. These notes will be displayed in the corresponding "Actions" tab or "Process" window (in the "Notes" field) and in the "Developer Report".
After filling in the required options, click
to conclude or
to abort the operation.
The added process is displayed in the corresponding "Actions" tab or "Process" window.
Use the right click in MCL-Designer's input boxes to access certain features regarding the input box's option as well as general actions such as "Copy"; "Paste"; "Search".
Ex: If you right-click the "Variable" input box (included in a "Conversion's" properties window), you are provided with the "Search..."and "Variable Select" options.
If you right-click another input box, it will provide other possibilities.
to create a new profile or edit an existing one. See
and select a variable with that value. See
and select/create the variable that will store the tag field value that was read. See
