How to Work with Processes > Working with the Speech Processes Group > Working with Speech Operator Info Process

Process Purpose

The Speech Operator Info process is used to retrieve operator related info from the system and store it into variables. This process can only be used after the operator's login operation - the login procedure provides info to the system that can, then, be retrieved by this process (no successful login operation means no operator information).

When you add a process, you are required to define its settings. This occurs in the process's properties window which is displayed automatically after having added the Speech Operator Info process.

If any subsequent edition is required, double-click the process to open its properties window and enter the necessary modifications.

Proceed as follows to store the retrieved operator information:

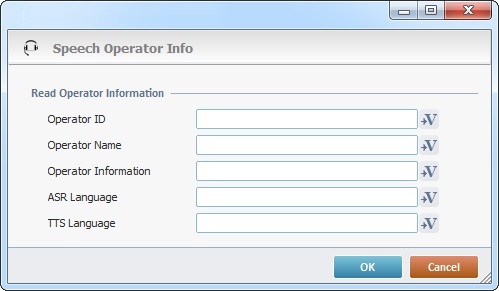

Read Operator Information
Operator ID	Enter the name of the variable or click to select the variable that receives the "Operator ID" value. Ex: "000123". See To Select/Create a Variable.
Operator Name	Enter the name of the variable or click to select the variable that receives the "Operator Name" value. Ex: "John Silva".
Operator Information	Enter the name of the variable or click to select the variable that receives the "Operator Information" value. “Operator Information” refers to the operator's spoken name. Ex: "John".
ASR Language	Enter the name of the variable or click to select the variable that receives the operator's "ASR Language" value.
TTS Language	Enter the name of the variable or click to select the variable that receives the operator's "TTS Language" value.

After filling in the required options, click to conclude or to abort the operation.

The added process is displayed in the corresponding "Actions" tab or "Process" window.

Use the right click in MCL-Designer's input boxes to access certain features regarding the input box's option as well as general actions such as "Copy"; "Paste"; "Search".

Ex: If you right-click the "Variable" input box (included in a "Conversion's" properties window), you are provided with the "Search..."and "Variable Select" options.

If you right-click another input box, it will provide other possibilities.
