Navigation:  How to Work with Programs > Creating a New Program



Overview



Creating a new project automatically starts with a program (P:Main), as referenced in Creating a New Project. It is not possible to rename this "Main" program.





To Create a Program



Use one of the following to add a program to the "Programs" module:



A. Use the direct "Add a Program" option.



1. Right-click an empty space inside the "Programs" module.

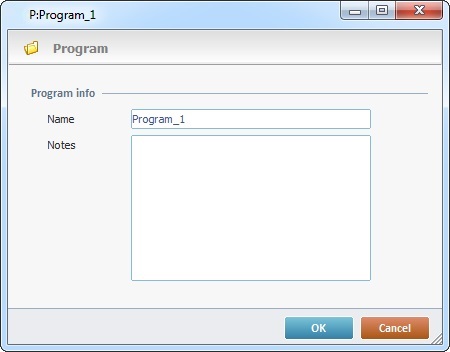

2. Select “Add Program” in the resulting menu. This opens the following window:





3. If necessary, rename the new program and add relevant information in the "Notes" text box.





The name for the program MUST be unique throughout the project (ex: You cannot have a program and a global procedure with the same name).





4. Click to conclude.



OR



B. Import a program from library using "Library Manager". See To Import a Program from Library.



C. Duplicate a program.



1. Select the appropriate program in the module's tree view and right-click it.



2. In the resulting menu, click “Duplicate Program”.



This duplicates all the elements (screens, controls, events and processes) contained in the selected program. The duplicate program has the same name as the original one plus an incremented number.



3. Open its properties window (right-click the duplicate program and select "Edit") to rename it and, if necessary, add relevant information.





Although it is possible to create a project with just a Main program, it is recommended to distribute project functionalities in several programs. This eases debugging and allows for a smoother application running.

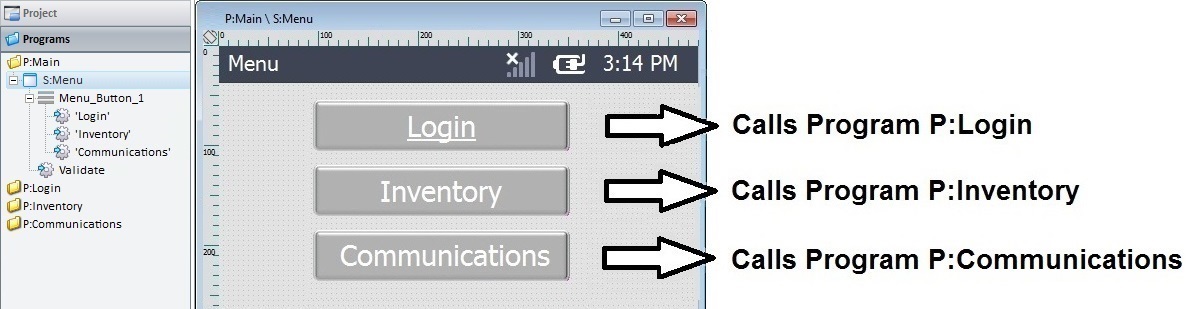

EX: A basic inventory application/project that contains 4 programs.
