How to Work with Processes > Working with the Other Processes Group

Process Purpose

The Restart/Reboot process is used to execute the following operations on the device: exit the current application, execute a soft or hard reboot.

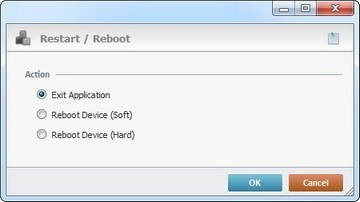

When you add a process, you are required to define its settings. This occurs in the process's properties window which is displayed automatically after having added the Restart/Reboot process.

If any subsequent edition is required, double-click the process to open its properties window and enter the necessary modifications.

Proceed as follows:

Action

Check one of the following options:

Exit Application - to exit the current application.

Reboot Device (Soft) - to execute a software reboot on the device.

Reboot Device (Hard) - to execute a hardware reboot on the device.

If required, click to attach any relevant notes to this process. Click it and enter your notes in the resulting text box. These notes will be displayed in the corresponding "Actions" tab or "Process" window (in the "Notes" field) and in the "Developer Report".

After filling in the required options, click to conclude or to abort the operation.

The added process is displayed in the corresponding "Actions" tab or "Process" window.
