Subscription Details

Navigation:  Managing the Account > Subscriptions >

Subscription Details

Previous pageReturn to chapter overviewNext page



Overview



The "Subscription Details" page provides more detailed information regarding the subscription and how its services/products are distributed by the sites included in the account.

The subscription details are for viewing only, they are NOT editable. The "Products" tab is open by default.





You can access "the "Subscription Details" page by clicking the subscription (displayed in light blue) in the "Subscriptions" section of the Admin Dashboard OR  by clicking the subscription code (displayed in light blue) in the "Subscriptions" page.



Subscription Details Products Tab



This page consists of three tabs (Products, Modules and Sites) and a "left panel".

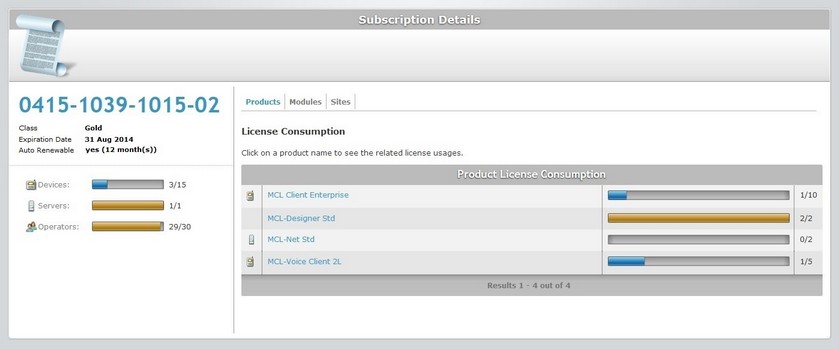

Products tab



Subscription Details Products Tab



This tab displays the following information:



Product License Consumption

(Product Name)

Each gauge represents the corresponding product license consumption. If you click the product (displayed in light blue), you open a window with details regarding the product license.

See Detail of a Product License Usage window below.

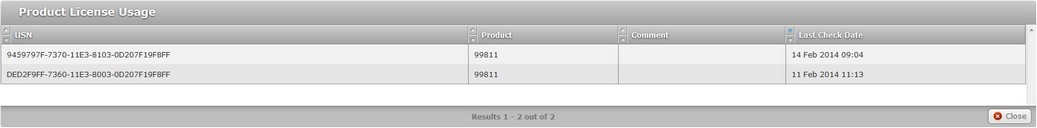

Detail of a Product License Usage window



Product license usage



This window, which is NOT editable, provides the following information:



USN

The serial number of the device/PC where the product is running.

Product

The product code.

Comment

The comment provided by the device/PC during the last license update (token refresh).

Last Check Date

The last time the device/PC contacted MCL-Mobility Platform for a license update (token refresh).

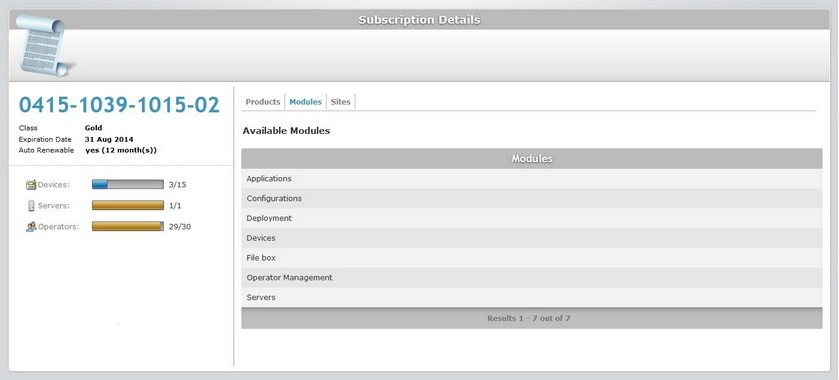

Modules tab



Subscription Details Modules tab



This tab displays the available modules (services) included in the selected subscription.

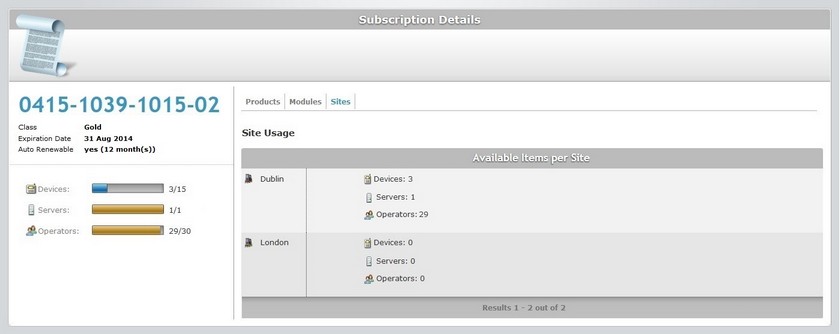

Sites tab



Subscription Details Sites Tab



This tab displays the items distribution by the sites included in the account (devices, servers and operators).



"Left Panel"



The "left panel" includes general information regarding the selected subscription:



Subscription Details Left Info

(In blue)

The subscription's identification number.

Class

The type of subscription.

Expiration Date

The subscription's expiration date.

Auto Renewable

The subscription's renewability: “no” (the subscription is not automatically renewed) or “yes +time period” (confirmation of renewability and the renewable subscription cycle).

Devices

The number of devices included in the subscription and the ones that have services associated to them.

Servers

The number of servers associated to the subscription.

Operators

The number of operators that can log in to the devices.
