Working with Set Host Address Process
|
Working with Set Host Address Process |
|
Process Purpose
The Set Host Address process is used to set a host server address of a given host profile that is used to communicate data to a web service (web service domain).
When you add a process, you are required to define its settings. This occurs in the process's properties window which is displayed automatically after having added the Set Host Address process.
If any subsequent edition is required, double-click the process to open its properties window and enter the necessary modifications.

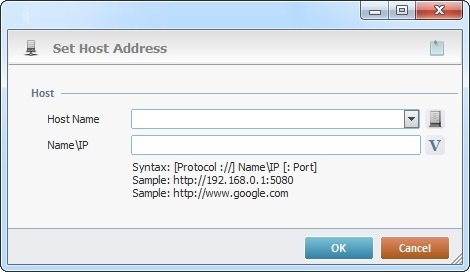

Fill in the following options:
Host |
|
Host Name |
Select a host profile from the drop-down list or click |
Name\IP |
Enter the name/IP address and port or click |
If required, click
to attach any relevant notes to this process. Click it and enter your notes in the resulting text box. These notes will be displayed in the corresponding "Actions" tab or "Process" window (in the "Notes" field) and in the "Developer Report".
After filling in the required options, click
to conclude or
to abort the operation.
The added process is displayed in the corresponding "Actions" tab or "Process" window.
Use the right click in MCL-Designer's input boxes to access certain features regarding the input box's option as well as general actions such as "Copy"; "Paste"; "Search".
Ex: If you right-click the "Variable" input box (included in a "Conversion's" properties window), you are provided with the "Search..."and "Variable Select" options.
If you right-click another input box, it will provide other possibilities.
to create a new host profile or edit an existing one. See
and select a variable with that value.
