Overview

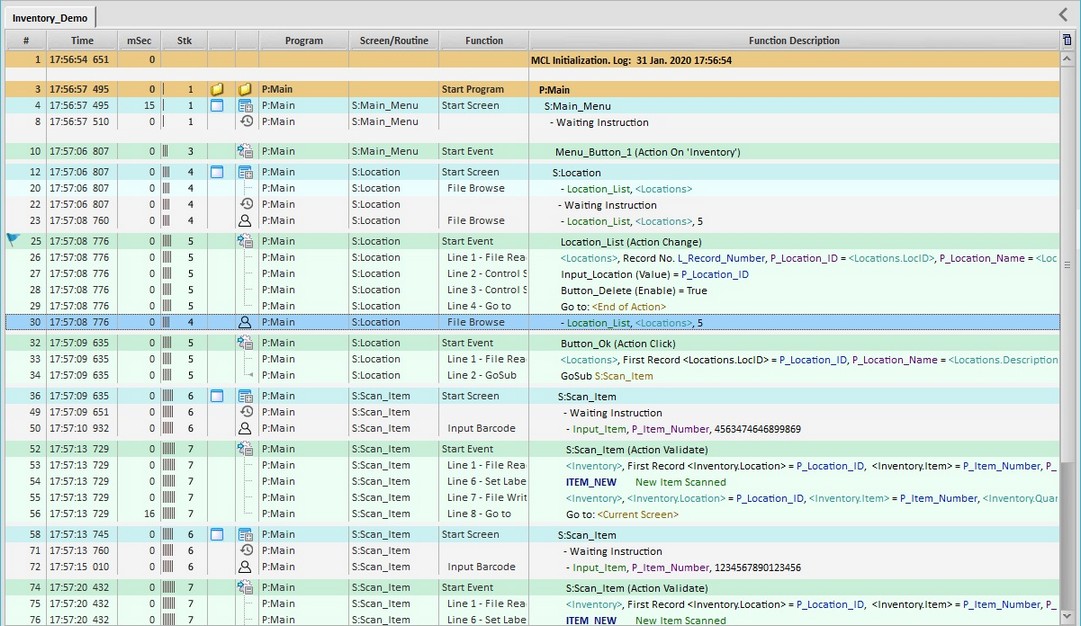

The Execution Flow section consists of a tab (named after the project) with a table that displays the flow of a project, in real time.

This flow is represented by execution rows that contain information to be viewed, analyzed and fed into the "Variables" section.

You can copy/paste rows, however, the information contained in the rows of the Execution Flow section is NOT editable.

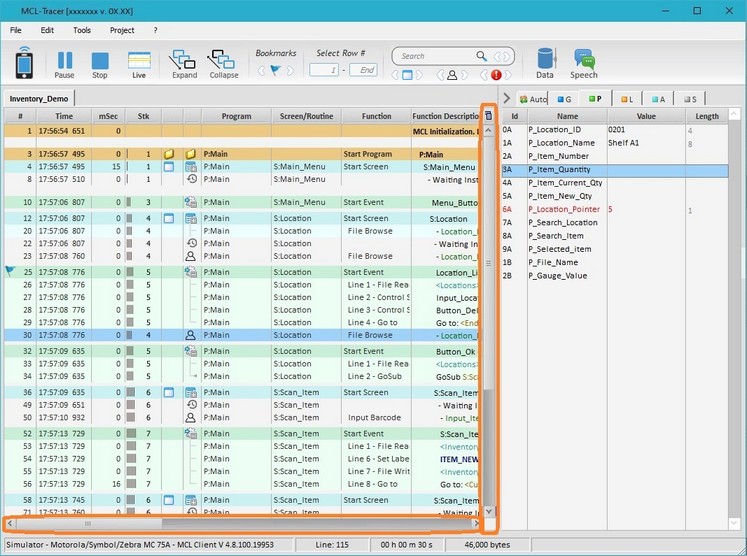

The Execution Flow section

Execution Flow Table
First row	Displays the start date/time of the session's log file.
# column	Number of the execution row and Bookmarks , if any.
Time column	When each row is executed.
mSec column	Time between 1 executed MCL instruction and the next.
mSec Exe	Execution time of an MCL instruction.
Thr column	N/A
Stk column	Program "stack" level.
Screen column	Graphic representation of a screen - . It is displayed when the execution flow changes screens.
Icons column	Graphic representation of the element where the actions are being executed.
Program column	The name of the program (within the project) where the actions are being executed.
Screen/Routine column	The name of the screen or routine where the actions are being executed.
Event column	The name of the event associated to the action being executed.
Function column	The name of the element being executed (ex: the control, the process).
Function Description column	Element detail(s) and parameter(s) associated to the action being executed (referred in the "Function" column).

Below are the icons that can be displayed in the "Icons column" of the "Execution Flow" table that represent a project element.

	Represents a Program.
	Represents a Global Procedure.
	Represents a Global Event.
	Refers to a Screen with expanded content (its execution rows are visible).
	Identifies to a Screen with collapsed content (its execution rows are concealed).
	Refers to a physical interaction between operator and project.
	Represents an Event with expanded content (its execution rows are visible).
	Refers to an Event with collapsed content (its execution rows are concealed).
	Represents a Routine with expanded content (its execution rows are visible).
	Represents a Routine with expanded content (its execution rows are concealed).
	Represents a Local Procedure with expanded content (its execution rows are visible).
	Represents a Local Procedure with expanded content (its execution rows are concealed).
	Identifies a GoSub, a Call or a Return line process.
	Identifies an Exit line process.
	N/A
	Identifies an Error occurred during the application flow (ex: a communications error).

Available Menus

Although the information within the execution rows is NOT editable, it is possible to manage the viewed information (ex: copy/paste of rows, data export, data printing, etc).

The Execution Flow section provides several menus with options.

The Menu

The button is located on the upper right corner of the Execution Flow section and provides access to the following option:

Select columns

Use this option to define which columns should be displayed. See Column Display.

The Right-Click Option of the Column Header

If you right-click a column header, the following option opens:

Select columns

Use this option to define which columns should be displayed. See Column Display.

The Right-Click Menu of a Row

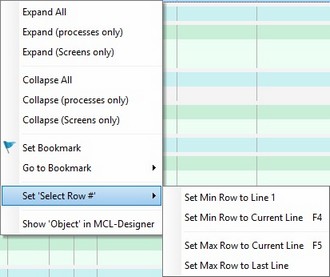

If you right-click a row, you access the following options:

	Expand All	Expands all collapsed/hidden rows (regardless of content) within the Execution Flow table.
	Expand (Processes Only)	Expands the collapsed/hidden rows that relate to processes within the Execution Flow table.
	Expand (Screens Only)	Expands the collapsed/hidden rows that relate to screens within the Execution Flow table.
	Collapse All	Collapses/conceals all possible rows (regardless of content) within the Execution Flow table.
	Collapse (Processes Only)	Collapses/conceals the rows that relate to processes within the Execution Flow table.
	Collapse (Screens Only)	Collapses/conceals the rows that relate to screens within the Execution Flow table.
	Previous Occurrence	Available depending on the element that is right-clicked. Jumps to the row with the previous occurrence of the selected element. Ex: Right-click "File Browse"and, then, select "Previous Occurrence" - if there is one, the focus will jump to the row with the previous use of that process.
	Next Occurrence	Available depending on the element that is right-clicked. Jumps to the row with the next occurrence of the selected element. Ex: Right-click "File Browse" and, then, select "Next Occurrence" - if there is one, the focus will jump to the row with the next use of that process.
	Highlight 'xxxxxxxxxx'	Searches and highlights all the occurrences of the selected string 'xxxxxx' in the Execution Flow section. The string refers to what was previously clicked/selected in the "Program", "Screen/Routine", "Function" or "Function Description" columns. Ex: Click "S:Main_Screen" in the "Screen/Routine" column and, then, select the "Highlight 'S:Main Street' "option - all the "S:Main_Screen" occurrences within the rows of the Execution Flow section will be highlighted. To remove the highlighted strings, clear the search box located on the Icons Bar and click "<Enter>".
	Search next 'xxxxxxxxxx'	Searches the next occurrence of the selected string 'xxxxxx' (ex: "S:Main_Screen"). This string is in the selected line in the Execution Flow table and only available if the right-click was in columns are Program, Screen/Routine, Function or Function Description.
	Set Bookmark	Applies a bookmark to the selected row.
	Clear Bookmark	Clears the selected row's bookmark. This options is only available if there is a bookmark in the selected row.
	Go to Bookmark	Allows you to "jump" to another bookmark within the Execution Flow section. The "Previous", "Next" or "Last" options are calculated based on the currently selected row's position.
	Set 'SelectRow #'	Allows you to isolate an area of code for analysis purposes by ONLY displaying a particular set of execution rows. See To Hide/Restore Rows with a Right-Click Menu (or Function Keys) below.
	Show 'Object' in MCL-Designer	Opens the properties window within MCL-Designer V4 of the element included in the selected row. If the selected element has nothing to refer to , the option is greyed out.

To Hide/Restore Rows with a Right-click Menu (or Function Keys)

	Set Min Row to Line 1	Restores all rows above the displayed rows.
	Set Min Row to Current Line	Marks the beginning of the code area to isolate.
	Set Max Row to Current Line	Marks the end of the code area to isolate.
	Set Max Row to End	Restores all rows below the displayed rows.

Execution Flow Table's Navigation/Display Control

Use the following to navigate the Execution Flow table and view further information on the execution rows:

•Scroll Bar Navigation

Use the vertical scroll bar to navigate up and down the execution rows.

The horizontal scroll bar becomes available, if you re-size the width of a column, meaning, if you drag the dividing line of a column, left or right.

•Mouse Over for Information

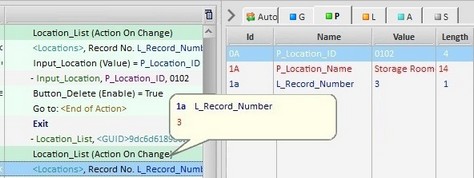

If you place your mouse over a variable in the "Function Description" column, a pop-up balloon with real time info on the variable is presented. It includes the variable's ID; name and value at that execution time.

If you want to view the corresponding information on the tabs of the Variables section (area to the right), you must click the variable.

It is possible to control the display of the Execution Flow table, meaning, you can define which columns should be displayed and their width:

•Column Display

Use one of the following options to ensure the viewing of a column:

a. Use the button (located on the Execution Flow table's upper right corner).

I. Click to open a menu.

II. Mouse over to open a list with all the table's columns.

III. Check the columns you want exposed.

b. Use the right-click menu:

I. Right-click a column header to access the corresponding menu.

II. Mouse over the option to access a list with all the table's columns.

III. Check the columns you want exposed.

•Column Width

Use the drag-a-drop to enlarge or reduce a column or the Execution Flow table itself.

1. Mouse over the border of the column or the table.

2. When the cursor changes to a "double-arrow", drag the cursor into the intended direction to enlarge/reduce that area.

This resizing may result in the appearance of a horizontal scroll bar.
