How to Work with Processes > Working with the Data File Processes Group

Process Purpose

The INI file is a key/value text file typically used for configuration and parameter setting in applications.

The Write to Ini File process is used to enter data such as key/value pairs into an INI file that is installed in the target device.

Example of an INI File (with 2 sections)

[GLOBAL]

host=SERVER_ABC

port=8088

[BUSINESS]

location=Lisbon

name=The Priceless Shop

contact=00351 951 887 499

If the purpose is to write several sections into the INI file, use a Write to Ini File process for each section to be added.

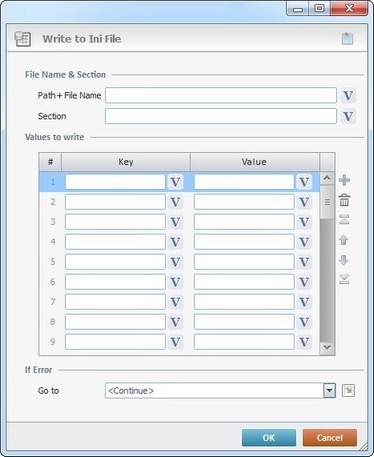

When you add a process, you are required to define its settings. This occurs in the process's properties window which is displayed automatically after having added the Write to Ini File process.

If any subsequent edition is required, double-click the process to open its properties window and enter the necessary modifications.

Fill in the following options:

File Name & Section
Path + File Name	Enter the name and path (inside the device) of the INI file to be written or click and select a variable with that value.
Section	Insert the name of the section to write, within the INI file, or click and select a variable with that value.
Values to Write
Key	Enter the key/parameter to write or click and select a variable with that value.
Value	Enter the value to be written or click and select a variable with that value.
If error
Go to	Select a target location from the drop-down or the list, if an error occurs in the execution of the “Write INI File”operation. See Detail of a window below.

Use the editing icons to the right of the table to move the rows up and down and to delete or add more rows.

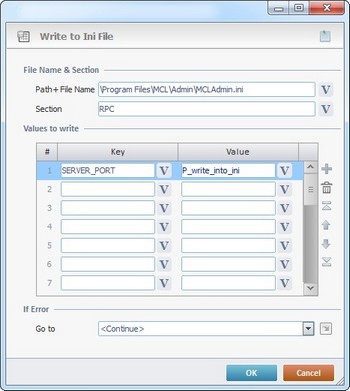

Example

Detail of a window:

"S:Menu" is a screen included in the same program as the process.

"R:Routine_1" is a routine included in the same program as the process.

If required, use the icon on the upper right corner of the process properties window:

Use the icon to attach any relevant notes to this process. Click it and enter your notes in the resulting text box. These notes will be displayed in the corresponding "Actions" tab or "Process" window (in the "Notes" field) and in the "Developer Report".

After filling in the required options, click to conclude or to abort the operation.

The added process is displayed in the corresponding "Actions" tab or "Process" window.

Use the right-click in MCL-Designer's input boxes to access some related options as well as the general "Cut", "Copy"; "Paste"; "Search" actions (active/inactive according to the current context).

Ex: If you right-click the "Variable" input box (included in a "Conversion's" properties window), you are provided with general editing/search actions and other more specific options such as "Variable Select" (see "Variable Select") ;"Variable Insert" (see "Variable Insert")"Insert Special Character" (see To Insert Special Characters into a Control's Text Input Field) and "Localization Select" (see Localization List).

If you right-click another input box, it nay provide other possibilities.
