How to Work with Processes > Working with the Control Operations Processes Group

Process Purpose

The Get Property process is used to get the properties/state/value of any control on a screen.

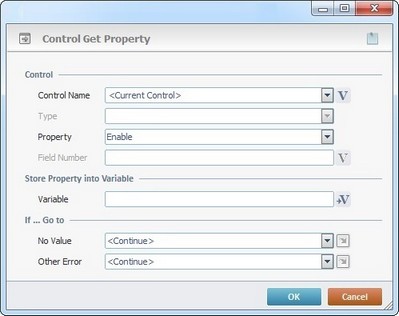

When you add a process, you are required to define its settings. This occurs in the process's properties window which is displayed automatically after having added the Get Property process.

If any subsequent edition is required, double-click the process to open its properties window and enter the necessary modifications.

Fill in the following options:

Control
Control Name	Select the control you want to get properties from or click and select a variable with that value. See Variable Definition.
Type	If you selected a control from the "Control Name's"drop-down list, this option will automatically display its corresponding type and will NOT be editable. If you used a value within a variable to define the required control, you must select a control type from the drop-down list.
Property	Select the property/state/value of the previously defined control you want to retrieve. If the selected property is "Element Value" or "Field Value", the "Field Number" option will be enabled.
Field Number	This option is only available if the selected property is "Element Value" or "Field Value". Enter a value or click to select the variable that includes that value.
Store Property into Variable
Variable	Click and select/create the variable that will store the control's retrieved property/state/value. See To Select/Create a Variable.
If... Go to
No Value	Select a destination for a "No Value" result from the drop-down or the list. See Detail of a window below.
Other Error	Select a destination for an "Other Error" result from the drop-down or the list. See Detail of a window below.

Detail of a window:

"S:Menu" is a screen included in the same program as the process.

"R:Routine_1" is a Routine included in the same Program as the process.

If required, use the icon on the upper right corner of the properties window:

Use the icon to attach any relevant notes to this process. Click it and enter your notes in the resulting text box. These notes will be displayed in the corresponding "Actions" tab or "Process" window (in the "Notes" field) and in the "Developer Report".

After filling in the required options, click to conclude or to abort the operation.

The added process is displayed in the corresponding "Actions" tab or "Process" window.

Get Property Process Uses

The following table displays the properties/values/states that can be retrieved from each control with the "Get Property" process. The retrieved value can be a control's default value or the value previously set with the help of the Set Value process (see Working with Set Value Process).

	Control Property	Get Property Process Value
Display Text	"Enable"	Returns "Y" or "N".
Display Text	"Visible"	Returns "Y" or "N".
Display Header	"Enable"	Returns "Y" or "N".
Display Header	"Visible"	Returns "Y" or "N".
Display Line	"Enable"	Returns "Y" or "N".
Display Line	"Visible"	Returns "Y" or "N".
Display Shape	"Enable"	Returns "Y" or "N".
Display Shape	"Visible"	Returns "Y" or "N".
Input Keyboard	"Enable"	Returns "Y" or "N".
Input Keyboard	"Visible"	Returns "Y" or "N".
Input Barcode	"Enable"	Returns "Y" or "N".
Input Barcode	"Visible"	Returns "Y" or "N".
Input Date	"Enable"	Returns "Y" or "N".
Input Date	"Visible"	Returns "Y" or "N".
Input Time	"Enable"	Returns "Y" or "N".
Input Time	"Visible"	Returns "Y" or "N".
Input Spin	"Enable"	Returns "Y" or "N".
Input Spin	"Visible"	Returns "Y" or "N".
Combo Box	"Record Number"	Considers the data source (a data file or a local database) and returns the selected record row number.
	"Index Number"	Considers the data displayed in the control (queried/selected elements within the data source - a data file or a local database) and returns the selected record row number.
	"Displayed Value"	Returns the "displayed" value you defined in the Combo Box: •"Value to Display" (if the data source is "Text/Variables"). •"Field to Display" (if the data source is a data file or a local database).
	"Returned Value"	Returns the "return" value you defined in the Combo Box: •"Value to Return" (if the data source is "Text/Variables"). •"Field to Return" (if the data source is a data file or a local database).
	"Enable"	Returns "Y" or "N".
	"Visible"	Returns "Y" or "N".
	"Number of Lines"	Returns the displayed number of lines in the Combo Box based on the filter provided in the "Query" tab (can be different from the number of lines in the data source).
Input List	"Record Number"	Considers the data source (a data file or a local database) and returns the selected record row number.
	"Index Number"	Considers the data displayed in the control (queried/selected elements within the data source - a data file or a local database) and returns the selected record row number.
	"Displayed Value"	Returns the "displayed" values you defined in the Input List: •"Value to Display" (if the data source is "Text/Variables"). •"Field to Display" (if the data source is a data file or a local database).
	"Returned Value"	Returns the "return" values you defined in the Input List: •"Value to Return" (if the data source is "Text/Variables"). •"Field to Return" (if the data source is a data file or a local database).
	"Enable"	Returns "Y" or "N".
	"Visible"	Returns "Y" or "N".
Input Cash	"Enable"	Returns "Y" or "N".
Input Cash	"Visible"	Returns "Y" or "N".
Button	"Enable"	Returns "Y" or "N".
Button	"Visible"	Returns "Y" or "N".
SoftKey	"Enable"	Returns "Y" or "N".
SoftKey	"Visible"	Returns "Y" or "N".
Menu Button	"Enable"	Returns "Y" or "N".
Menu Button	"Visible"	Returns "Y" or "N".
Menu Text	"Enable"	Returns "Y" or "N".
Menu Text	"Visible"	Returns "Y" or "N".
Signature Capture	"Enable"	Returns "Y" or "N".
Signature Capture	"Visible"	Returns "Y" or "N".
Display Image	"Enable"	Returns "Y" or "N".
Display Image	"Visible"	Returns "Y" or "N".
CheckBox	"Enable"	Returns "Y" or "N".
CheckBox	"Visible"	Returns "Y" or "N".
Radio Button	"Enable"	Returns "Y" or "N".
Radio Button	"Visible"	Returns "Y" or "N".
Gauge	"Enable"	Returns "Y" or "N".
Gauge	"Visible"	Returns "Y" or "N".
Slider	"Enable"	Returns "Y" or "N".
Slider	"Visible"	Returns "Y" or "N".
File Browse	"Record Number"	Considers the data source (a data file) and returns the selected/highlighted record number.
	"Index Number"	Considers the data displayed in the control (queried/selected elements within the data file) and returns the selected/highlighted record number.
	"Field Value"	Returns the value displayed in a field of the control's selected/highlighted record row (defined in the "Field Number" option). Ex: Consider that the source data file includes 3 rows and 3 columns ("A", "B" and "C") and that the control's selected/highlighted row is the third row. If you enter "2" in the "Field Number" option, you will retrieve the displayed value in the field which is located in the third row /second column - "B".
	"Enable"	Returns "Y" or "N".
	"Visible"	Returns "Y" or "N".
	"Number of Lines"	Returns the displayed number of lines in the File Browse based on the filter provided in the "Query" tab (can be different from the number of lines in the data source).
Advanced List Box	"Record Number"	Considers the data source (a data file or a local database) and returns the selected record/highlighted row number.
	"Index Number"	Considers the data displayed in the control (queried/selected elements within the data source - a data file or a local database) and returns the selected/highlighted record number.

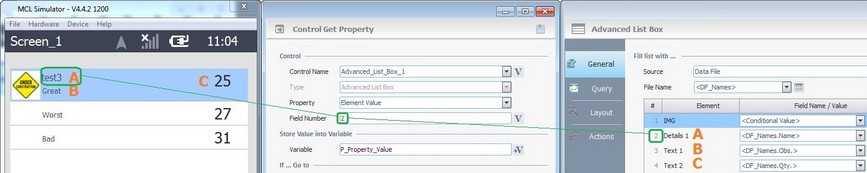

	"Element Value"	Returns the value displayed in a "Text"/"Button" element of the control's selected/highlighted record row (defined in the "Field Number" option). When defining the field number consider the control's style, specifically, the order of the existing elements. If the target field contains an "image" element, the returned value will consist of the path+image name. Ex: Consider that the control contains 4 rows and 3 "text" elements ("A", "B" and "C") and that the control's selected/highlighted row is the first. If you enter "2" in the "Field Number" option, you will retrieve the displayed value in the second element ("A") which is located in the second row.
	"Returned Value"	Returns the value of the field you defined in the Advanced List Box as "Field to Return".
	"Enable"	Returns "Y" or "N".
	"Visible"	Returns "Y" or "N".
	"Number of Lines"	Returns the displayed number of lines in the Advanced List Box based on the filter provided in the "Query" tab (can be different from the number of lines in the data source).
Grid	"Record Number"	Considers the data source (a data file or a local database) and returns the selected record row number.
	"Index Number"	Considers the data displayed in the control (queried/selected elements within the data source - a data file or a local database) and returns the selected record row number.
	"Highlighted Line"	Considers the data displayed in the control (queried/selected elements within the data source - a data file or a local database) and returns the current/highlighted record row number.
	"Field Value"	Returns the value displayed in a field of the control's selected record row (defined in the "Field Number" option). Ex: Consider that the source data file includes 3 rows and 3 columns ("A", "B" and "C") and that the control's selected row is the third row. If you enter "2" in the "Field Number" option, you will retrieve the displayed value in the field which is located in the third row /second column - "B".
	"Returned Value"	Returns the value of the field you defined in the Grid as "Field to Return".
	"Enable"	Returns "Y" or "N".
	"Visible"	Returns "Y" or "N".
	"Number of Lines"	Returns the displayed number of lines in the Grid based on the filter provided in the "Query" tab (can be different from the number of lines in the data source).

Use the right-click in MCL-Designer's input boxes to access some related options as well as the general "Cut", "Copy"; "Paste"; "Search" actions (active/inactive according to the current context).

Ex: If you right-click the "Variable" input box (included in a "Conversion's" properties window), you are provided with general editing/search actions and other more specific options such as "Variable Select" (see "Variable Select") ;"Variable Insert" (see "Variable Insert")"Insert Special Character" (see To Insert Special Characters into a Control's Text Input Field) and "Localization Select" (see Localization List).

If you right-click another input box, it nay provide other possibilities.
