How to Work with Processes > Working with the Branch Processes Group > Working with Go to (End of Action/Routine) Process

Process Purpose

The Go to process is used to redirect the application to pre-established destinations after the execution of an event, another process or as a result of previously specified criteria.

Since it is one of the most used processes, there are, usually, quick links at your disposal throughout the project.

MCL-Designer V4 provides you with a Go to with a specific destination - the Go to End of Action/Routine process - which is always used after having called a routine/procedure/event(action) with a Go to process.

This process is used to redirect the workflow to the end of that routine/procedure/event (action). This means the workflow will continue in the process that called it.

When you add a process, you are required to define its settings. This occurs in the process's properties window which is displayed automatically after having added the Go to process.

If any subsequent edition is required, double-click the process to open its properties window and enter the necessary modifications.

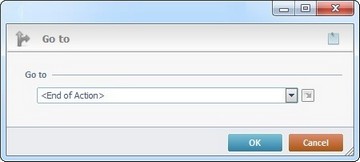

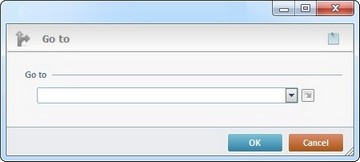

Go to Process Properties Window	Go to End of Action/Routine Process Properties Window

Go to	Go to
Select a destination from the options available in the drop-down list or click and select one from that list. See Detail of a window below.	There is a default destination depending on the context (<End of Action>, <End of Routine>, <End of Procedure>) but you can select another destination from the drop-down list. As an alternative, click and select a destination from that list. See Detail of a window below.

Detail of a window:

"S:Menu" is a screen included in the same program as the process.

"R:Routine_1" is a routine included in the same program as the process.

If required, use the icon on the upper right corner of the properties window:

Use the icon to attach any relevant notes to this process. Click it and enter your notes in the resulting text box. These notes will be displayed in the corresponding "Actions" tab or "Process" window (in the "Notes" field) and in the "Developer Report".

After filling in the required options, click to conclude or to abort the operation.

The added process is displayed in the corresponding "Actions" tab or "Process" window.

Use the right-click in MCL-Designer's input boxes to access some related options as well as the general "Cut", "Copy"; "Paste"; "Search" actions (active/inactive according to the current context).

Ex: If you right-click the "Variable" input box (included in a "Conversion's" properties window), you are provided with general editing/search actions and other more specific options such as "Variable Select" (see "Variable Select") ;"Variable Insert" (see "Variable Insert")"Insert Special Character" (see To Insert Special Characters into a Control's Text Input Field) and "Localization Select" (see Localization List).

If you right-click another input box, it nay provide other possibilities.
