How to Work with Processes > Working with the Print/Aux Processes Group

Process Purpose

The Receive Data process is used to define the structure of the data (type and receiving variables) to be received through a port, from an auxiliary device.

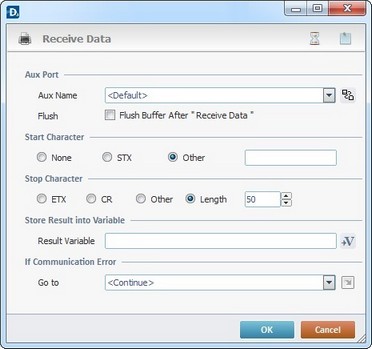

When you add a process, you are required to define its settings. This occurs in the process's properties window which is displayed automatically after having added the Receive Data process.

If any subsequent edition is required, double-click the process to open its properties window and enter the necessary modifications.

Proceed as follows:

Aux
Aux Name	Select the auxiliary device profile that will receive data from the drop-down list. If required, click to access an Aux profile list and create/edit an Aux profile. See Aux.
Flush Buffer After “Receive Data”	Check this option to empty the buffer before receiving the file.
Start Character
Select the “Start Character” that identifies the beginning of received data. Either check “None”, “STX” or “Other” (in this case, enter the intended character in the box that activates when "Other" is checked). See Abbreviations.
Stop Character
Select the “Stop Character” that identifies the end of received data. Either check “ETX", “CR”, “Other” (enter the intended character in the box that activates when "Other" is checked) or "Length (insert a number in the newly activated box). See Abbreviations.
Store Result into Variable
Result Variable	Click to select the variable that will receive the data. See To Select/Create a Variable.
If Communication Error
Go to	Select a target location from the drop-down list or the list, in case there is a communications error. See Detail of a window below.

Detail of a window:

"S:Menu" is a screen included in the same program as the process.

"R:Routine_1" is a routine included in the same program as the process.

Use the following recurring icons (located on the upper right corner of the process window) to execute specific operations:

•	Click to define a timeout. See To Define a Time Out.

•	Click to attach any relevant notes to this process. Click it and enter your notes in the resulting text box. These notes will be displayed in the corresponding "Actions" tab or "Process" window (in the "Notes" field) and in the "Developer Report".

After filling in the required options, click to conclude or to abort the operation.

The added process is displayed in the corresponding "Actions" tab or "Process" window.

Abbreviations

This process uses the following abbreviations:

Abbreviation	Meaning (hexadecimal)
STX	Start of Text (02 hex)
ETX	End of Text (03 hex)
CR	Carriage Return (0D hex)
LF	Line Feed (0A hex)

Use the right click in MCL-Designer's input boxes to access certain features regarding the input box's option as well as general actions such as "Copy"; "Paste"; "Search".

Ex: If you right-click the "Variable" input box (included in a "Conversion's" properties window), you are provided with the "Search..."and "Variable Select" options.

If you right-click another input box, it will provide other possibilities.
