Overview

The Pie Chart widget is meant to illustrate proportions, meaning, it can display multiple values in the form of a circular graphic which is very useful for visual comparison. This widget displays a pie type chart, its name and the corresponding caption.

Pie Chart Widget1

The Dashboard's Details Page

•To access a Pie Chart widget's settings you must open the details page of the dashboard that includes that widget.

•Since you must check the intended dashboard in the "Dashboard Management" page and click to open it, the details page is, automatically, set to edit mode.

•To add a Pie Chart widget to a dashboard, open the intended dashboard, click and select the "Pie Chart" widget from the listed widgets in the pop-up window. See To Add a Widget to a Dashboard.

•The editing of a widget's settings is, automatically, viewed in the dashboard's Preview Section (to the right).

The following step-by-step focuses on the viewing/editing of a Pie Chart widget.

To View/Edit the Pie Chart Widget's Settings

If you access a widget, edit its settings but do NOT save those changes before exiting, the next time you open the dashboard, the page will display a message warning you that there are unsaved changes.

Click "Save" to ensure that the previous changes are not lost or "Cancel" to discard those previously unsaved changes and start fresh.

Dashboard Message_Unsaved Changes

Step-by-Step

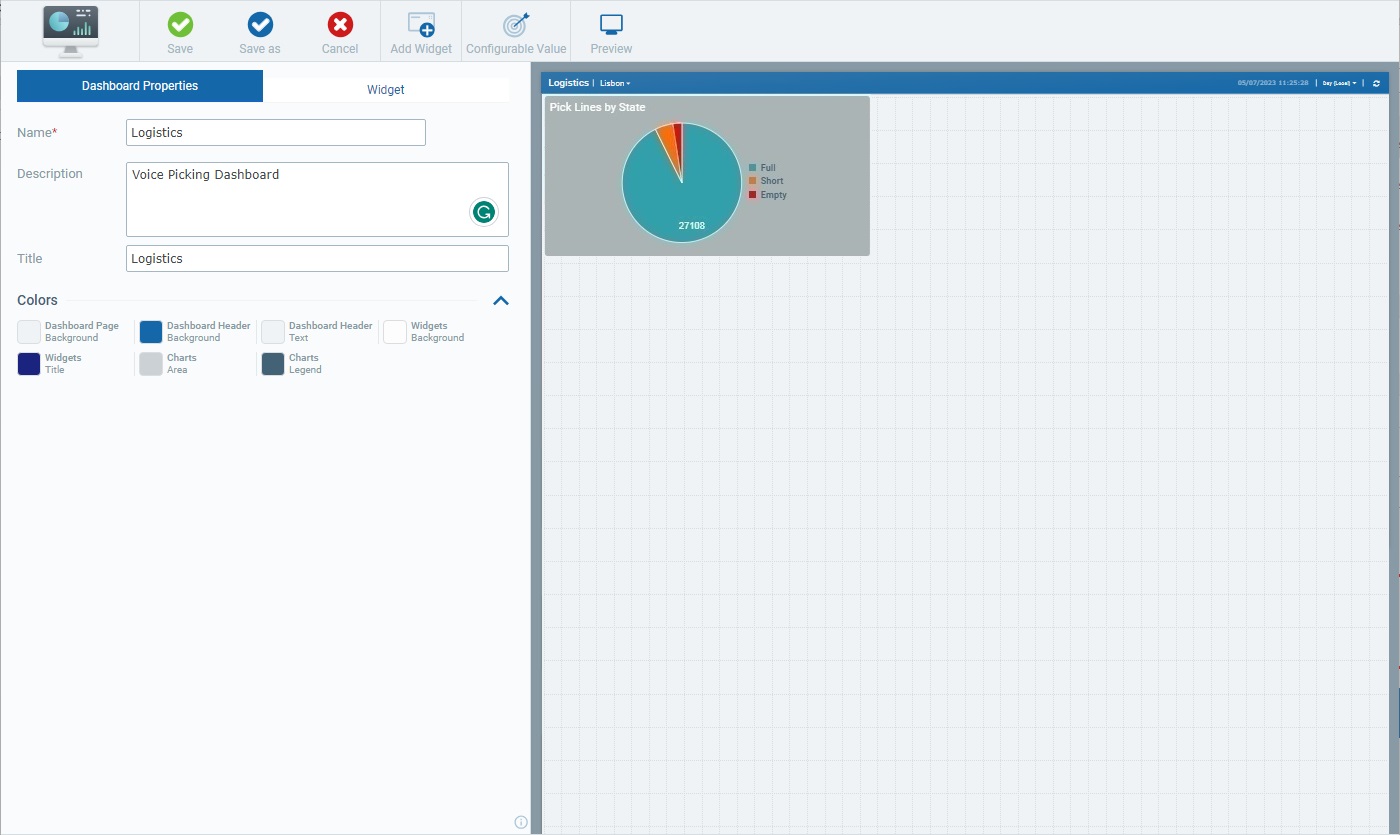

1. Open the details page of the dashboard that contains a Pie Chart widget.

Widget Pie Chart_Details Page_1_AD

A dashboard details page includes 2 main tabs:

•The "Dashboard Properties" tab that relates to the settings of the dashboard itself. See Dashboard Details.

•The "Widget" tab which, once you select a widget in the Preview Section, displays the settings of that selected widget.

When you open a dashboard's details page, the "Dashboard Properties" tab is open by default.

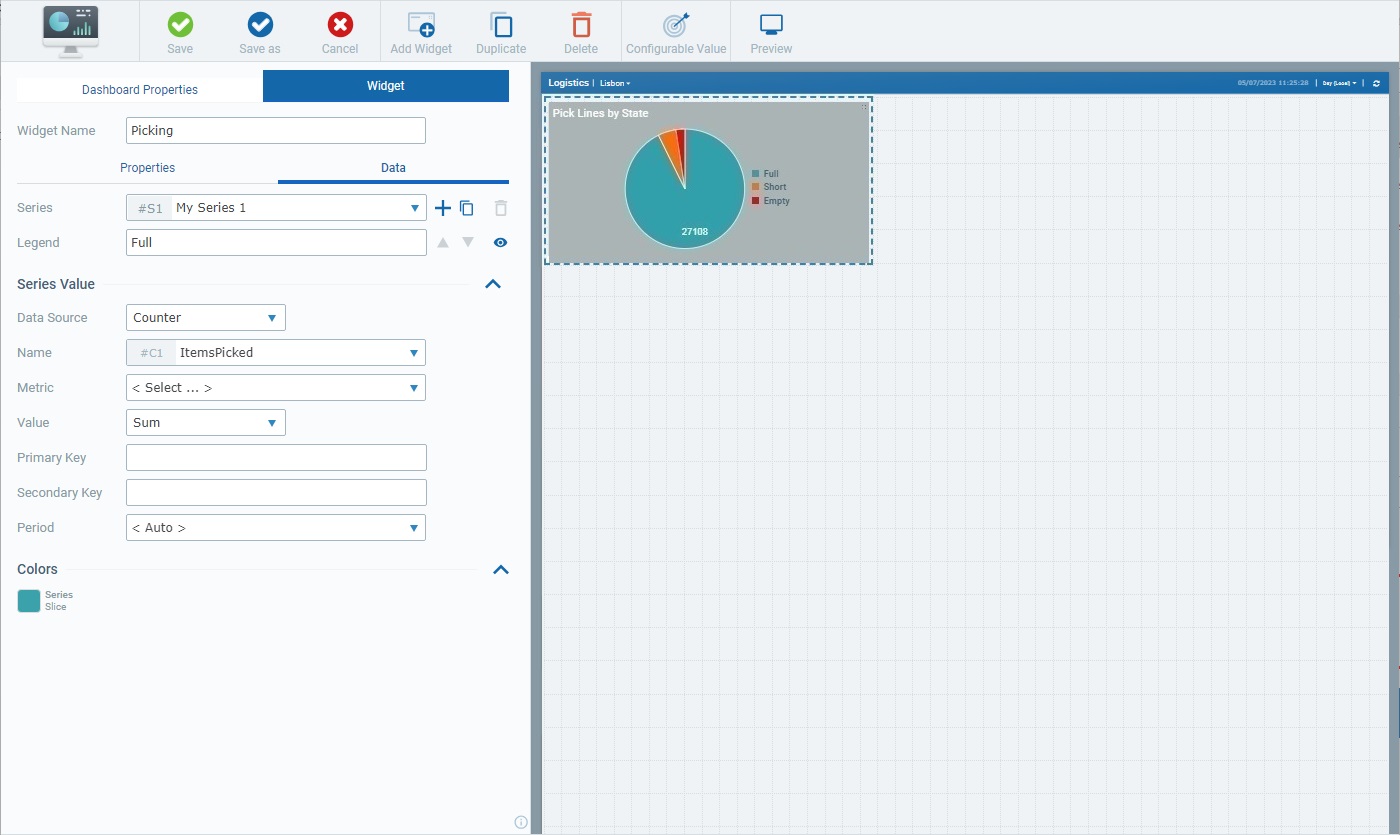

2. Click the Pie Chart widget in the Preview Section.

Widget Pie Chart_Details Page_2_AD

Selecting the Pie Chart widget, automatically, opens the "Widget" tab with the corresponding settings.

The "Widget" tab includes a common section (related to the Pie Chart widget's name) and 2 child tabs - "Properties" and "Data".

The first option available in the "Widget" tab is "Widget Name". This name identifies the widget in the MCL-Mobility Platform but it is NOT displayed by the widget itself.

The system always suggests a name for an added widget - it is a combination of the widget type and a number (ex: "Pie Chart 1" for the first Pie Chart widget you add to the dashboard, "Pie Chart 2" for the second one and so on).

Pie Chart Name Default

3. If required, enter/edit the name of the Pie Chart widget.

We recommend you rename the widget when you add it, in the "Widget Name" field, in a way that relates to the data it is meant to display.

Pie Chart Name_Picking

4. Open each child tab ("Properties" and "Data") and view/fill in the available options as necessary.

"Properties" tab

The "Properties" tab is used to define the style of the widget.

Several sections are displayed as accordions - click the corresponding arrow (to the right) to expand/collapse the content, as needed.

Widget Pie Chart_Properties Tab

This tab provides the following information:

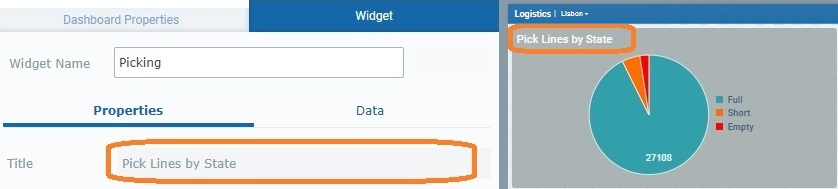

Title	This title is displayed in the widget's upper left corner. This does NOT identify the widget (that is defined in the "Widget Name" field). There is a default suggestion ("My title") but we recommend a widget title related to the displayed data/values. Define/edit the widget's title.
Value
Display as	It is possible to display the data of this widget's series as a percentage ("Percent" option) or a value ("Value" option). Select the best display for the Pie Chart's values. If you select "None", the corresponding series will NOT reference any value. "Display as: Value" example: "Display as: Percent" example:
Styles
Legend	The position of the widget's caption/legend - it can be placed at the bottom ("Bottom") or to the right ("Right") of the pie chart. Maintain or select another position for the caption. "Legend: Right" example: "Legend: Bottom" example:
Colors
Widget Background	The color defined for the widget's background. To choose a different color, click the corresponding box to open a "Colors" pop-up window and define a new color. See Details on the "Colors" pop-up window.
Widget Title	The color defined for the widget's title which you defined in the "Title" field above and will be displayed in the widget's upper left corner. Maintain the color or choose a different one by clicking the corresponding box to open a "Colors" pop-up window and defining the new color. See Details on the "Colors" pop-up window.
Chart Area	The color defined for the widget's empty area (=when there is no data). Maintain or choose a different color by clicking the corresponding box to open a "Colors" pop-up window and defining a new color. See Details on the "Colors" pop-up window.
Chart Legend	The color defined for the widget's captions. Maintain or choose a different color by clicking the corresponding box to open a "Colors" pop-up window and defining the new color. See Details on the "Colors" pop-up window.
Filters
Period	The time resolution for the data that is displayed in the Pie Chart widget which can be aggregated/grouped by "Hour", "Day (UTC)", "Day (Local)", "Week (Day (UTC))", "Week (Day (Local))" or "Month". In addition to these default time frames, the drop-down may also include time periods from a Time Period profile (= a profile you can create with specific time periods representing specific working hours/shifts so the data sent by your devices can be aggregated according to those working hours/shifts). See Profiles. If you have a Time Period profile in mind and its time periods are NOT listed here, go to the "Account Details" sub-module (included in the "Set Up" module), open the "Time Period" tab and check which profile is defined and edit it, if necessary. You can also access the target site's details page ("Set Up" module > "Sites" sub-module > <target site> > "Site Details" page) and check what is defined in its "Time Period" tab. Selecting the "Auto" option ensures that the widget's displayed data is aggregated/grouped to the dashboard's own time resolution (which is set by the related resolution drop-drown in the right upper corner). The defining of a specific resolution for the widget means that the displayed values will NOT be affected by the dashboard's resolution. For instance, if you have a widget with a "Day (Local)" resolution and you set the dashboard's resolution, in the related drop-drown (in the upper right corner) to "Month", that widget will NOT change its values, it will continue to show values aggregated/grouped by "Day (Local)". ONLY the widgets with an "Auto" defined period will refresh their values/adopt the newly defined resolution. Select the intended time period from the drop-down.

"Data" tab

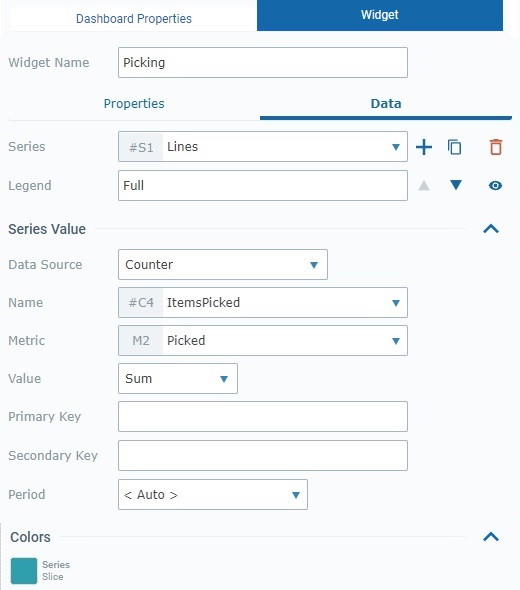

The "Data" tab handles the widget's multiple series (a series = a set of data represented in a widget's chart/table). This tab allows you to create the necessary series, select the value each one should display and its source and you can also customize its style (ex: define a series' color).

Certain sections are displayed as accordions - simply click the corresponding arrow to the right to expand/collapse the content, as needed.

Widget Pie Chart_Data Tab_Edit Mode

This tab provides the following information:

Series

The data to display in this widget is grouped into series - each "pie slice" represents a series.

The corresponding internal reference for each series is "#S <number>" (ex: "#S1") - it is attributed by the system and CANNOT be edited. It can be used, for instance, in formulas, when you want to identify a series. Ex: A formula defined in a series with a "Static/Formula" data source - "=#S7-100".

A Pie Chart widget can accommodate up to 20 series.

Use the attached buttons to add, duplicate or delete series:

•Click to add more series (maximum of 20 series per widget).

▪The default name suggestion for each series is "My Series <number>" (ex: "My Series 1") but we recommend defining a name that relates to the value it refers to.

▪When you add a series, the newly added series comes to focus in this box.

▪Fill in the related options to define its properties (data source, resolution, color, etc.).

•Click to duplicate the selected series.

▪The duplicate's name will be the name of the original plus "_copy" - the duplicate becomes the selected series in this box.

▪Rename the duplicate so it illustrates the value it will represent and fill in/review the related options to define its properties (data source, resolution, color, etc.).

Do NOT forget that you can only add/duplicate up to 20 series.

•Click to delete the selected series.

▪This option is ONLY enabled once you have more than one series (it is NOT possible to delete all the series of a widget).

The existing series are organized into a list. If required, use the buttons to reposition the selected series above or below another series. The or signs will be active/inactive depending on the selected series' current position (ex: if the selected series is in the first position, only the will be active).

If required, use the button to hide the selected series and corresponding legend:

•Click to make the series' caption invisible in the widget's display - this button will be replaced with ;

•Click to turn the caption visible in the widget's display again - this button will return to .

If you want to edit a series, make sure it is selected in the drop-down before proceeding with your review/edition. The other options/values in the "Data" child tab always relate to the selected series in this drop-down.

Legend

This refers to the series' caption - it represents the name of the series to be displayed in the widget.

Enter/edit the selected series' caption, as required.

Keeping this field empty means the widget will display the series' name (defined in the "Series" option).

Series Value

Data Source

This field references the source of the data to be represented by the currently selected series (in the "Series" option).

The Pie Chart widget allows for 3 data source types:

"Counter"

A counter is an MCL-Mobility Platform entity that aggregates specific data (statistic results of processed metric values) sent by MCL applications/paired devices. See Counters.

Having this data source means the series presents a specific value, from a specific counter. Once you select this data source type, you enable the corresponding options:

Widget_Counter Data Source_Edit Content

For details on how to fill in/edit the related fields, see Data Source: Counter.

"Static/Formula"

This data source allows you to enter a numeric value directly OR use mathematical formula to have its result represented by the selected series.

Selecting this data source type activates the following option:

Widget_Static_Formula Data Source_Edit Content

For details on how to fill in/edit the corresponding field, see Data Source: Static/Formula.

"Configurable Value"

This data source refers to a value that has been configured for a specific purpose, as a sort of KPI (Key Performance Indicator). The series shows that value.

The following option becomes available when you select this source type:

Widget_Config Value Data Source_Edit Content

To fill in/edit this field, see Data Source: Configurable Value.

The "Value" drop-down is ONLY available if there are already configured values for the current dashboard. If you have a button, instead, it means you must create "configurable values" so you can apply them to this widget series.

As an alternative, access the "Dashboard's Configurable Values" pop-up window by clicking the button, available in the header of the dashboard's details page.

Period

Refers to the time resolution for the data of the current series, meaning, it defines how the data is aggregated/grouped - "Hour", "Day (UTC)", "Day (Local)", "Week (Day (UTC))", "Week (Day (Local))" or "Month".

Selecting the "Auto" option ensures that each series's displayed data is aggregated/grouped according to the resolution defined for the widget and for the dashboard. In other words, when running the widget, the series with a "Period: Auto" setting will have its data aggregated/grouped according to the resolution in the widget (in the "Properties" tab) and, ultimately, to what you select for the dashboard (using the drop-down located on the dashboard's upper right corner).

In addition to these default time frames and "Auto", the drop-down may also include time periods from a Time Period profile (= a profile you can create with specific time periods representing specific working hours/shifts so the data sent by your devices can be aggregated according to those working hours/shifts). See Profiles.

If you have a Time Period profile in mind and its time periods are NOT listed here, go to the "Account Details" sub-module (included in the "Set Up" module), open the "Time Period" tab and check which profile is defined and edit it, if necessary.

You can also access the target site's details page ("Set Up" module > "Sites" sub-module > <target site> > "Site Details" page) and check what is defined in its "Time Period" tab.

The defining of a specific resolution for the widget means that the displayed values will NOT be affected by the dashboard's resolution. For instance, if you have a widget with a "Day (Local)" resolution and you set the dashboard's resolution, in the related drop-drown (in the upper right corner) to "Month", that widget will NOT change its values, it will continue to show values aggregated/grouped by "Day (Local)". ONLY the widgets with an "Auto" defined period will refresh their values/adopt the newly defined resolution.

Select the intended time period from the drop-down.

Colors

Series Slice

This option relates to the color of the currently selected series. Visually speaking, it is the color of the corresponding pie chart's "slice" (ex: blue color for the "Full" series slice).

Widget Pie Chart_Color Series Slice

Click the box to open the "Colors" window and define the intended color for the selected series (in this case, you are defining a "pie slice" color).

See Details on the "Colors" pop-up window.

5. Once you are done editing, click to ensure that your changes are applied.

If you exit this page (the dashboard's details page) without saving your edition, the "Auto-Save" mechanism keeps these changes for some time. You can save them the next time you access the dashboard - there is a message to remind you that there are unsaved changes. See The Dashboard's "Save" Feature.
