Working with Call Global Proc Process
|
Working with Call Global Proc Process |
|
Process Purpose
The Call Global Proc process is used to call a Global Procedure.

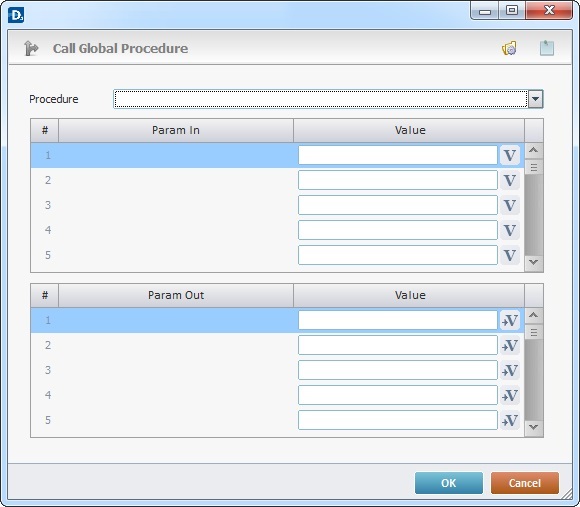

When you add a process, you are required to define its settings. This occurs in the process's properties window which is displayed automatically after having added the Call Global Proc process.
If any subsequent edition is required, double-click the process to open its properties window and enter the necessary modifications.
Fill in/view the following options:
Call Global Procedure |
|
Procedure |
Select the global procedure to be called. The drop-down list provides all the global procedures that exist in the project. |
Param In column |
This column displays the input parameters established for the global procedure (in the "Param In" tab). See Global Procedures. |
Value column |
Click |
Param Out column |
This column displays the output parameters established for the global procedure (in the " Param Out" tab). See Global Procedures. |
Value column |
Click |
Use the editing icons to the right of the table to move the rows up and down and to delete or add more rows.
If required, use the icons on the upper right corner of the properties window:
Use this icon to create a new global procedure. See Global Procedures.
Use the icon to attach any relevant notes to this process. Click it and enter your notes in the resulting text box. These notes will be displayed in the corresponding "Actions" tab or "Process" window (in the "Notes" field) and in the "Developer Report".
After filling in the required options, click
to conclude or
to abort the operation.
The added process is displayed in the corresponding "Actions" tab or "Process" window.
Use the right click in MCL-Designer's input boxes to access certain features regarding the input box's option as well as general actions such as "Copy"; "Paste"; "Search".
Ex: If you right-click the "Variable" input box (included in a "Conversion's" properties window), you are provided with the "Search..."and "Variable Select" options.
If you right-click another input box, it will provide other possibilities.
to select the variable with the value to be sent on each input parameter.
to select the variable with the value to be received on each output parameter.
