Process Purpose
The Trigonometry process is used to perform trigonometric calculations (using radians) and conversions based on values contained in variables (ex: to find a number's arctangent, the conversion of a value from radians into degrees, etc.). The result is stored in a variable.
When you add a process, you are required to define its settings. This occurs in the process's properties window which is displayed automatically after having added the Trigonometry process.
If any subsequent edition is required, double-click the process to open its properties window and enter the necessary modifications.
Fill in the following options:
Source Variable |
|
Variable |
Click |
Type of Operation |
|
Operation |

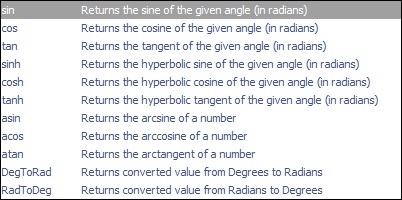

Select the type of trigonometric calculation from the drop down list:
|
Store Result into Variable |
|
Result Variable |
Click |
If required, use the icon on the upper right corner of the properties window:
Use the icon to attach any relevant notes to this process. Click it and enter your notes in the resulting text box. These notes will be displayed in the corresponding "Actions" tab or "Process" window (in the "Notes" field) and in the "Developer Report".
After filling in the required options, click
to conclude or
to abort the operation.
The added process is displayed in the corresponding "Actions" tab or "Process" window.
Use the right click in MCL-Designer's input boxes to access certain features regarding the input box's option as well as general actions such as "Copy"; "Search" or "Variable Select".
Ex: If you right-click the "Variable" input box (included in a "Conversion's" properties window), you are provided with the "Variable Select", "Search..." and "Localization Select" options.
If you right-click another input box, it will provide other possibilities.
to select the variable that contains the value(s)for the trigonometry calculation. See
to define the variable that will receive the trigonometric result. See
