Process Purpose
The Take Picture process allows for the use of the device's photo camera to take a picture/capture an image.

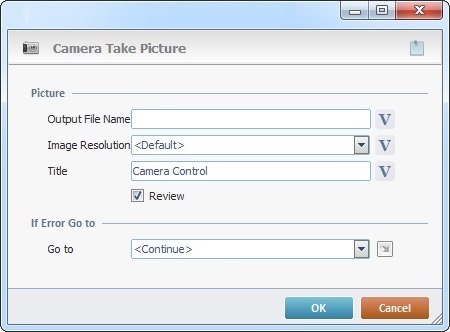

When you add a process, you are required to define its settings. This occurs in the process's properties window which is displayed automatically after having added the Take Picture process.
If any subsequent edition is required, double-click the process to open its properties window and enter the necessary modifications.
Fill in the following options:
Picture |
|
Output File Name |
Define the name for the image file or click
|
Image Resolution |
Select the desired resolution for the image from the drop down list or click |
Title |
Maintain the default title. It represents the "Camera Capture's" dialog box within the device. |
Review |
Check this option to enable the viewing, in the device's screen, of the picture you take. It allows you to accept or reject the picture that was taken or repeat (take another picture). See The Review Option in the Device. |
If Error Go to |
|
Go to |
Select a target location from the drop-down or |
Detail of a
window:
"S:Menu" is a screen included in the same program as the process.
"R:Routine_1" is a routine included in the same program as the process.
If required, click
to attach any relevant notes to this process. Click it and enter your notes in the resulting text box. These notes will be displayed in the corresponding "Actions" tab or "Process" window (in the "Notes" field) and in the "Developer Report".
After filling in the required options, click
to conclude or
to abort the operation.
The added process is displayed in the corresponding "Actions" tab or "Process" window.
You can use relative paths to refer the file(s) you want to use in your project. See Working with Aliases.
Use the right click in MCL-Designer's input boxes to access certain features regarding the input box's option as well as general actions such as "Copy"; "Paste"; "Search".
Ex: If you right-click the "Variable" input box (included in a "Conversion's" properties window), you are provided with the "Search..."and "Variable Select" options.
If you right-click another input box, it will provide other possibilities.
The "Review" Option in the Device

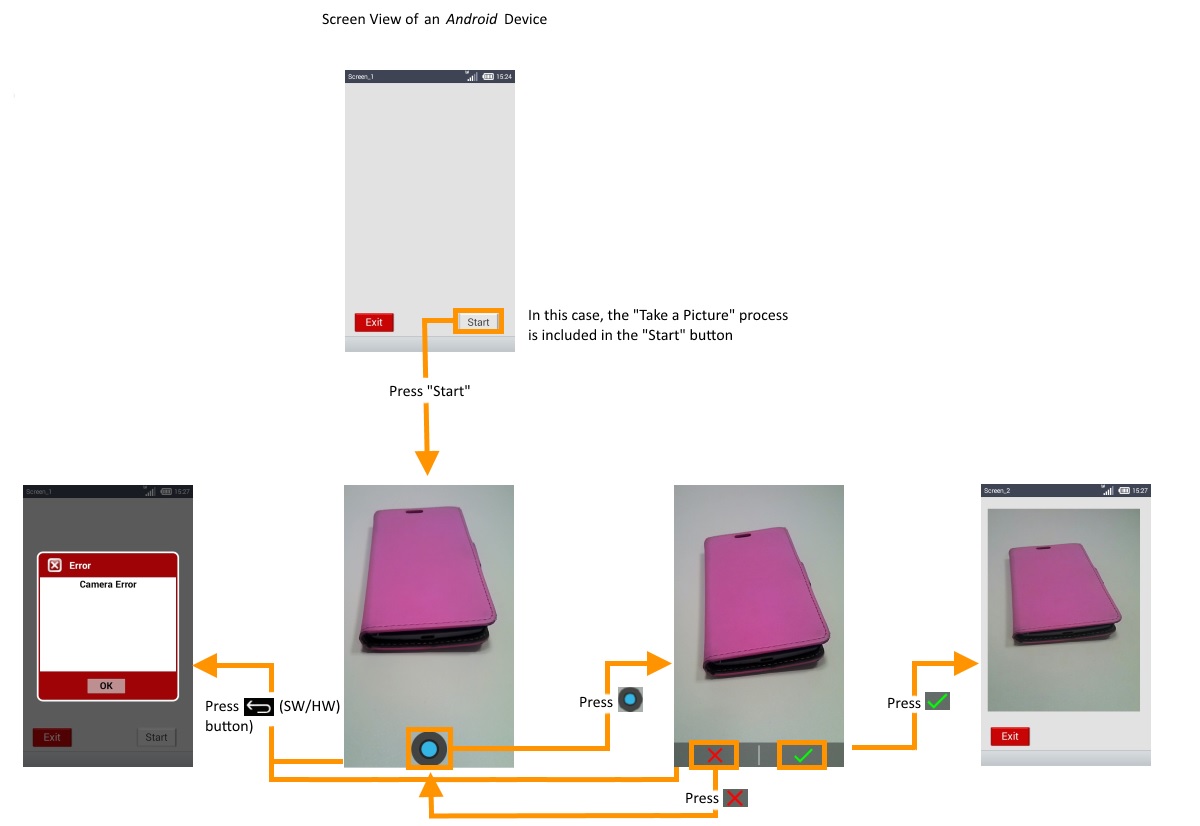

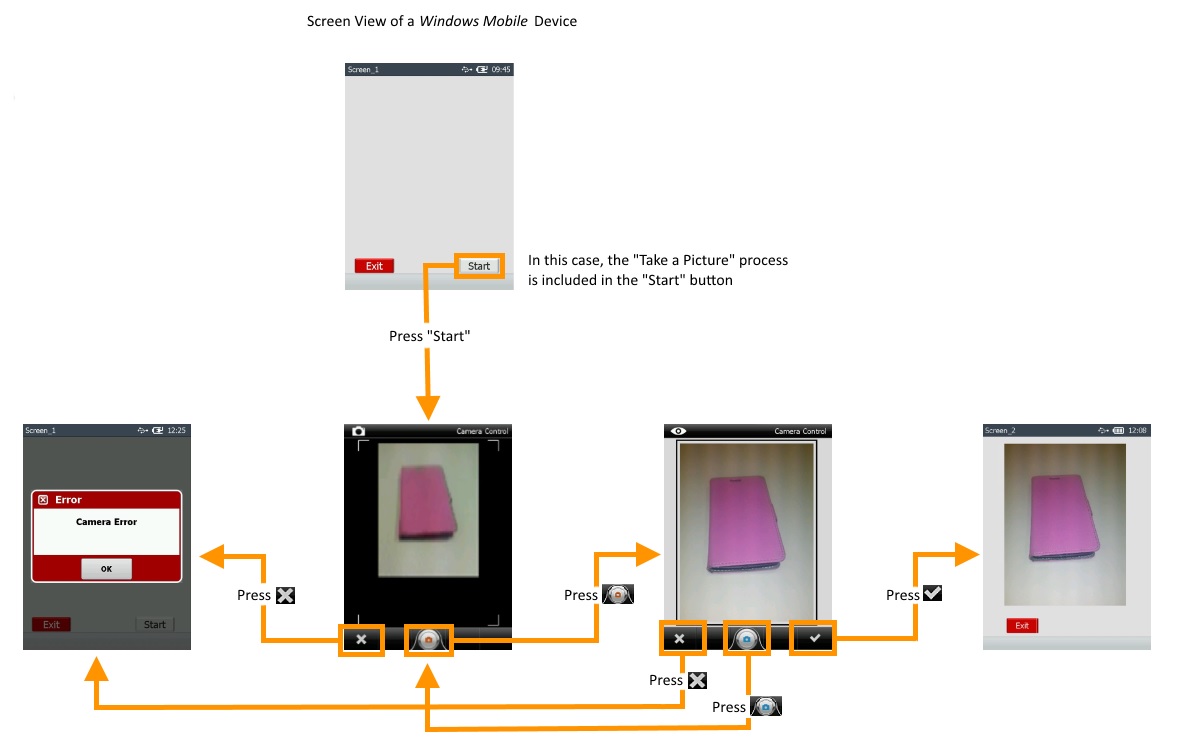

Below is an example of what the operator will view and what he can execute when handling a WM or an Android device, if the "Review" option is checked:
and select a variable with that value. See
Do NOT use special characters. A file name should only contain alphabetic characters, numbers, and the underscore “_” character (the underscore character is commonly, used to indicate a space).
