Process Purpose



The Checksum process is used to compute the checksum of the intended value. The result is stored in a variable.

Check the provided Checksum examples at the end of the topic.

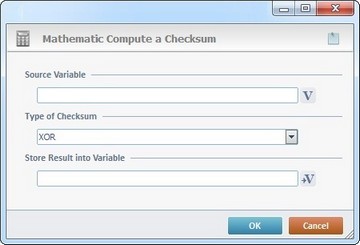

When you add a process, you are required to define its settings. This occurs in the process's properties window which is displayed automatically after having added the Checksum process.

If any subsequent edition is required, double-click the process to open its properties window and enter the necessary modifications.





Fill in the following options:





If required, use the icon on the upper right corner of the properties window:



Use the icon to attach any relevant notes to this process. Click it and enter your notes in the resulting text box. These notes will be displayed in the corresponding "Actions" tab or "Process" window (in the "Notes" field) and in the "Developer Report".



After filling in the required options, click to conclude or to abort the operation.



The added process is displayed in the corresponding "Actions" tab or "Process" window.





Use the right-click in MCL-Designer's input boxes to access some related options as well as the general "Cut", "Copy"; "Paste"; "Search" actions (active/inactive according to the current context).

Ex: If you right-click the "Variable" input box (included in a "Conversion's" properties window), you are provided with general editing/search actions and other more specific options such as "Variable Select" (see "Variable Select") ;"Variable Insert" (see "Variable Insert")"Insert Special Character" (see To Insert Special Characters into a Control's Text Input Field) and "Localization Select" (see Localization List).

If you right-click another input box, it nay provide other possibilities.
