Working with Delete File on Host Process |

|
Working with Delete File on Host Process
|
Working with Delete File on Host Process |
|
Process Purpose
The Delete File on Host process is used to delete a file in a specific Host server.

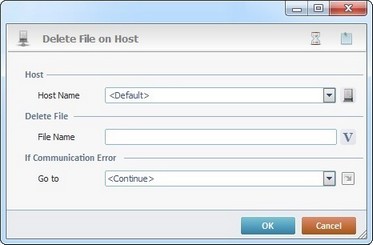

When you add a process, you are required to define its settings. This occurs in the process's properties window which is displayed automatically after having added the Delete File on Host process.
If any subsequent edition is required, double-click the process to open its properties window and enter the necessary modifications.
Proceed as follows:
Host |
|
Host Name |
Select a host profile from the drop-down list or click See To Create a Host Profile or To Edit a Host Profile or The <Default> Host Profile. |
Delete File |
|
File Name |
Enter the name of the remote file to delete or click |
If Communication Error |
|
Go to |
Select a target location from the drop-down list or the |
Detail of a
window:
"S:Menu" is a screen included in the same program as the process.
"R:Routine_1" is a routine included in the same program as the process.
Use the following recurring icons (located on the upper right corner of the properties window) to execute specific operations:
•Click
to define a time out. See Time Out.
•Click
to attach any relevant notes to this process. Click it and enter your notes in the resulting text box. These notes will be displayed in the corresponding "Actions" tab or "Process" window (in the "Notes" field) and in the "Developer Report".
After filling in the required options, click
to conclude or
to abort the operation.
The added process is displayed in the corresponding "Actions" tab or "Process" window.
You can use relative paths to refer the file(s) you want to use in your project. See Working with Aliases.
Use the right-click in MCL-Designer's input boxes to access some related options as well as the general "Cut", "Copy"; "Paste"; "Search" actions (active/inactive according to the current context).
Ex: If you right-click the "Variable" input box (included in a "Conversion's" properties window), you are provided with general editing/search actions and other more specific options such as "Variable Select" (see "Variable Select") ;"Variable Insert" (see "Variable Insert")"Insert Special Character" (see To Insert Special Characters into a Control's Text Input Field) and "Localization Select" (see Localization List).
If you right-click another input box, it nay provide other possibilities.
to create a new host profile or edit an existing one.
and select a variable with that value. See
