How to Work with Processes > Working with the Platform Services Processes Group

Process Purpose

This is a Filebox Service related process.

The Inbox File Check process is used to check for a specific file included in the device’s Inbox (which is a specific area included in the device's Filebox).

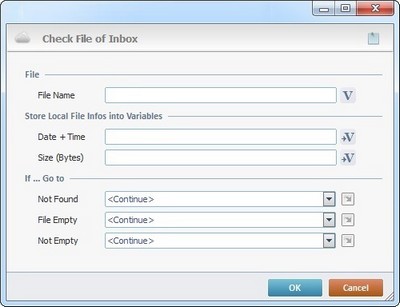

The process's properties window is displayed automatically after having added the Inbox File Check process.

If any subsequent edition is required, double-click the process to open its properties window and enter the necessary modifications.

Fill in the following options:

File
File Name	Enter the name of the file to check or click to select the variable with the intended value.
Store Local File Infos into Variables
Date + Time	Click to define the variable that receives the "Date + Time" information.
Size (bytes)	Click to define the variable that receives the "Size (Bytes)" information.
If ... Go to
Not Found	Select a target location from the drop-down or list, in case a file "Not Found" occurs. See Detail of a window below.
File Empty	Select a target location from the drop-down or list, in case a "File Empty" occurs. See Detail of a window below.
Not Empty	Select a target location from the drop-down or list, in case a file "Not Empty" occurs. See Detail of a window below.

Detail of a window:

"S:Menu" is a screen included in the same program as the process.

"R:Routine_1" is a routine included in the same program as the process.

If required, use the following recurring icon (located on the upper right corner of the properties window):

•To add pertinent information about this process, click and enter it in the resulting window. The added information is displayed in the "Notes" field of the "Actions" tab in which the process is inserted in.

After filling in the required options, click to conclude or to abort the operation.

The added process is displayed in the corresponding "Actions" tab or "Process" window.

When creating a file, we recommend you use the related best practices (ex: do NOT use special characters).

For more detailed information, register/log in to our MCL Support Center and access MCL's Knowledge Base ("File Name Best Practices").

Use the right-click in MCL-Designer's input boxes to access some related options as well as the general "Cut", "Copy"; "Paste"; "Search" actions (active/inactive according to the current context).

Ex: If you right-click the "Variable" input box (included in a "Conversion's" properties window), you are provided with general editing/search actions and other more specific options such as "Variable Select" (see "Variable Select") ;"Variable Insert" (see "Variable Insert")"Insert Special Character" (see To Insert Special Characters into a Control's Text Input Field) and "Localization Select" (see Localization List).

If you right-click another input box, it nay provide other possibilities.
