Managing a Site > External Systems > Development Stations

Overview

MCL-Designer V4 is a software development tool that allows you to create applications to be used on devices. In order to manage these applications at platform level, MCL-Designer V4 must be integrated into MCL-Mobility Platform, via a subscription that must include an "MCL-Designer product". (Refer to the MCL-Designer V4 User Guide for MCL-Designer V4 detailed subscription activation steps.)

Once these steps have been followed, you will have the necessary information to add a development station to the site.

Step-by-step

1. Click External Systems Button , in the Control Panel section, and, in the resulting row, select Development Stations Sub module Button to open the "Development Station Management" page.

Site Development Stations Page

2. Click Add Button1 and open the "Add Development Station" page.

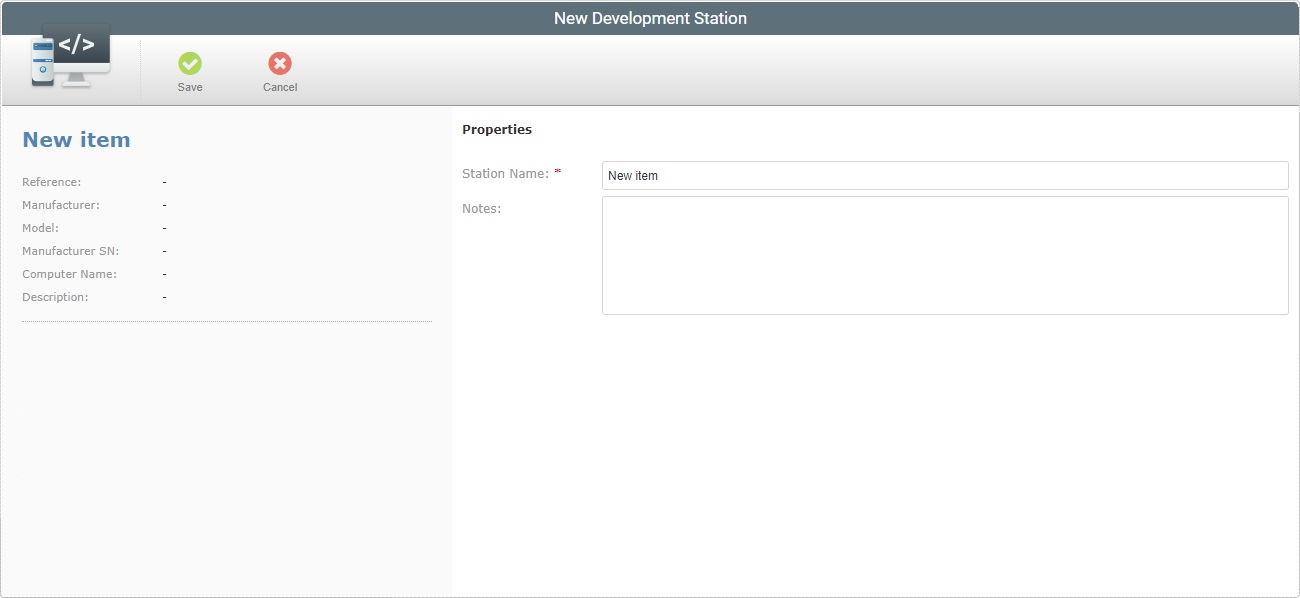

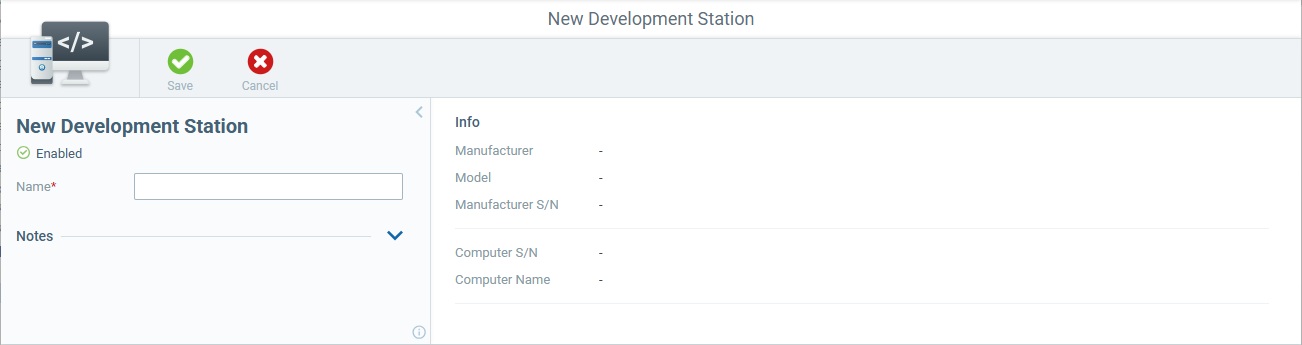

Site Add Development Station Page Edit

3. Fill in the following fields. The fields marked with an asterisk are mandatory.

Name *

Enter the name of your development station.

We recommend you avoid special characters and consider the related best practices when you define a development station's name:

•Use alphabetic/numeric characters (a-z; A-Z; 0-9)

•Underscore and/or dash characters are allowed

•Always start the entity's name with an alphabetic character

Notes

Enter any notes you find relevant regarding your development station.

4. Once you have filled in the required fields, click to conclude the operation.

Note that when a Development Station is created/added in the MCL-Mobility Platform, a pairing key is, automatically, generated and it is used to pair an MCL-Designer V4 instance in a PC to that Development Station in the MCL-Mobility Platform. That pairing key is provided by the MCL-Mobility Platform in a file format. See To Pair the Development Station.
