Object Purpose

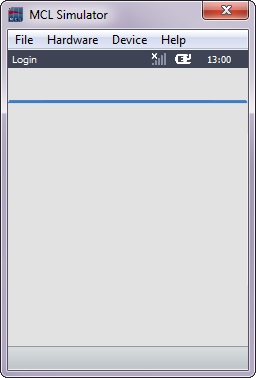

This object offers a visual effect to a screen. Namely, it can stress a section of the screen.



Add a line to a screen by dragging a "Display Line" object from the top section of the "Control" tab OR  the "Preview" section onto the screen.



Step-by-step



1. Drag the object onto the screen:



•If dragged from the "Control" tab, the object will assume the default style. (See Set Default.)



•If dragged from the "Style Preview Section", it will assume that particular style.

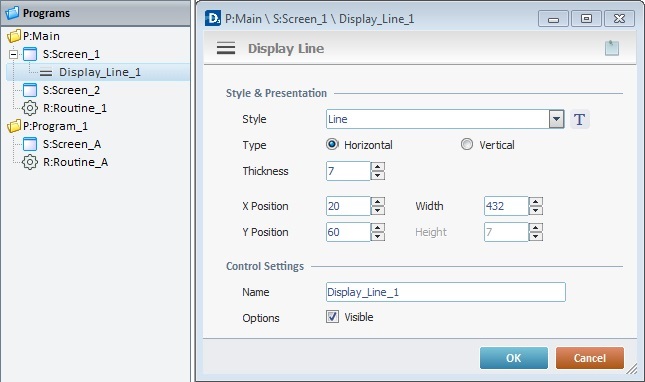

2. Now, double-click the selected object on the screen OR  the tree view to open the "Properties" window.





3. Define the object's style by selecting an option available in the drop-down list or by clicking . See Editing and Creating Styles and Editing and Creating the "Display Line" Style.



4. Select the type of line (Horizontal or Vertical).



5. Select the thickness of the object in the screen.



6. Specify the object's position, within the screen, by providing the "X" and "Y" coordinates as well as "Width" value OR  maintain the given values.



Detail of Position values





7. In the "Control Settings" section, attribute a name to the object. This name is displayed in the tree view.



8. Check the "Visible" option to make sure it is displayed on the device's screen.



Use the right click in MCL-Designer's input boxes to access certain features regarding the input box's option as well as general actions such as "Copy"; "Paste"; "Search".

Ex: If you right-click the "Text Data" input box (included in a "Display Text" properties window), you are provided with the "Paste", "Search..." and "Variable Select" options.

If you right-click any other input box, it will provide other possibilities.







If required, click (which is located on the upper right corner of the "properties" window) to enter any relevant notes regarding this object. The entered information is displayed in the "Developer report". See Report.





9. To apply these choices, click .



The "Display Line" object has been successfully added to the screen.







If any subsequent edition of the object's properties is required, double-click the "Display Line" OR  select " 'Display Line' Properties" (in its right-click menu) to open the properties window.
