Managing the Account > Subscriptions

Overview

The "Subscription Details" page provides more detailed information regarding the subscription, existing add-ons and how the services/products are distributed by the sites included in the account.

The subscription/add-on details are for viewing only, they are NOT editable. The "Details" tab is open by default.

You can access "the "Subscription Details" page by clicking the subscription (displayed in light blue) in the "Subscriptions" section of the Admin Dashboard.

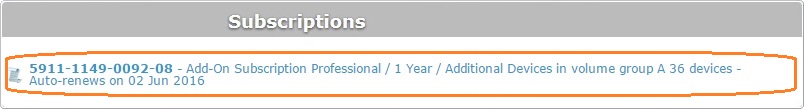

Admin Dashboard Subscriptions_a

by clicking the subscription code (displayed in light blue) in the "Subscriptions" page.

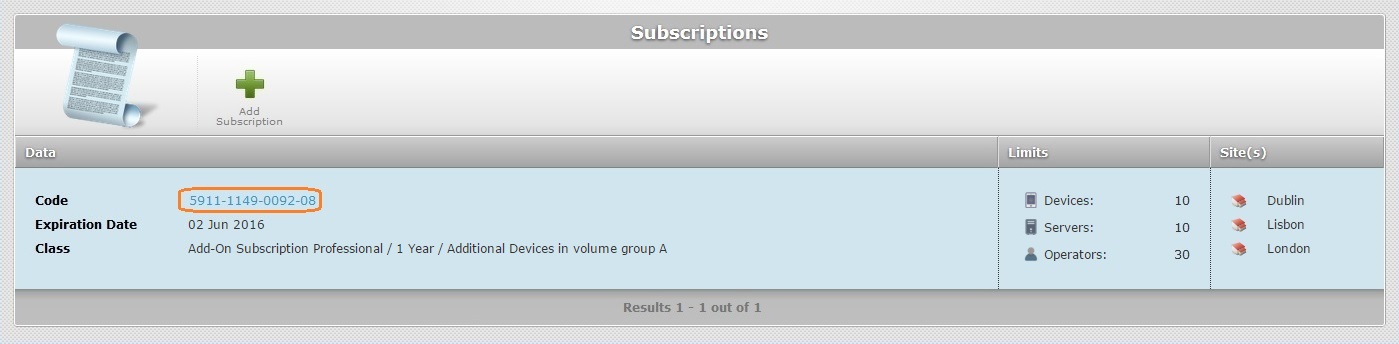

Subscription page_a

This is the "Subscription Details" page. It consists of two tabs (Details and Sites) and a "left panel".

Subscription Details Products Tab

Details tab

Subscription Details Products Tab

This tab (open by default) displays the following information:

Master Subscription
Code	The subscription's identification number.
Class	The subscription's content description.
Devices	The number of subscribed devices.
Servers	The number of subscribed servers.
Operators	The number of subscribed operators.
(Column to the right)	The subscribed services and products.

If there are any Add-ons, the corresponding "Add-ons" table will display the same type of information as the one contained in the "Master Subscription" table.

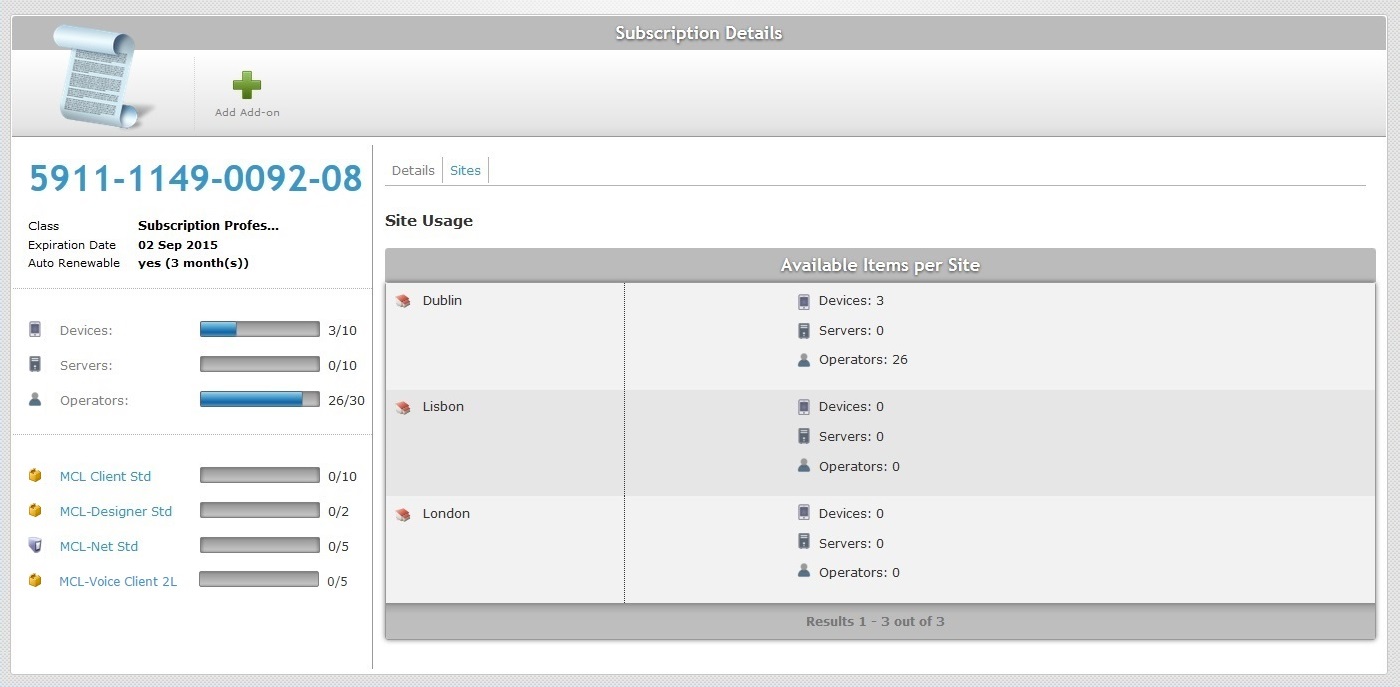

Sites tab

Subscription Details Sites Tab

This tab displays the items being used (devices, servers and operators) and their distribution by the sites included in the account.

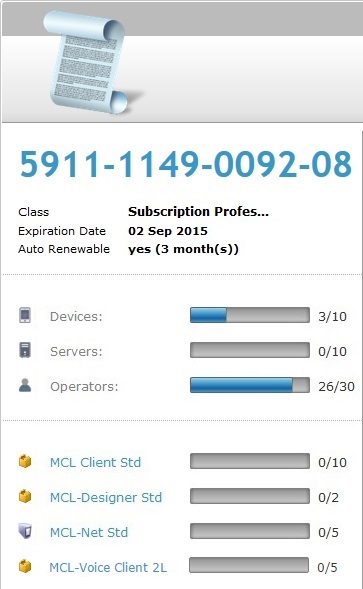

"Left Panel"

The "left panel" includes general information regarding the selected subscription:

	(In blue)	The subscription's code number.
	Class	The type of subscription.
	Expiration Date	The subscription's expiration date.
	Auto Renewable	The subscription's renewability: “no” (the subscription is not automatically renewed) or “yes + time period” (confirmation of renewability and the renewable subscription cycle).
	Devices	The number of devices included in the subscription and the ones that have services associated to them.
	Servers	The number of servers associated to the subscription.
	Operators	The number of operators that can log in to the devices.
	Product Display (in light blue)	This section displays the subscribed product(s). The gauge represents the corresponding product license consumption. If you click the product (displayed in light blue), you open a window with details regarding the product license. Ex: This subscription includes the MCL-Client Std, the MCL-Designer Std, the MCL-Net Std and the MCL-Voice Client 2L products. See Detail of a Product License Usage window below.

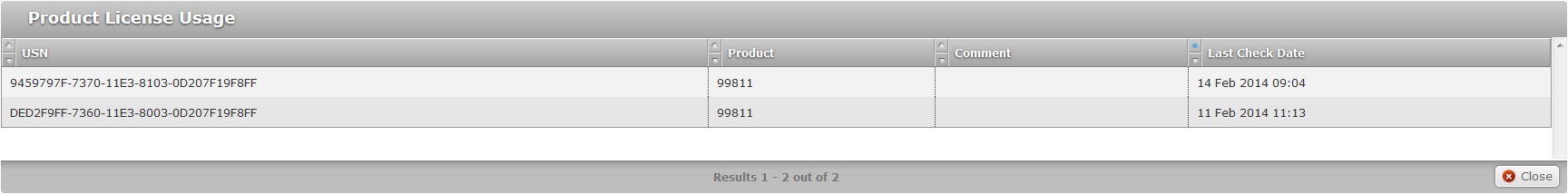

Detail of a Product License Usage window

Product license usage

This window, which is NOT editable, provides the following information:

USN	The serial number of the device/PC where the product is running.
Product	The product code.
Comment	The comment provided by the device/PC during the last license update (token refresh).
Last Check Date	The last time the device/PC contacted MCL-Mobility Platform for a license update (token refresh).

The "Subscription Details" page also provides access to another operation:

To add an add-on to a subscription, use the button. For more detailed information, see Adding an Add-on to a Subscription.
