Overview



The installation of MCL-Net v4 includes the activation of the corresponding license.

Depending on the purchased license type, you will register it in your MCL-Mobility Platform account (specifically, in a site included in your account) OR  in your MCL-License Manager account.

There are two license types:



Subscription

This license is subscription based. It is active during a specific time period, includes several services and products and is linked to MCL-Mobility Platform.

An MCL subscription implies the use of a specific service, the MCL-Net Agent service, to check its validity. This Windows service MUST be installed with MCL-Net v4 (this service's installation is part of MCL-Net's installation wizard). See MCL-Net v4 Installation/Activation (Subscription) - Standard Installation/Activation.



License

The license is a perpetual license, meaning, it only requires a one time activation and does not have a renewal/expiration date. You will register/manage your MCL-Net v4 license(s) in an MCL-License Manager account.

If, for some reason, you cancel your MCL-Net v4 license, you have a period of ten (10) days to reactivate it. Beyond that 10 days period, the license will be permanently blocked.

The installation of the MCL-License Renewal Service v4 is NOT required.

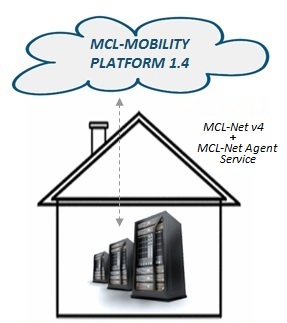

MCL-Net v4 Installation Architecture (Subscription)



An MCL-Net v4 Subscription ALWAYS requires the use of a subscription maintenance service - the MCL-Net Agent service.

This service communicates with MCL-Mobility Platform v1.4 accounts to provide information on the MCL-Net v4 instance.

The MCL-Net Agent Service MUST be installed/running in the same server/PC as your MCL-Net installation.



MCL-Net Agent Service is essential for the maintenance of a Subscription type license. It ensures the periodical validity checks of your subscription's token as well as the communication of status information between MCL-Net v4 and MCL-Mobility Platform 1.4.









System Requirements



Ensure that your system meets the following system requirements before MCL-Net v4 is installed:



Supported Operating Systems



•Windows Server 2012 R2



•Windows Server 2016



•Windows Server 2019



•Windows Server 2022



•Windows 10 (x86 and x64)



•Windows 11



Hardware Requirements





Internet Connection



Internet access required to ensure contact with both cloud-based platforms (MCL-Mobility Platform and/or MCL-License Manager).

When dealing with Subscription type licenses, you must ensure a continuous internet connection (to run "MCL-License Renewal Service v4"/"MCL-Net Agent Service").

In the case of perpetual Licenses, Internet access is only required at the moment of license registration (in your MCL-License Manager account) and, in case of an upgrade (to refresh the perpetual MCL-Net license and update the registered version in MCL-License Manager).





To Install/Activate MCL-Net v4



Installing MCL-Net v4 and activating the corresponding license (Subscription or License) requires performing certain steps in the application itself and in your MCL-Mobility Platform's account (Subscription) or your MCL-License Manager account (License):



Start by downloading MCL-Net v4's installer file (ex.: MCL_Net_XXXXPXX.exe) from one of our websites:



MCL-Mobility Platform (if you have an MCL-Mobility Platform account)

MCL-Collection v4 (if you have licensed MCL product with a perpetual license)



Then, run the installer file and follow the instructions in the MCL-Net Setup wizard.



Depending on your license type (Subscription or License), check one of the following options:



MCL-Net v4 Installation/Activation (Subscription)

MCL-Net v4 Installation/Activation (License)





This chapter includes the following topics:
