Process Purpose

The Send to Host process is used to send or append a local or data file (stored inside the device) to a specified host server.

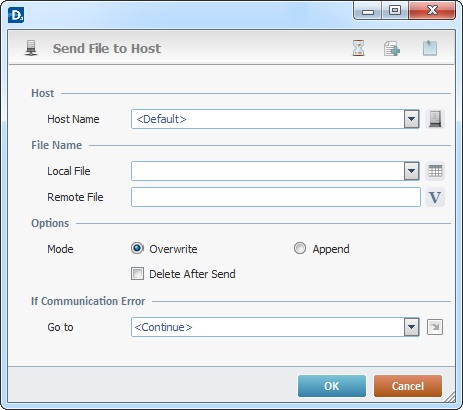

When you add a process, you are required to define its settings. This occurs in the process's properties window which is displayed automatically after having added the Send to Host process.

If any subsequent edition is required, double-click the process to open its properties window and enter the necessary modifications.

Proceed as follows:

Host
Host Name	Select a Host profile from the drop-down list or click to create a new one. See How to Create a Host Profile or The <Default> Host Profile.
File Name
Local File	Select the local or data file to be sent from the drop-down list. If needed, click to edit the selected file. See Editing a Data File.
Remote File	Enter the remote file's name or click and select a variable with that value. See Variable Definition.
Options
Mode	Select the file mode: Overwrite- Check this option to replace an existing file in the Host. Append - Check this option to append the file that will be sent to an existing file in the Host.
Delete After Send	Check this option to ensure that the data/local file is deleted after being sent.
If Communication Error
Go to	Select a target location from the drop-down or the list, in case there is a communications error. See Detail of a window below.

Detail of a window:

"S:Menu" is a screen included in the same program as the process.

"R:Routine_1" is a routine included in the same program as the process.

Use the following recurring icons (located on the upper right corner of the properties window) to execute specific operations:

•Click to define a time out. See To Define a Time Out.

•To create a new data file, click . See Creating a Data File.

•Click to attach any relevant notes to this process. Click it and enter your notes in the resulting text box. These notes will be displayed in the corresponding "Actions" tab or "Process" window (in the "Notes" field) and in the "Developer Report".

After filling in the required options, click to conclude or to abort the operation.

The added process is displayed in the corresponding "Actions" tab or "Process" window.

You can use relative paths to refer the file(s) you want to use in your project. See Working with Aliases.

Use the right click in MCL-Designer's input boxes to access certain features regarding the input box's option as well as general actions such as "Copy"; "Paste"; "Search".

Ex: If you right-click the "Variable" input box (included in a "Conversion's" properties window), you are provided with the "Search..."and "Variable Select" options.

If you right-click another input box, it will provide other possibilities.
