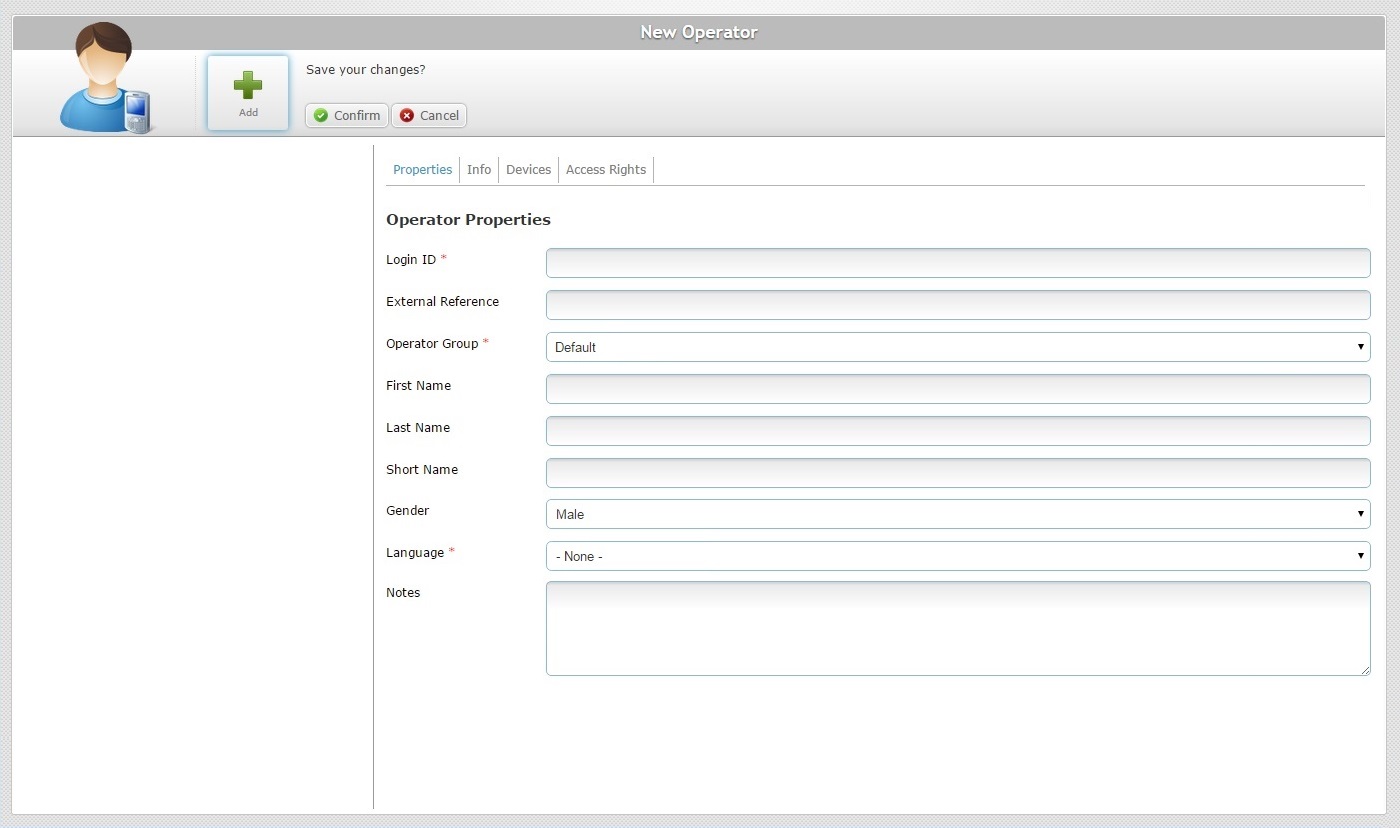

Operator Properties

Login ID *

Enter the operator's identification number in the account.

If the device being handled by the operator has the "MCL Operator Login" application installed, this information will be used to identify the logged in operator.

See MCL-Operator Login Application.

External Reference

Enter the customer's internal operator identification reference.

If the device being handled by the operator has the non-speech version of the "MCL Operator Login" application installed, this information can also be used to identify the logged in operator.

Operator Group *

Select the operator group that will include the newly added operator. If you select a speech operator group (with enabled Speech settings), the new operator will become a speech operator. This means that speech related fields/tabs are activated and that some of the operator group's speech values are applied to the new operator. You can, however, replace them with other values more suitable to this operator.

(Ex: If the selected operator group includes speech attributes, the "Speech Profile" option becomes visible and the "Speech In", "Speech Out" and "Misc Speech Settings" tabs will also be activated and automatically filled in with the settings established for that operator group.)

First Name

Enter the operator's first name.

Last Name

Enter the operator's last name.

Short Name

Define an alternative name to identify the operator.

If the device being handled by the operator has the "MCL Operator Login" application installed, the "short name" will be used to identify the logged in operator in App Desktop.

Spoken Name

This option is only visible if the previously selected operator group is a speech operator group (with enabled Speech settings). Define the name that is prompted to the operator in the speech dialog (ex: a welcome message).

Gender

Select the operator's gender.

Language *

Select the language to be used by the operator in the application.

Speech Profile *

This option is only visible if the previously selected operator group is a speech operator group (with enabled Speech settings).

Select the appropriate speech profile.

The speech profile you select will affect most of the speech related options available in the new operator's profile.

The drop-down displays the available speech profiles (global or local according to the site's current speech profile management).

If any of the available speech profiles has been set as an entity's default or custom profile, instead of its name, you will view one of the following designations:

<group profile> - Refers to the speech profile set as default for the previously defined operator group. Used in both levels of speech profile management (Global or Local).

<account default> - Refers to the speech profile set as default for the account. Only used within the Global Speech Profile Management.

<site default> - Refers to the speech profile set as default for the current site. Only used within the Local Speech Profile Management.

<custom profile> - Refers to a custom speech profile, to be created, specifically for the operator, in the speech related tabs ("Speech In", "Speech Out" and "Misc Speech Settings").

Notes

If required, enter any relevant information regarding the operator.

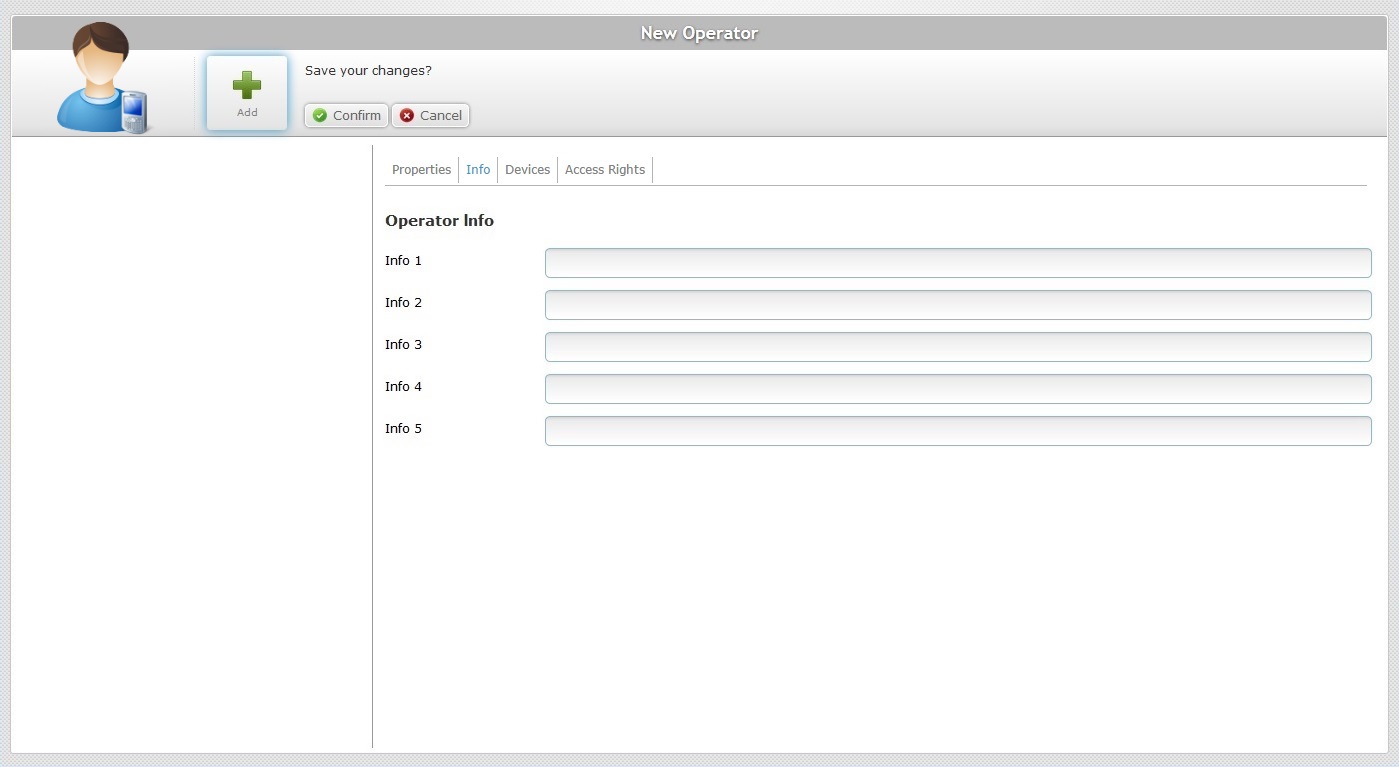

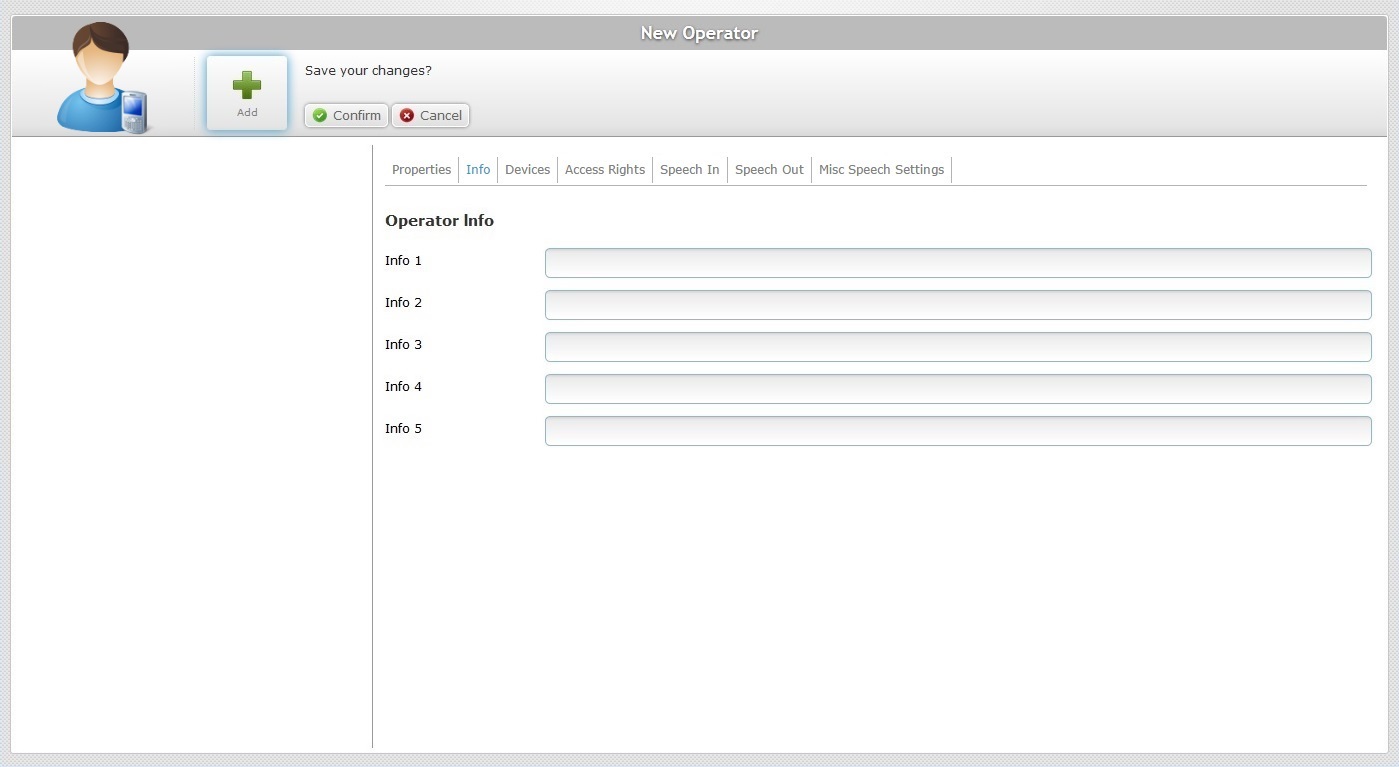

Operator Info

Info 1 > 5

These field labels can be customized (their designation can be modified according to the information they are supposed to retrieve).

See "Editing Site Details" - Custom Labels tab.

Enter the requested information.

When developing an application with MCL-Designer, you can use system variables to link the information you enter in these fields to the application itself.

Ex: If you use the X_USR_CUST3 system variable within an MCL Designer developed application, you can retrieve the information entered in this field.

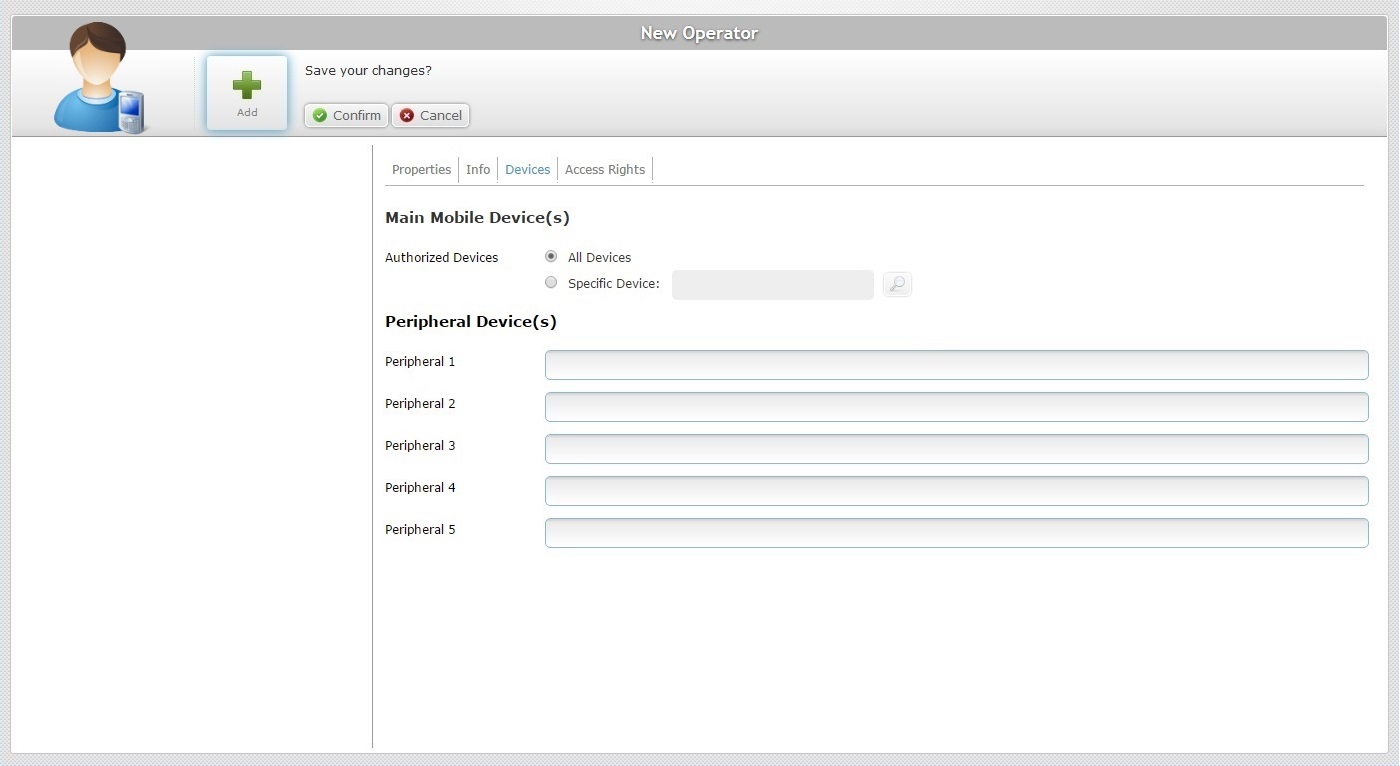

Main Mobile Device(s)

Authorized Devices

All Devices: If you check this option, the operator will be able to use all the site's devices.

Specific Device: If this option is checked, the operator will only be able to use a specific device from the sites's device pool.

See Detail of Select Device window below.

Peripheral Device(s)

Peripheral 1 > 5

If required, customize the labels concerning peripheral devices to display something other than "Peripheral...".

See "Editing Site Details" - Custom Labels tab.

"Peripheral 1" refers to the Bluetooth headset connection string (ex. <MAC Address>#<PIN Code>).

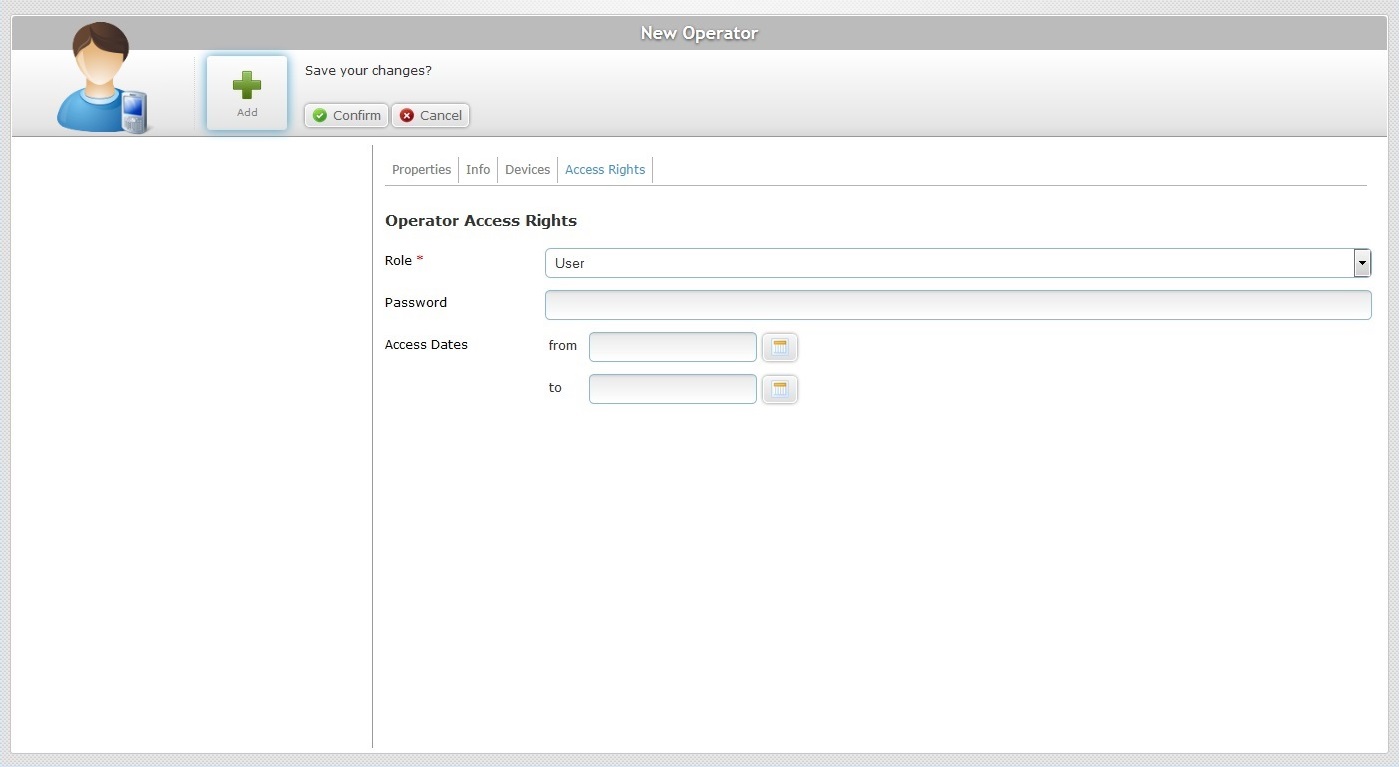

Operator Access Rights

Role *

Select the role of the new operator from the available options in the drop-down list.

Password

If required, enter a password for the new user to access the system.

If the operator handles a device with the non-speech version of "MCL Operator Login" application installed, he/she will have to enter this password to use the login application. See MCL Operator Login Application.

Access Dates

If required, define the period of time the operator will have access to the application(s). Enter a beginning and an ending date (DD/MM/YYYY) or use the :

a. Click the corresponding to open a calendar.

b. Select the appropriate date.

Use the <</</>/>> to navigate the months/years.

If you want to clear any information, click .

If you want to select the current date, click .

If you want to exit the calendar, click .

c. Click and the information is viewed in the corresponding box.

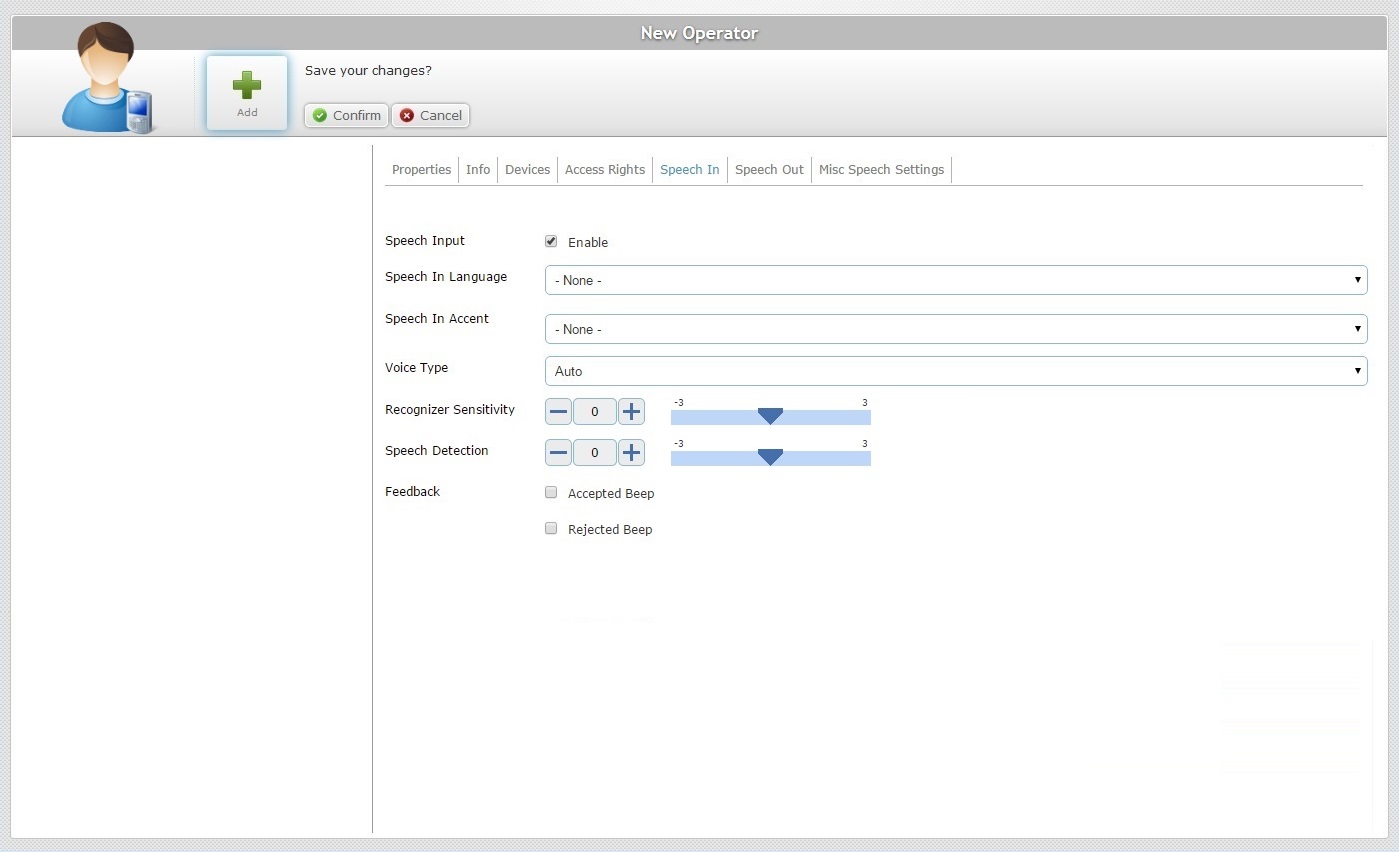

Speech Input

Only available if you selected <custom profile>. Check/uncheck the option to enable/disable the Speech Input setting.

Speech In Language

Only available if you checked the "Speech Input" option. Select the language the new operator will use to interact with the speech application.

Speech in Accent

Only available if you checked the "Speech Input" option. Select the accent file that will store the fine tuning of speech recognition. The drop-down list displays the accent files added in the account's "Speech Profiles" module (Global Speech Profile Management) or the site's "Speech Profiles" sub-module (Local Speech Profile Management).

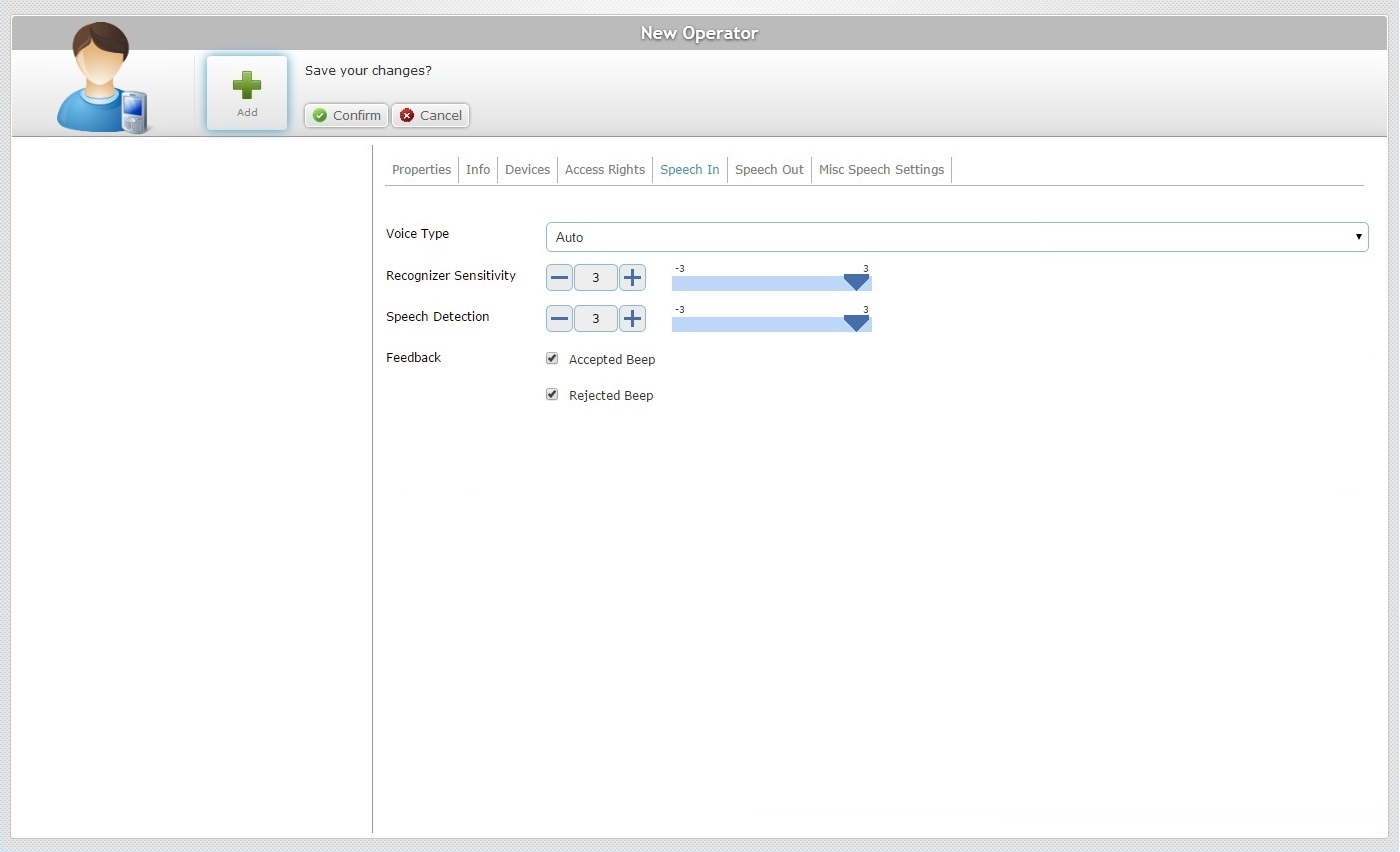

Voice Type

This parameter is responsible for the filtering of the speech signal spectrum and its purpose is to optimize user speech decoding. When the voice type is set to "Auto", the system executes an adaptation, over time, to match the speech input signal. If you select another voice type (Neutral, Male, Female or Child), this progressive auto adjustment is bypassed, providing better initial performance. Defining the wrong voice type will affect speech recognition quality.

Select the voice type from the drop-down list (Auto, Neutral, Male, Female or Child). For most cases, the default value (Auto)is the preferred value.

Recognizer Sensitivity

This parameter's purpose is to match the operator's speech to the expected words.

Define a recognizer sensitivity value. Enter a value, use the plus/minus buttons or drag the slider mark to the required position (available values from -3 to +3).

Consider the following when defining the recognizer sensitivity value:

•The operator's speech level (a good speech -high energy/loud and clear word pronunciation OR a poor speech -low energy and bad word pronunciation).

•The operator's environment and possible interference from background noise.

Ex: Too low recognizer sensitivity dismisses background noise but does NOT accept an operator's "poor" speech.

Possible settings based on general considerations:

Fine tuning suggestions:

Speech Detection

This parameter (aka microphone sensitivity) defines the "Speech Detection" levels that will "isolate" background noise from actual speech based on the received energy level.

Define a speech detection value. Enter a value, use the plus/minus buttons or drag the slider mark to the required position (available values from -3 to +3).

Consider the following:

•A high speech sensitivity helps detect a low energy speech (operator with a soft voice) but it increases the risk of noise processing.

•A low speech sensitivity reduces the risk of noise processing but requires a high energy speech (operator must speak loud and clear) for a good detection.

Ex: For operators with a loud and clear voice, define a speech sensitivity value of -1 or -2.

Note that some words start with low energy (ex: words with an initial "sh" sound) which means they might not be detected if the speech sensitivity value is too low.

Feedback

Check/uncheck the corresponding option to enable/disable a success and/or a rejection beep.

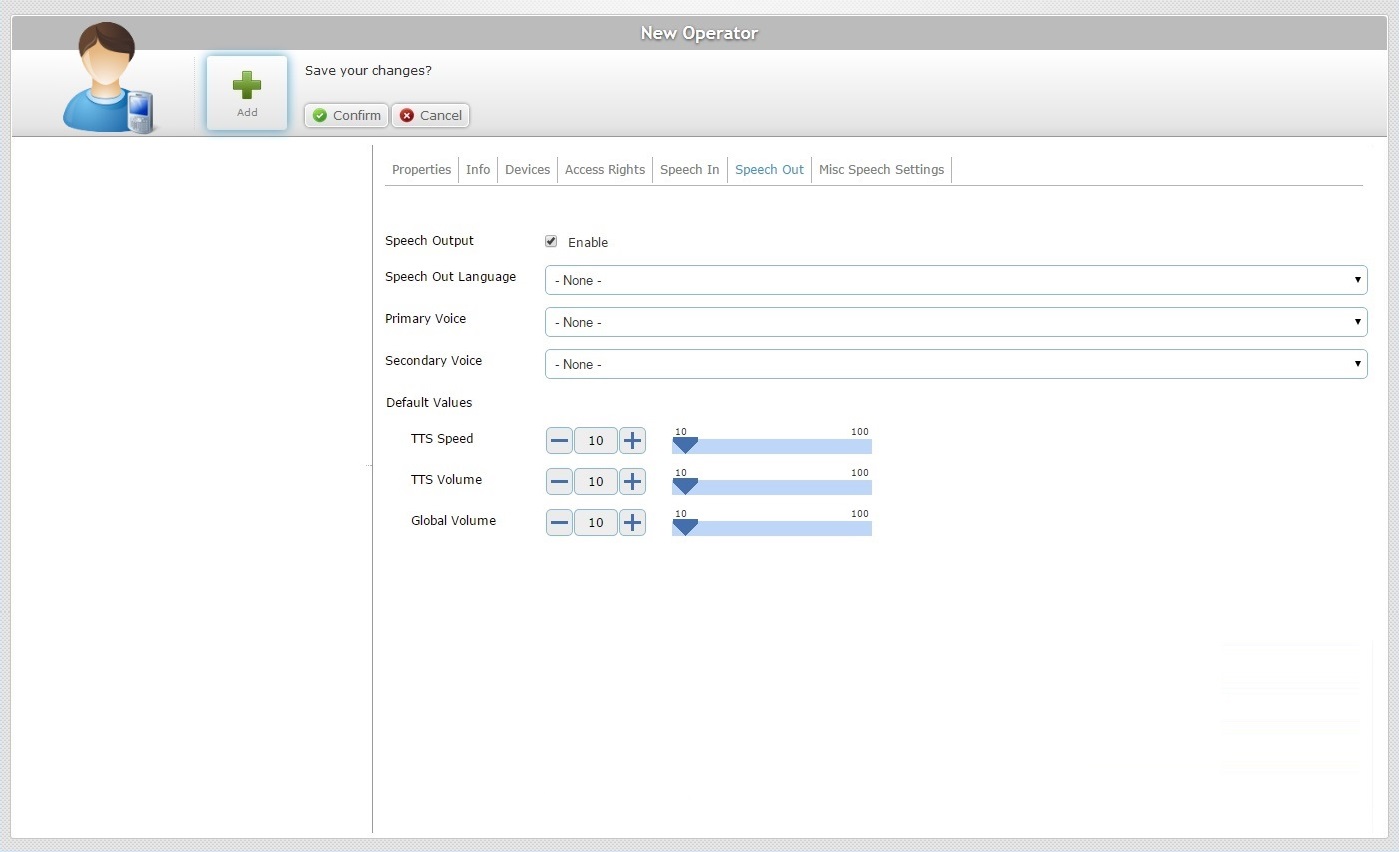

Speech Output

Only available if you selected <custom profile>. Check/uncheck the option to enable/disable the Speech Output setting.

Speech Out Language

Only available if you checked the "Speech Output" option. Select the language the operator will hear from the device.

Primary Voice

Only available if you checked the "Speech Output" option. Select the primary language the operator will hear from the device.

Secondary Voice

Only available if you checked the "Speech Output" option. Select the secondary language that the operator will hear from the device. This is optional and only active if you have previously defined more than one compatible TTS language.

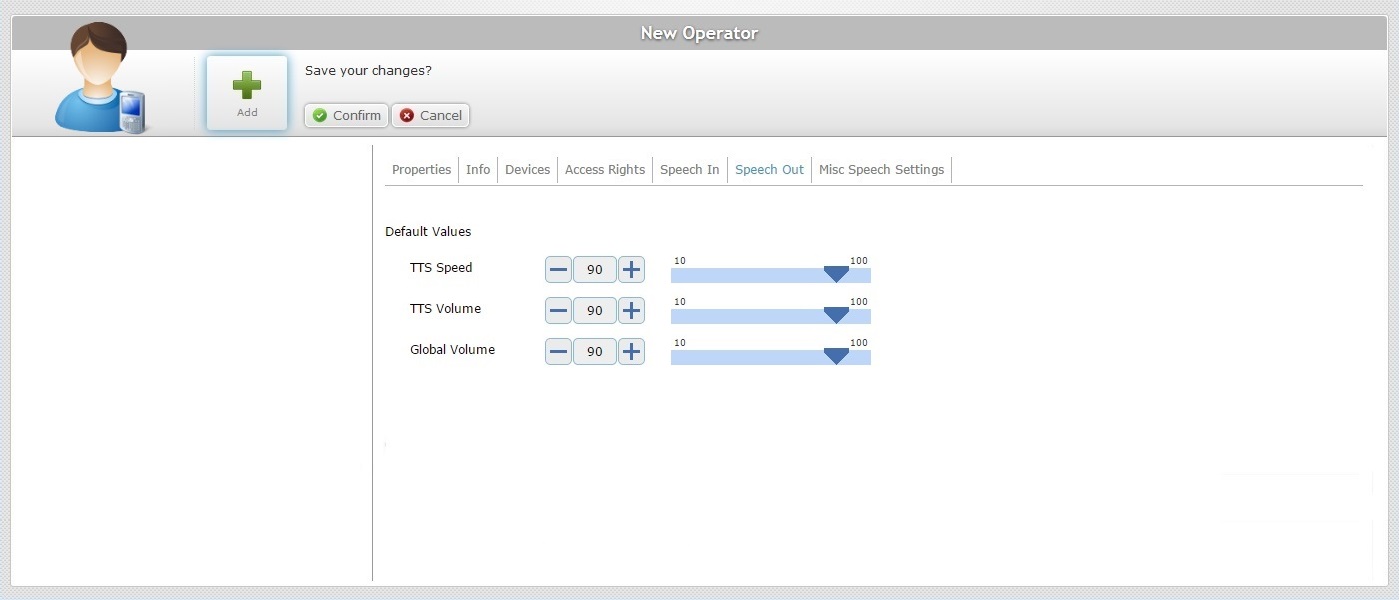

Default Values

TTS Speed

Define the speed to be used by the TTS (text to Speech) engine. Enter a value, use the plus/minus buttons or drag the slider mark to the required position.

TTS Volume

Define the speech volume to be used by the TTS engine (the TTS Volume parameter only affects the Synthesizer channel).

Enter a value, use the plus/minus buttons or drag the slider mark to the required position.

Global Volume

The Global Volume parameter sets the volume of all channels (recognition/rejection beep, application beep, TTS, wave player…).

Define the global audio volume for the device. Enter a value, use the plus/minus buttons or drag the slider mark to the required position.

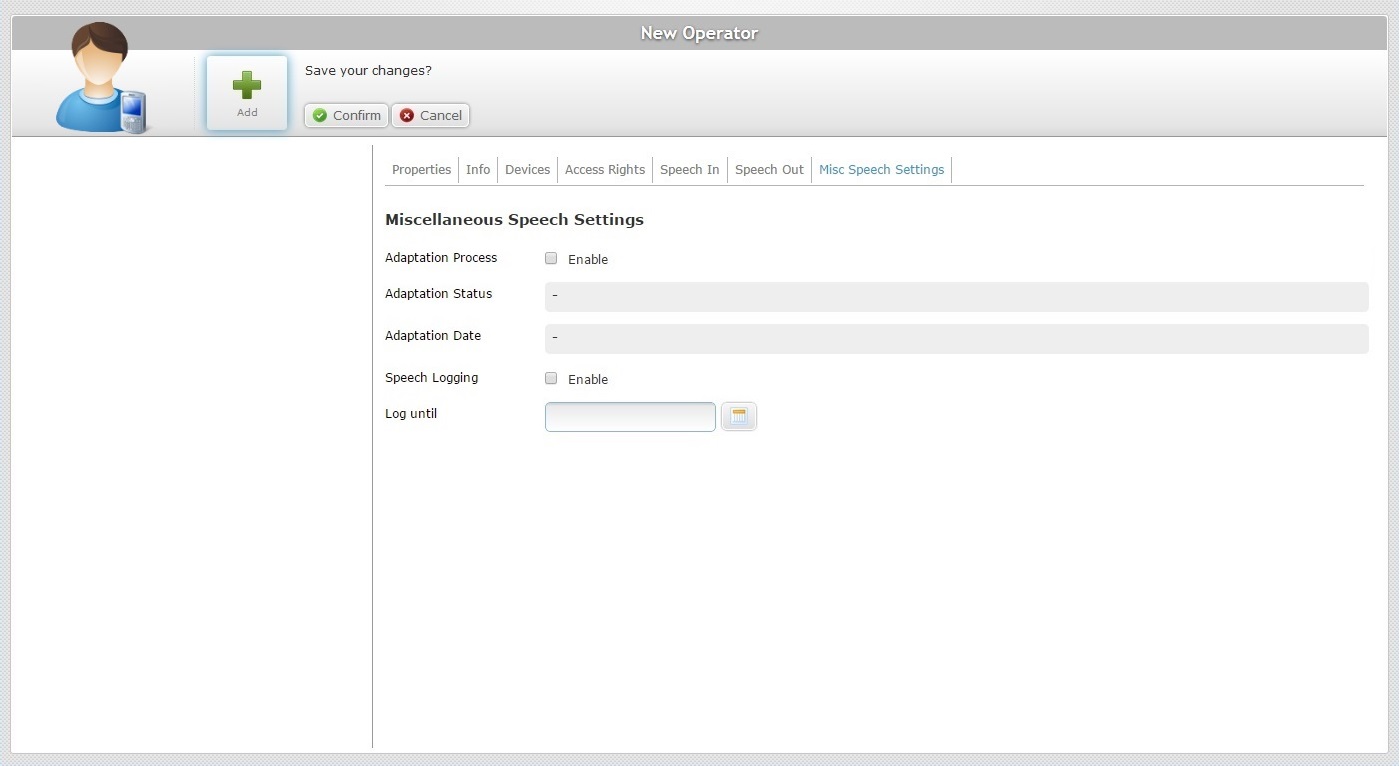

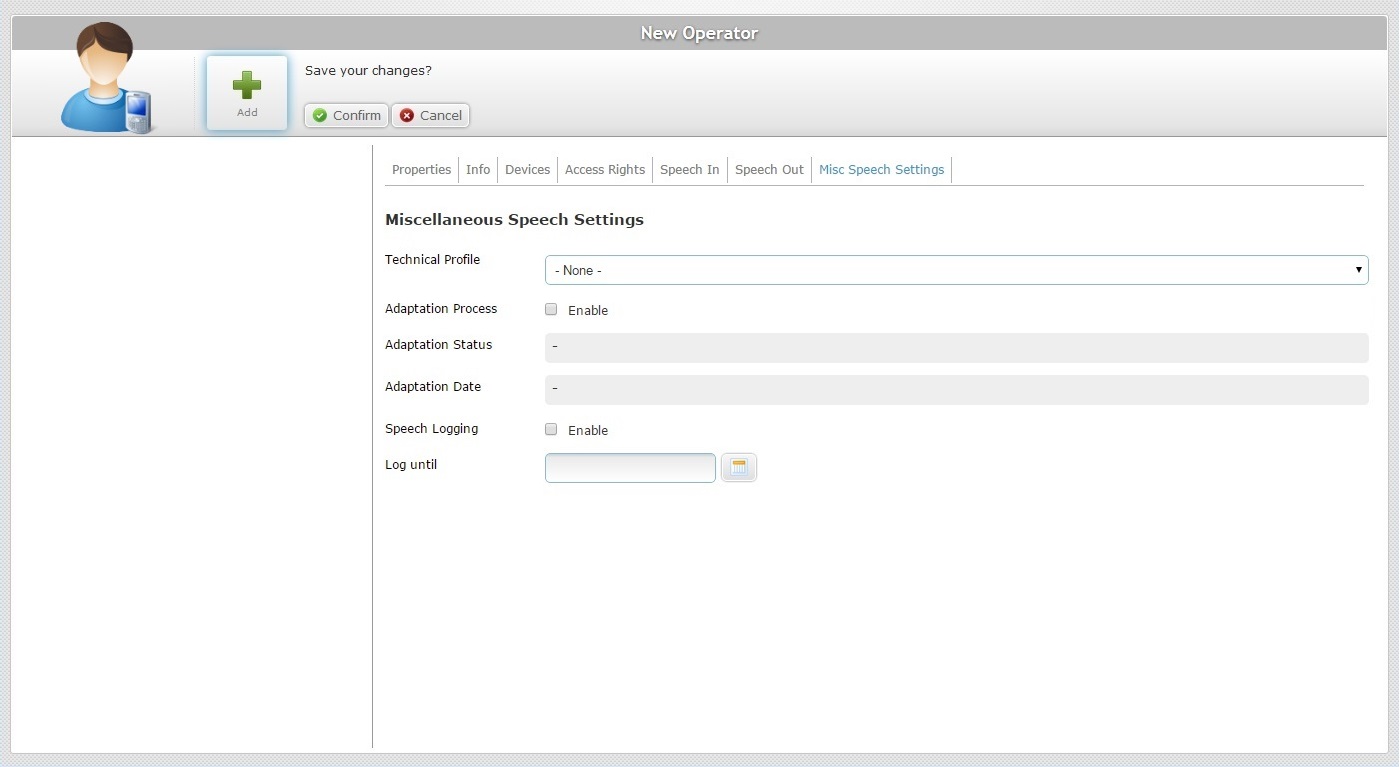

Miscellaneous Speech Settings

Adaptation Process

This option does NOT apply to operators running MCL-Voice V4 applications.

For operators handling MCL-Voice V3 applications, consider the following:

Check/uncheck the option to enable/disable the Adaptation process. Although adaptation is not considered a comfort setting, it has the same purpose - to take the operator's unique speech traits into consideration so that the speech recognition performance improves. See Adaptation.

New operators inherit the corresponding setting from the already applied speech profile but you can customize this option, meaning, you can choose whether you want the new operator to use adaptation or not.

Adaptation Status

Only applicable for operators running MCL-Voice V3 applications.

This field is NOT editable. Its content depends on the optional speech adaptation performed by the operator.

Adaptation Date

Only applicable for operators running MCL-Voice V3 applications.

This field is NOT editable. Its content depends on the optional speech adaptation performed by the operator.

Speech Logging

Check/uncheck the option to enable/disable log generating.

The enabling of speech logs means that the device will register all speech interactions once the operator logs in to an MCL speech application. The resulting logs will be communicated to the MCL-Mobility Platform account when the operator logs out.

Log until

Define an end date for generating logs. Enter it ((DD/MM/YYYY) or use the :

a. Click to open a calendar.

b. Select the appropriate date.

Use the <</</>/>> to navigate the months/years.

If you want to clear any information, click .

If you want to select the current date, click .

If you want to exit the calendar, click .

c. Click and the information is viewed in the "Log until" box.

A "Log until" date must be specified so that the speech logs are generated.

Technical Profile

Select the appropriate Technical Profile ( a configuration file, provided by MCL, that allows for the fine tuning of the MCL-Client behavior). The drop-down list displays the technical profiles added in the account's "Speech Profiles" module (Global Speech Profile Management) or the site's "Speech Profiles" sub-module (Local Speech Profile Management).
