Overview



The "Sites" sub-module of the "Control Panel" presents a list of sites associated to the account and provides access to the settings (that are editable) of each site. This is where sites are added to an account or deleted.





To access the "Site Management" page, click (located in the "Control Panel") and, in the resulting row, select to view all the sites in the account.







This information can be displayed in a grid or a list view. By default, the sites are displayed in a grid view but the view can be changed.

Click or to select the most appropriate view:

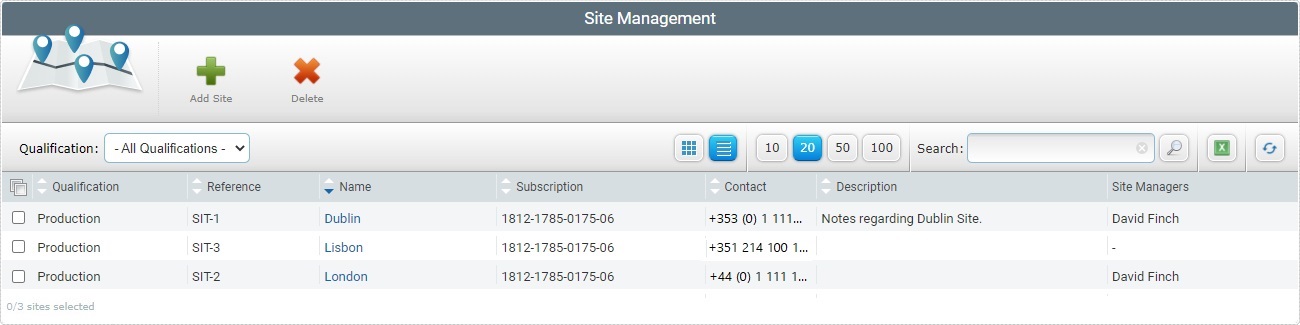

•Click for a grid view.





This view displays the following information:





OR

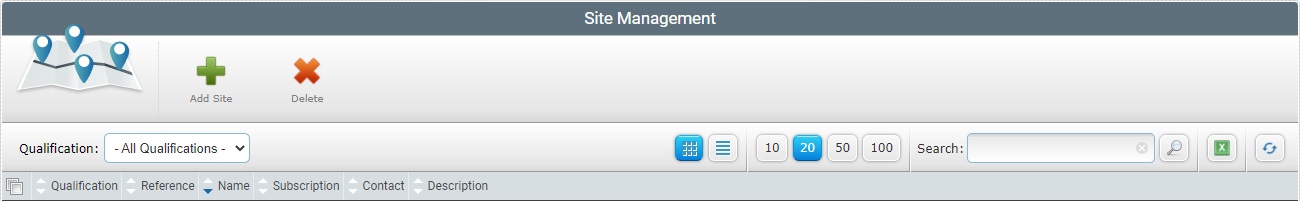

•Click for a list view.





This view displays the following information:







The "Site Management" page also offers the following options:







•Use the Qualification drop-down to filter the displayed information by site qualification - "- All Qualifications -"; "Production"; "Acceptance"; "Test" and "Development".



•Use these buttons to control how many items are displayed at a time. Click one of the available options (10 items per page/20 items per page/50 items per page/100 items per page).



•Use the search box to look for specific list items:



a. Enter the name or reference of the site you want to search for.

b. Click or press <ENTER> in your PC keyboard to initiate the search.

c. Use one of the following to clean the searched data to start a new search or return to a full view:

•empty the search box and click ;

•empty the search box and press <ENTER> in your PC keyboard;

•click the icon.



•Use this button to export a list with the sites included in the account. Proceed as follows:





a. Click .



The site list is exported with an Excel file format.

The conclusion of the export operation depends on the web browser used. You should be able to save the Excel file in your PC or open it directly after the download.



If, at the moment of export, you are performing a "search operation", the export will only consist of the result of the search.





•Click this button to refresh the page's information.



•Use the buttons, included in this bar, to organize the listed items of the corresponding column:

•by ascending order.

• by descending order.



•Click this button to select all the listed items being displayed. In this case, all the sites.



•Click the site's name (displayed in light blue) to access a page with the details of that particular site. See Site Details.



•The buttons located in the page's footer, to navigate between the next/previous xx items (ex: 20 items) by using the buttons and to navigate to the first/last xx items (ex: 20 items) by using the buttons.





Available Operations



To add a new site to the account, use . For more detailed information, see Adding a Site.



To delete a site from the account, use . For more detailed information, see Deleting a Site.





Qualification



Within the MCL-Mobility Platform environment, the "qualification" feature is used to identify entities with a compatible purpose/development stage. Qualifications are attributed to sites, applications, configurations and profiles.

Depending on the "qualification" assigned to an entity, the platform will filter the options so it only provides access to other compatible entities.

Ex: Sites with the qualification "production" are part of the customer's day-to-day activities and cannot be used to test applications (that is to say, use applications with a "development" qualification). This way, those sites will only have access to applications with the qualification "production" (tested/complete MCL applications) so there is no disruption of the daily working environment because of testing.



There are 4 different qualifications:

Production - for the virtual entities that represent/are used within a customer's "physical" facilities, in a working environment, meaning, these entities are used in day-to-day tasks. This is the most restrictive qualification. The interaction/association is only between entities qualified as "production".

Acceptance -  for virtual entities that mimic the customer's operations but are only used for specific testing.

Test -   for virtual entities with general testing purposes.

Development - for virtual entities to be used during application development with MCL-Designer. Entities with this qualification have the broadest access, they can view every qualified entity regardless of its qualification.



Qualification Management



•The account administrator is the ONLY platform user that can qualify entities or edit their qualification.



•A site's qualification is NOT editable.



•At site level, every uploaded application and/or created configuration/profile inherits its qualification from the site it is included in - the qualification is NOT editable.



•The qualification of sites, applications, configurations and profiles ensures that each entity can ONLY view/handle other entities that are compatible.

Check below the compatibility between each site qualification and other entities/qualifications:



Qualification Compatibility





•"Production" sites ONLY handle applications, configurations and profiles with a "Production" qualification.

•"Acceptance" sites have "Acceptance" and "Production" qualified applications, configurations and profiles at their disposal.

•Sites with a "Test" qualification can access applications, configurations and profiles with a "Test", "Acceptance" or "Production" qualification.

•"Development" qualified sites can handle all applications, configurations and profiles regardless of its qualification.





This chapter relates to the creation,viewing, editing, etc., of sites:
