Working with Update DB from File Process
|
Working with Update DB from File Process |
|
Process Purpose
The Update DB from File process is used to update records located in a database table in a specific Host server with data from a data file.
This data source must always be connected/linked to the operating system being used. See To create a Data Source in the PC.
When you add a process, you are required to define its settings. This occurs in the process's properties window which is displayed automatically after having added the Update DB from File process. This properties window includes three tabs - "General", "Query" and "Advanced".
If any subsequent edition is required, double-click the process to open its properties window and enter the necessary modifications.

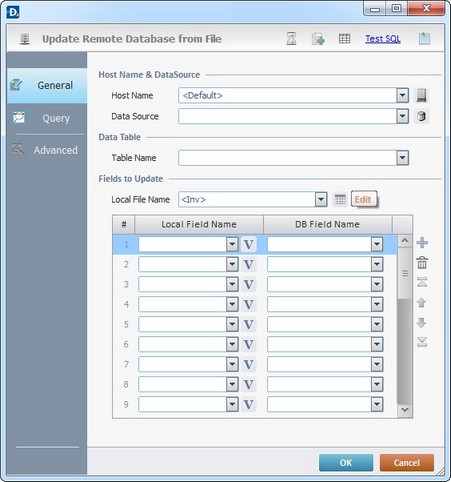

General tab
Fill in the following options:
Host Name & DataSource |
|
Host Name |
Select a Host profile from the drop-down list or click |
Data Source |
Select the database with the records to update from the drop-down list or click |
Data Table |
|
Table Name |
Select the table to update from the drop-down list. If needed, click |
Fields to Update |
|
Local File Name |
Select the data file that contains the records that will update the selected database from the drop-down list. If needed, click |
Local Field Name column |
Select the data file field(s) containing the record(s) from the drop-down list or click |
DB Field Name column |
Select the database field(s) Name that will be updated from the drop-down list. You can update records with up to 26 values at once. |
Use the editing icons to the right of the table to move the rows up and down and to delete or add more rows.

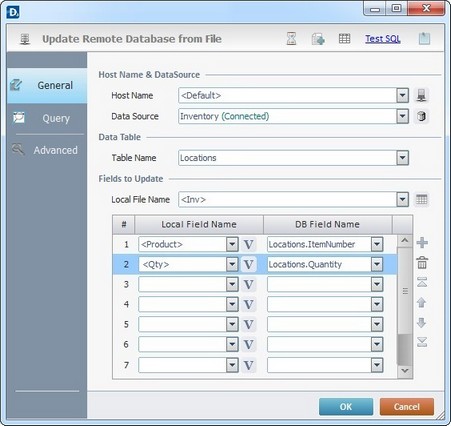

Example
|
The selected database is "Inventory" and the update will occur, more specifically, in the "ItemNumber" and "Quantity" fields of the "Locations" table. The information source for the database update is the <Inv> data file (the <Product> and <Qty> fields). |
Go to the "Query" tab.
Query tab
Proceed as follows
Where |
|
Where Clause |
Click |
Use the editing icons to the right of the table to move the rows up and down and to delete or add more rows.
Continue to the "Advanced" tab.

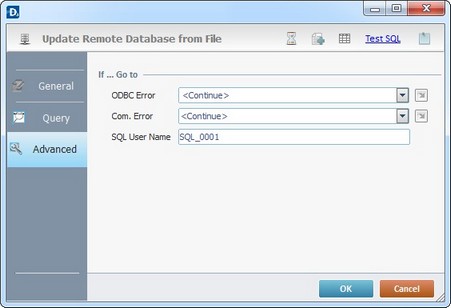

Advanced tab
Fill in the following options:
If … Go to |
|
ODBC Error |
Select a target location from the drop-down list or the |
Com. Error |
Select a target location from the drop-down list or the |
SQL User Name |
Define a unique name for the SQL request. One is always suggested. |
Detail of a
window:
"S:Menu" is a screen included in the same program as the process.
"R:Routine_1" is a routine included in the same program as the process.
If required, use the icons on the upper right corner of the process window:
Click it to setup a timeout. See To Define a Time Out.
Click it to create a new data file. See Creating a Data File.
click it to edit a data file. See Editing a Data File.
Use it to test SQL Scripts. See To Test SQL Scripts.
After filling in the required options, click
to conclude or
to abort the operation.
The added process is displayed in the corresponding "Actions" tab or "Process" window.
You can use relative paths to refer the file(s) you want to use in your project. See Working with Aliases.
Use the right click in MCL-Designer's input boxes to access certain features regarding the input box's option as well as general actions such as "Copy"; "Paste"; "Search".
Ex: If you right-click the "Variable" input box (included in a "Conversion's" properties window), you are provided with the "Search..."and "Variable Select" options.
If you right-click another input box, it will provide other possibilities.
