Managing the Account > External Systems > Servers

Overview

The "Server Details" page provides general information on the selected server.

In the Admin Dashboard's "Control Panel", click External Systems Button , and, in the resulting row, click Servers Button .

This opens a "Server Management" page with the existing servers in the account.

Servers Page_Account

Select the server you want to view by clicking its alias (displayed in light blue). This opens the corresponding "Server Details" page which includes the Properties tab and a "left panel" with information.

"Properties" tab

Speech Balloon_Button_Tab

The "Properties" tab displays the following information:

Linked to	The site associated to the server.
Server Alias	The server's alias or name.
Address	The server's address (if it is an MCL-Net server, enter "http:// + IP number").
Port	The server's port.
Subnet	The server's subnet mask.
Gateway	The server's gateway.
Notes	Information regarding the server.

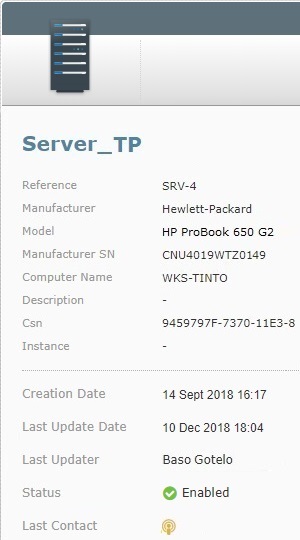

Left Panel

The left side of the "Server Details" page displays the following information:

	(displayed in blue)	The server's alias/name.
	Reference	The server's MCL-Mobility Platform's internal reference.
	Manufacturer	The server's manufacturer.
	Model	The server's model.
	Manufacturer SN	The server's serial number.
	Computer Name	The server's name/alias.
	Description	The description of the Host provided by the host's operating system.
	CSN	The server's CSN.
	Instance	The instance of MCL-Net paired/associated to the server.
	Creation Date	The server's creation date.
	Last Update Date	The date and time of MCL-Net's last contact with the platform.
	Last Updater	The name of the user that last updated the server's info.
	Status	Displays the server's current status ("Enabled or "Disabled").
	Last Contact	The date and time of MCL-Net's last contact with the platform.

This information is provided by the MCL-Net application when contacting MCL-Mobility Platform.

Available Operations

The "Server Details" page provides direct access to specific operations concerning servers:

To edit the details of a server, click to set the "Server Details" page to edit mode. For more detailed information, see Editing Server Details.

To delete a server, use the button. For more information, see Deleting a Server.

To change the server's status, use the Change Status Button_New button. For more information, see Changing a Server's Status.

To refresh the page's view, use the button.
