Overview
The "... Topic Details" page displays information concerning the selected topic (name, type/direction, available messages, etc.). It also allows you to create and send a message onto a specific topic (for instance, for testing purposes) or read the messages included in a topic.
The name of the page itself refers to the type/direction of the corresponding topic.
Ex: If the selected topic is meant to handle inbound messages (messages sent by the device to a topic for a back-end) the corresponding "...Topic Details" page is called "Mobile to Back-end Topic Details".
Use the
button (in the Site Dashboard's "Control Panel") to access the "Messagebox" sub-module.
Click
.
In the resulting "Topics" page, click the name of the intended topic (displayed in light blue) to view the corresponding "...Topic Details" page.
This page includes several tabs and a left panel. By default, the "...Topic Details" page is open in the "Properties" tab.
It displays the following information:
Topic Name |
The name of the current topic. |
Direction |
The type of topic considering its direction: •"Mobile to Back-end" (messages sent by the device to the back-end). •"Back-end to Mobile" (messages sent by the back-end to the device). •"Request" (the device sends a request and waits for the corresponding response from the back-end). |
Message Time-to-Live |
How long the message will be available in the current topic for retrieval by the receiver. The message will be removed from the topic after that. |
Message Acknowledgment |
Refers to the "ack message" to be returned to the sender once the message is read/retrieved from the intended topic by the receiver. This acknowledgment can be "automatic", meaning, the "ack" is triggered once the message is read (default option) or this can be managed by the message receiver("Back-end" or "Device"). |
Description |
Relevant notes regarding the current topic. |

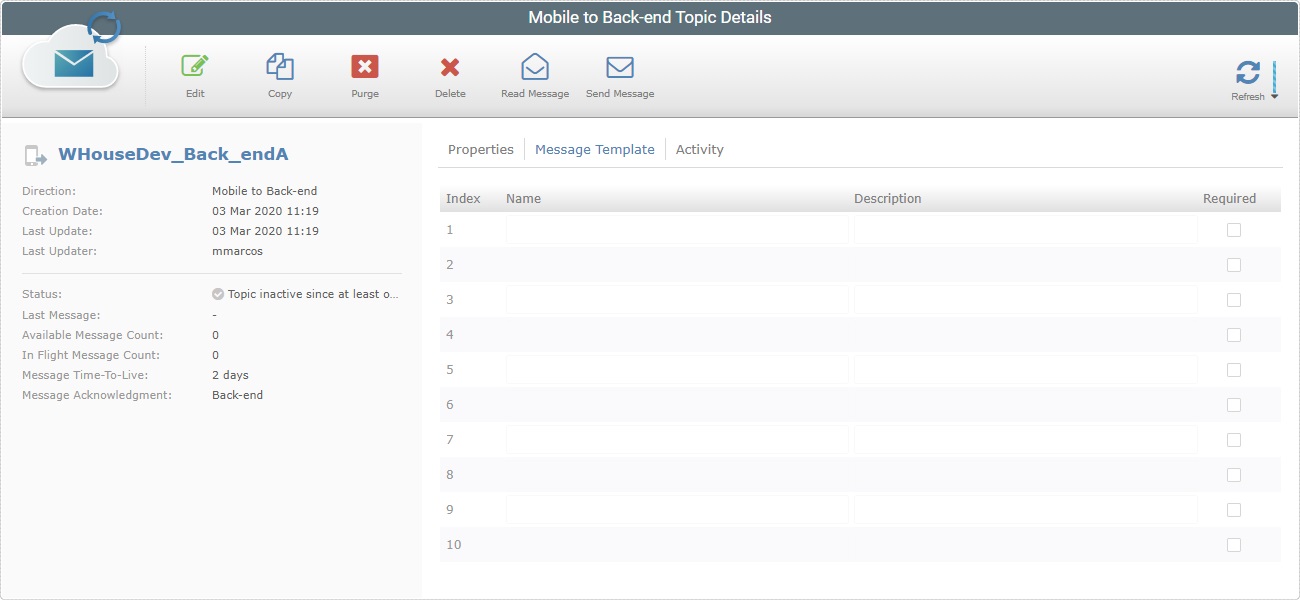

This tab is used to create a message template for the messages (definition of the message headers) to be sent from within the current topic onto the topic. The message template is optional but if one is created, it is displayed in this tab. The message template is applied to all the messages sent from this topic.
The tab displays the following information:
Index |
The number of the corresponding header. |
Name |
The name of the corresponding header that will be part of the message. |
Description |
Information on the corresponding header. |
Required |
If checked, the corresponding header is a message requirement. |

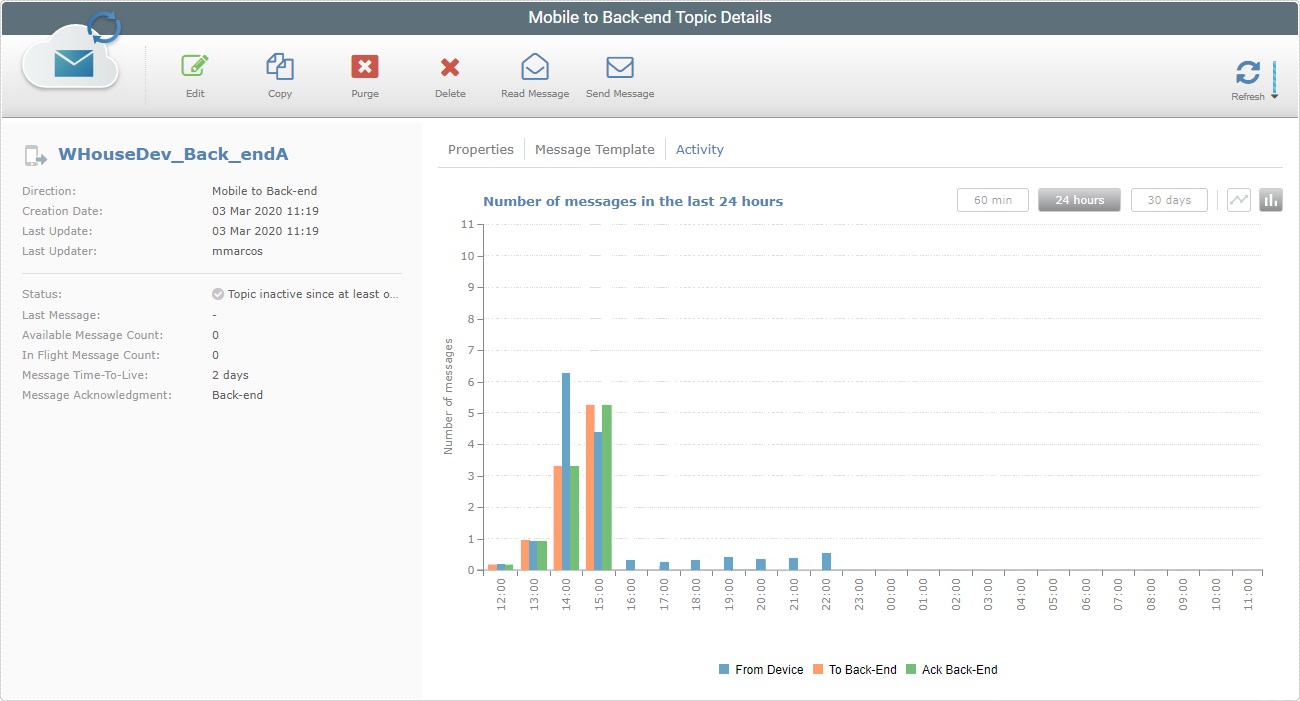

This tab contains a chart with the message flow within the current topic (how many messages/"ack" were received/sent and at what time) during the selected time window.
The "Activity" tab allows you to change the time interval for the data - click the intended time period ("60 min."; "24 hours"; "30 days") as well as change the chart type (column or line chart), even if the page is not in edit mode. The chart will refresh its type/displayed data accordingly.
Use the chart's caption to identify the received/sent messages and "acks" through color.

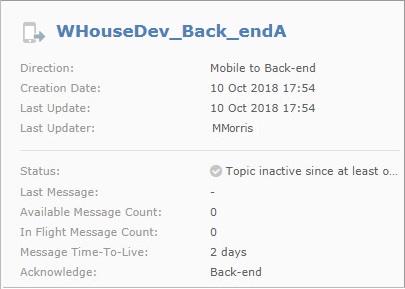

The left side of the "...Topic Details" page displays the following information:
|
(In blue) |
The name of the current topic. |
Direction |
The type (sub-service)/direction of the current topic - "Mobile to Back-end"; "Back-end to Mobile" or"Request". |
|
Creation Date |
When the topic was created. |
|
Last Update |
When the topic was last edited. |
|
Last Updater |
Who last updated the topic. |
|
Status |
The topic's current status: " " The amount of messages being posted by the sender is too much for the receiver to process immediately, creating a message queue. " " |
|
Last Message |
How much time has passed since a message was sent to the current topic. |
|
Available Message Count |
How many messages are available for retrieval/reading in the current topic. |
|
In Flight Message Count |
How many messages are currently being read/retrieved from this topic by the receiver. |
|
Message Time to Live |
How long a message will be available in the current topic to be retrieved/read by the receiver. |
|
Acknowledge |
The entity in charge of sending the "Ack" to the sender of the message: "Automatic" - once the message is read, the acknowledgment is triggered. "Back-end" - The sending of the "Ack" is managed by the back-end. "Device" - The sending of the "Ack" is managed by the device. |
The "...Topic Details" page also provides direct access to specific operations:
To edit the current topic, use the
button. For more detailed information, see Editing a Topic.
To copy the current topic, use the
button. For more detailed information, see To Copy a Topic.
To empty the current topic of all its messages, click
. For more detailed information, see To Purge a Topic.
To delete the current topic, click
. For more detailed information, see To Delete a Topic.
To read a message from the current topic, click
. This option is only available for "Mobile to Back-end"/"Back-end to Mobile" topics.
For more detailed information, see To Read a Topic's Message.
To send a message onto the current topic, click
. This option is only available for "Mobile to Back-end"/"Back-end to Mobile" topics.
For more detailed information, see To Send a Message to a Topic.
To refresh the current page, use
. It is also possible to define a Page Refresh cycle with this button:
•Click
for an automatic Page Refresh.
•Use the adjacent down arrow
to define the page's Page Refresh cycle:
a. Click the arrow to access a list with the available time periods (ex: "Disabled"; "Auto" (default option); "1 minute"; "# minutes").
b. Select the preferred Page Refresh cycle.
c. Click the arrow again to hide the list.
If you select "Disabled", the page's content is only refreshed when you click .
The arrow acts like a gauge - the blue color indicates the refresh cycle's progress.
Topic is queuing"
Topic inactive since at least one day"
Topic inactive since at least one hour"
