Managing a Site > Set Up > Profiles

Overview

The "Profile Details" page displays the selected profile's settings.

Since there are 4 types/sub-types of profiles (Deployment, Wifi Network,Cellular Network and Time Period), the corresponding details page will have different options.

To open the "Profile Management" page, click in the Site Dashboard's "Control Panel" and, then, in the resulting row below.

Profile Management Page_SD

Click the name of the profile (displayed in light blue) to open its details page.

We recommend you use the and/or drop-down to filter the list as much as possible.

Check the links below to view each profile type's details page:

•Deployment Profile - "Deployment Profile Details" page.

•Cellular Network Profile - "Cellular Network Profile Details" page.

•Wifi Network Profile - "Wifi Network Profile Details" page.

•Time Period Profile - "Time Period Profile Details" page

The "Deployment Profile Details" Page

This page allows you to define the conditions necessary to trigger a deployment that was planned within the account (at account or at site level).

Speech Balloon_Button

This tab displays the following information:

Profile Name	The profile's name.
Active Period	The allowed time frame for the deployment - specific days for the deployment to take place and the actual starting and ending time within the defined day(s).
Power Condition	The power conditions of the target devices that allow any scheduled deployment(s) to execute.
Network Condition	The network conditions of the target devices that enable the planned deployment to execute.
Description	Any relevant information about the profile.

The "Cellular Network Profile Details" Page

Cellular Network profiles are used to define the site's default cellular communication settings, for instance, for device pairing.

Speech Balloon_Button

This tab displays the following information:

Cellular Setup
Name	The profile's name.
APN	The profile's APN (Access Point Name).
APN Type	The profile's APN type (ex: default, mms, etc.).
MMC	The profile's MCC (Mobile Country Code).
MNC	The profile's MNC (Mobile Network Code).
Proxy
A checked option means that the current cellular network profile uses a proxy.
Host	The proxy's host address. This option is ONLY available if the "Proxy" option is checked.
Port	The proxy's port. This option is ONLY available if the "Proxy" option is checked.
Description	Relevant information about the profile.

The "Wifi Network Profile Details" Page

Wifi Network profiles are used to define the site's default Wifi communication settings, for instance, for device pairing.

Speech Balloon_Button

This tab displays the following information:

Wifi Setup
Name	The profile's name
SSID	The profile's wifi SSID (Service Set Identifier).
Hidden SSID	A checked option means that the wifi network is hidden.
Authentication Type	The profile's wifi authentication type (None, WEP or WPA).
Authentication Key	The profile's MCC (Mobile Country Code).
Wifi Proxy
The current network profile may or may not use a wifi proxy to connect: "None" - the network profile does not make use of a wifi proxy. "Manual" - the network profile uses a wifi proxy with specific settings (Host; Port and Bypass List) defined manually. "Automatic" - the network profile includes a wifi proxy that uses a PAC File to define the connection.
Host	The proxy's host address. This option is ONLY available if the "Wifi Proxy" is set to "Manual".
Port	The proxy's port. This option is ONLY available if the "Wifi Proxy" is set to "Manual".
Bypass List	The proxy's bypass address list. This option is ONLY available if the "Wifi Proxy" is set to "Manual".
Pac-File URL	The proxy's PAC-File (Proxy Auto Config File). This option is ONLY available if the "Wifi Proxy" is set to "Automatic".
Description	Information about the profile's proxy. This field is always available.

The "Time Period Profile Details" Page

Speech Balloon_Button

Name	The profile's name.
Description	Relevant information about the profile.
(Time Periods Table)
The time periods defined here are used to aggregate data sent by the devices. For instance, it is possible to aggregate specific data by shift. When the data is displayed in a dashboard widget, these time periods can work as a filter - they become available for selection in the dashboard. There are already 2 default time periods - one representing a full day in UTC time and another one in Local Time. These default time periods CANNOT be deleted.
Name	The name for the defined time period.
Description	Relevant information about the corresponding time period.
Start Hour	The beginning of the time period.
End Hour	The end of the time period.
Time Zone	The adopted time zone for the time period.

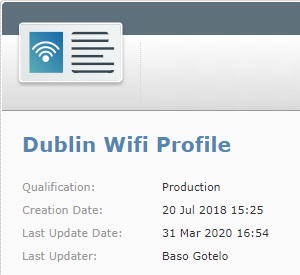

Left Panel

The left side of the page also displays information:

	(Profile icon)	- represents a Deployment profile. - represents a Network-Wifi profile. - represents a Network-Cellular profile. - represents a Time Period profile.
	(displayed in blue)	The deployment's name.
	Qualification	The deployment/network profiles's qualification ("Production", "Acceptance", "Test" or "Development"). See Qualification. Profiles can have one of 4 different qualifications: •"Production" - for deployment profiles that are used in the customer's working environment, to assist in day-to-day tasks. •"Acceptance" - for deployment profiles that are used for specific testing in an environment that mimics the customer's working environment. •"Test" - for deployment profiles that are used in more general tests. •"Development" - for deployment profiles that are used in a development environment.
	Creation Date	When the profile was created.
	Last Update Date	When the profile was updated last.
	Last Updater	The name of the user that updated the profile last.

Available Operations

To edit the details of a profile, click to set the corresponding profile page to edit mode. For more detailed information, see Editing a Profile.

To delete the profile, use the . For more information, see Deleting a Profile.

To duplicate the profile, use the . For more information, see Duplicating a Profile.

To refresh the page's view, use the button.
