Overview



Filebox is a virtual storage and forwarding space for business files. It allows for direct file exchange between the mobile devices and MCL-Mobility Platform.

The Filebox service allows the mobile devices to send data to a central location (which renders the implementing of in-house file servers to host data unnecessary).



Filebox can be organized into a shared or a private space. A shared Filebox is accessed by all the sites in the account. A private Filebox is only accessed by the site that created it (to create a site's private filebox, see Site Details).

The Filebox sub-module displays, by default, the shared Filebox content. However, if the site includes a private Filebox, the "Filebox" sub-module will only display that site's private Filebox content. It is NOT possible to access both Filebox spaces, simultaneously or alternately.



Filebox (shared or private) is divided into two areas: Inbox (which includes incoming files) and Outbox (a container for outgoing files).



Workflow between MCL-Mobility Platform's Filebox and Devices

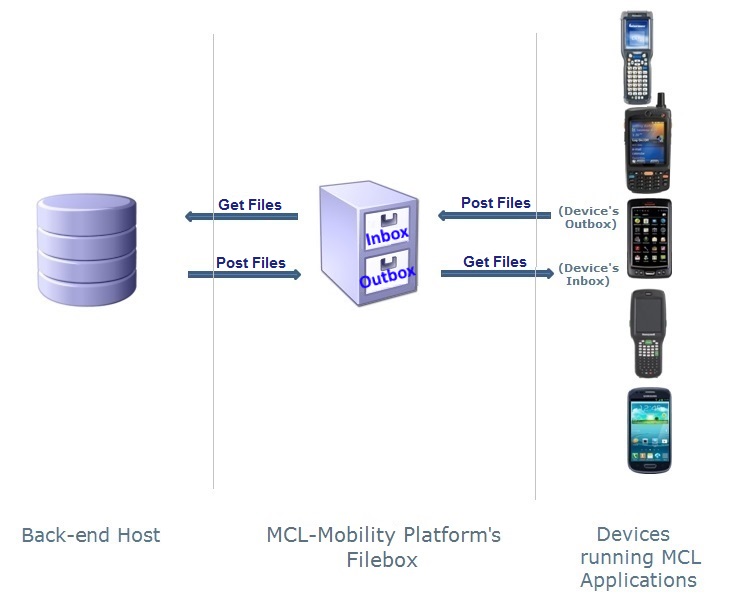

The illustration below displays the flow of information between the account's back-end host, the MCL-Mobility Platform's Filebox (with Inbox and Outbox areas) and a device's own filebox (which also includes Inbox and Outbox areas.







Incoming Files (MCL-Mobility Platform's "Inbox")



(Device) Outbox  ⇒ (MCL-Mobility Platform's Filebox) Inbox



The devices associated to your account send business files to the Inbox of the MCL-Mobility Platform's Filebox. These files are transferred by the MCL-Agent in the background.

Those incoming files are organized into the same directory structure in Inbox as they were in the device. In other words, if an incoming file was included in folder "123", Inbox will create a folder "123" to contain the file. If a file was stored in the device's root directory, the file will be sent to the Inbox's root.

Once the file transfer is complete, the files are removed from the device's Outbox.



In terms of Inbox management, you can:

•define archive/deletion rules for the files added to Inbox.

•organize the incoming files into folders you create according to your own criteria.

•Retrieve the files for processing. This can be done manually (you can locally download all or the intended files) or automatically - a back-end can call a web service that periodically poles the Inbox area and retrieves the files it finds and downloads them into the back-end (ex: MCL provides a service that allows you to automatize file downloads/uploads within Filebox named Filebox Back-end Service).



Outbound Files (MCL-Mobility Platform's "Outbox")



(MCL-Mobility Platform's Filebox) Outbox  ⇒ (Device) Inbox



All outgoing files (intended for the account's devices) must be placed in the MCL-Mobility Platform's Outbox. This can be done manually (files uploaded into the Outbox area) - or automatically, meaning, a back-end can call a web service to access Outbox and upload the intended files (ex: MCL's Filebox Back-end Service).



Files can be sent to all the devices associated to the account or to specific device or operator groups:

•Files placed in the Outbox’s root are distributed to all the account’s devices.

•To deliver a file to a specific device/operator group, place the file in the target group's reference folder (every device/operator group has a reference folder associated to it). For instance:

▪If calling a web service, make sure that the target group’s reference folder is included in the proper parameter's path.

▪If creating a folder in Outbox, rename it according to the corresponding reference folder (you can check the name of the reference folder in the target group's "...Details" page). Whenever a device or operator group is created, MCL-Mobility Platform suggests a reference folder but you can create a folder in Outbox and, then, associate it to a device or operator group (see To Associate an Outbox Folder to an Element's Profile).



Once a device connects to the platform, the files included in the Outbox area of the MCL-Mobility Platform's Filebox are automatically synchronized to the target element's Inbox.

If you create a sub-folder within Outbox and upload files into it, those files will NOT be delivered to the intended operator or device group unless you specify the sub-folder as the target element's reference folder in the corresponding "...Details" page ("Filebox Name" or "Filebox Sync Folder" option).





An external system can access the filebox 's private or shared spaces via web services (ex: Filebox Back-end Service). To access the shared filebox, the external system needs to use the Account Administrator's user role credentials. To access the private filebox, the external system needs to use the Filebox User's credentials.

Ex: To access the filebox web services, you will have to:

a. Go through the http authentication to ensure a connection to the account with the use of the "filebox password" (see "Account Details" - Service Passwords tab).

b. Use the account administrator's credentials (login and password). This will redirect you to the shared filebox area.





Filebox Sub-module



To access the Filebox sub-module, click and, in the resulting row below, select .

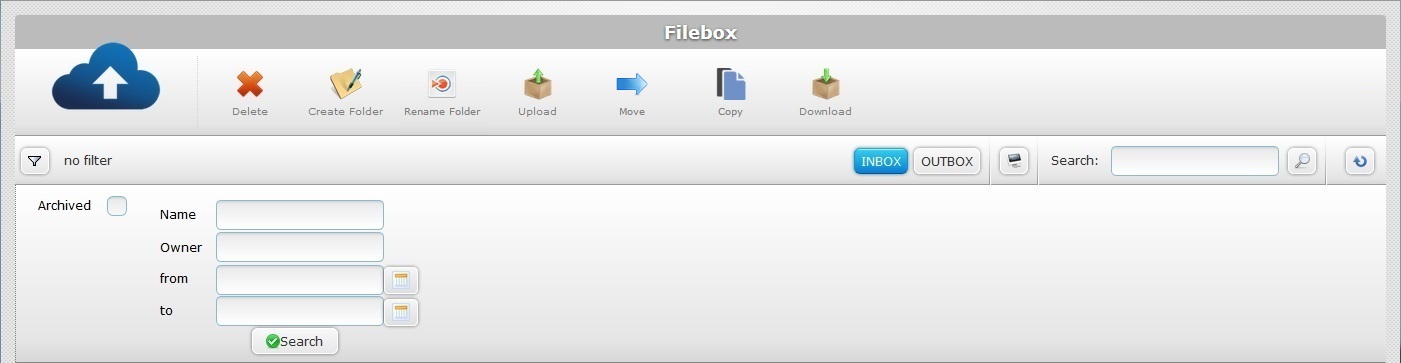

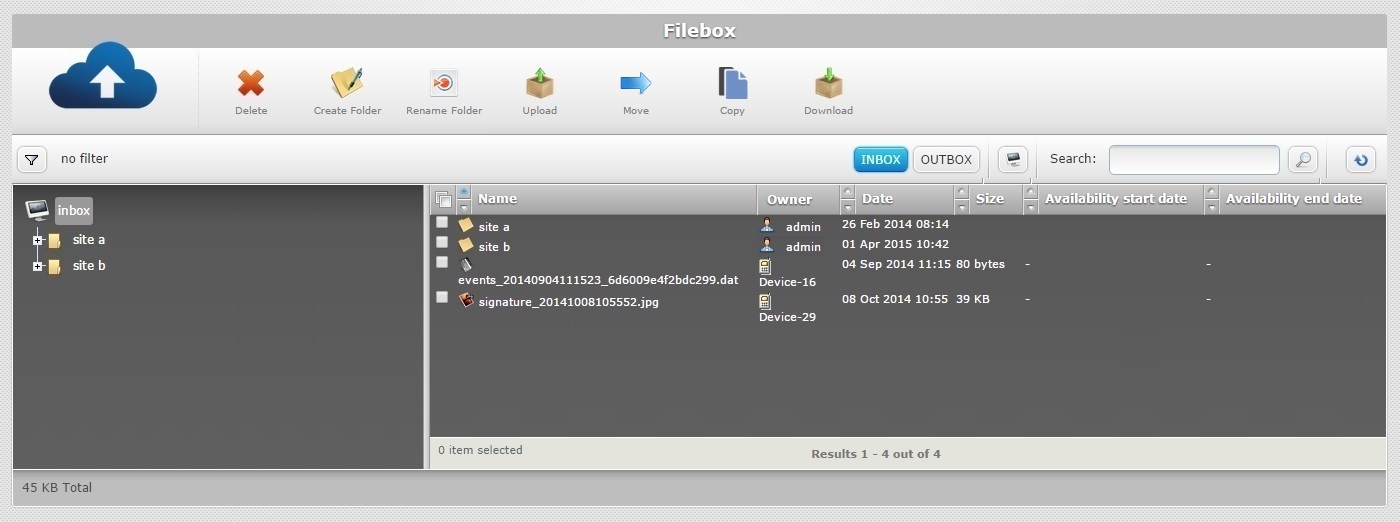

The image below illustrates the page that is accessed when clicking .







Filebox Areas



The MCL-Mobility Platform's Filebox is divided into two main areas:



•Inbox (it includes incoming files from the mobile devices).

•Outbox (a container for outgoing files to the mobile devices).



By default, the Filebox page opens with the Inbox area, but you can change the display to the Outbox area.

Use the and buttons to change the view accordingly.

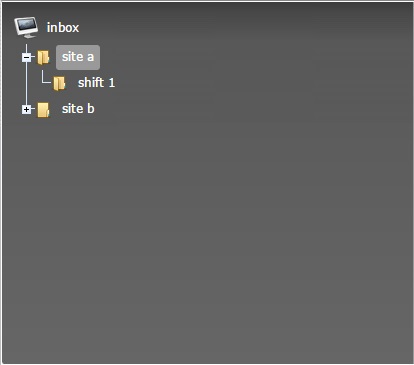

Regardless of the selected area (Inbox or Outbox), the existing folders are displayed in a tree view on the left section.



OR



Use this section to view the folders included in each area as well as the sub-folders included in each folder. To do so, double-click the selected folder OR  click the corresponding to expand its content. To hide it again, click .

The expanded content is, also, represented in a tree view.



The sub-folders/files can be viewed with greater detail on the right section.

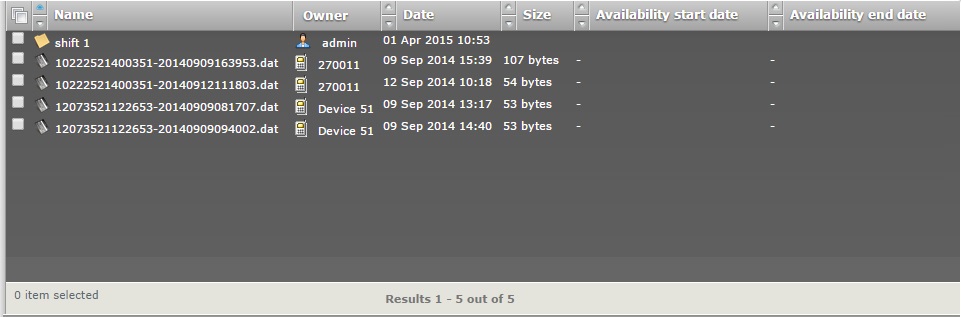

The right section displays the content of the folder selected in the tree view (left section).





Inbox Area





This area displays the following information:

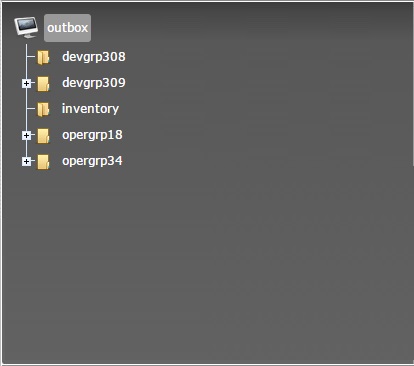

Outbox Area





Outbox displays reference folders of device or operator groups that have received files as well as the folders you create. These folders are used to synchronize files between the MCL-Mobility Platform's Filebox and a device/operator group's own filebox. Any files sent to a device/operator group's reference folder will be redistributed to all the devices/operators included in that device group/operator group.

When you create a device group and/or an operator group, MCL-Mobility Platform suggests a reference folder to be used as a synchronization folder with the device/operator group (this information is available in each device/operator group's profile).



This area displays the following information:







The "Filebox" page (Inbox or Outbox areas) also offers the following options:

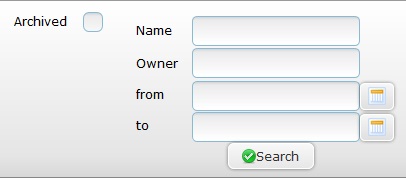

•Use this button to display hidden options. In this case, when clicked, it expands to display an advanced filter:





Use one or all of the following search parameters:





After having defined the advanced filter parameters, click to proceed.

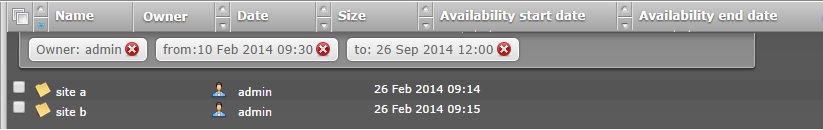

The filters you added are displayed in the right section:





If you want to delete any filters, either empty the corresponding box in the advanced filter option and click OR  click the corresponding filter's , in the right section.





• Use these buttons to display either the Inbox or the Outbox area.



•Use this button to open an information window. The displayed information will concern the currently open area (Inbox or Outbox). See Detail of an Information window.



•Use the search box to look for specific list items:



a. Enter what you want to search for.

b. Click or press <ENTER> in your PC keyboard to initiate the search.

c. To conclude the search operation, empty the search box and click or press <ENTER> in your PC keyboard.





•Click this button to refresh the page's information.



•Use the buttons, included in this bar, to organize the listed items of the corresponding column:

•by ascending order.

•by descending order.



•Click this button to select the listed items on display. In this case, the folders/files/sub-folders.



•Use and , before the folder name, to navigate to sub folders within a folder.

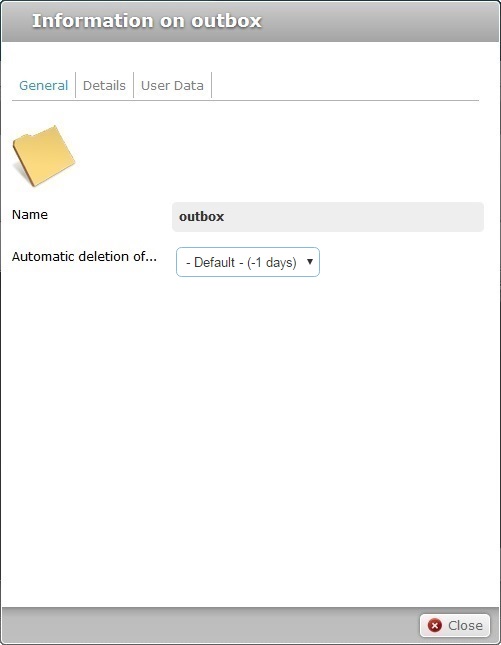

Detail of a Filebox Area's Information on... Window



Use to open an information window on the currently open Filebox area (Inbox or Outbox).

This window consists of three tabs ("General", "Details"and "User Data"). Only the "General" tab, open by default, is editable.



General tab





The "General" tab presents the following information:





For more information on how to delete archived files, see Deleting Folders/Files in Filebox.

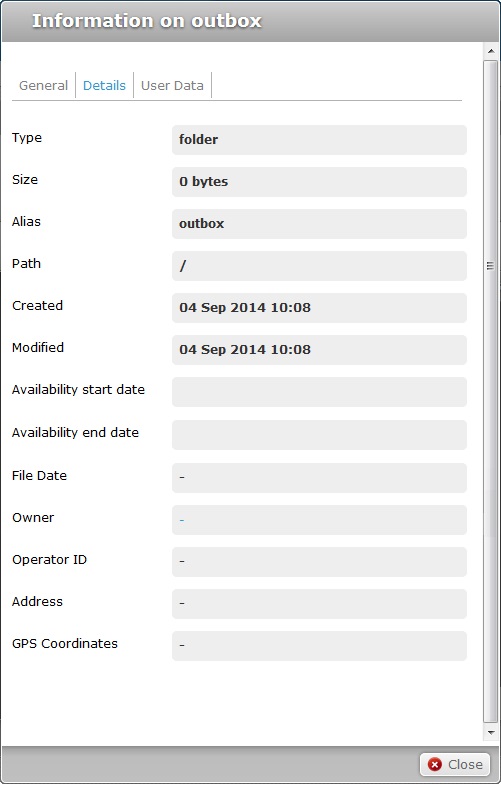

Details tab





The information this tab provides does NOT apply to Inbox/Outbox.



User Data tab





The information this tab provides does NOT apply to Inbox/Outbox.





Available Operations in the Inbox and Outbox areas



To delete files/folders, use the button. For more information, see Deleting Folders/Files in Filebox.



To create a new folder, use the button. For more information, see Creating a New Folder.



To edit a folder, use the button. For more information, see Editing a Folder.



To upload files into a folder, use the button. For more information, see Uploading Files to Filebox.



To move files, use the button. For more information, see Moving Files.



To copy files, use the button. For more information, see Copying Files in Filebox.



To download files/folders, use the button. For more information, see Downloading Files/Folders from Filebox.





This chapter includes the operations available in the Filebox sub-module and the user profiles that have access to them:



Keep in mind that the Account Administrator and/or the Site Manager, at a lower level, can restrict other users' access rights. This user guide is presenting all the possibilities in terms of access.
