Navigation:  Managing a Site > Applications > Applications



Overview



The "Applications" sub-module relates to the uploading and viewing of applications.

In the MCL-Mobility Platform context, an application is a software tool that, once installed in a device, allows the operator to perform tasks such as an "Inventory" or a "Picking" operation.

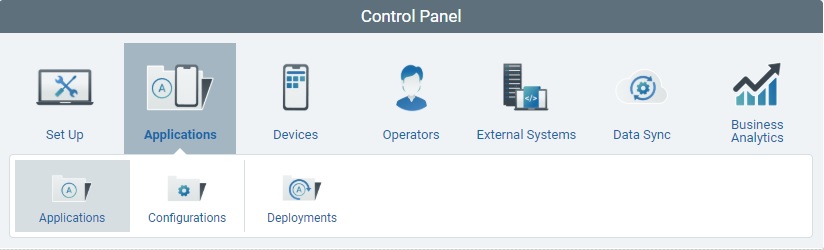

To access the "Applications" sub-module, click , in the "Control Panel" section, and, in the resulting row, select .

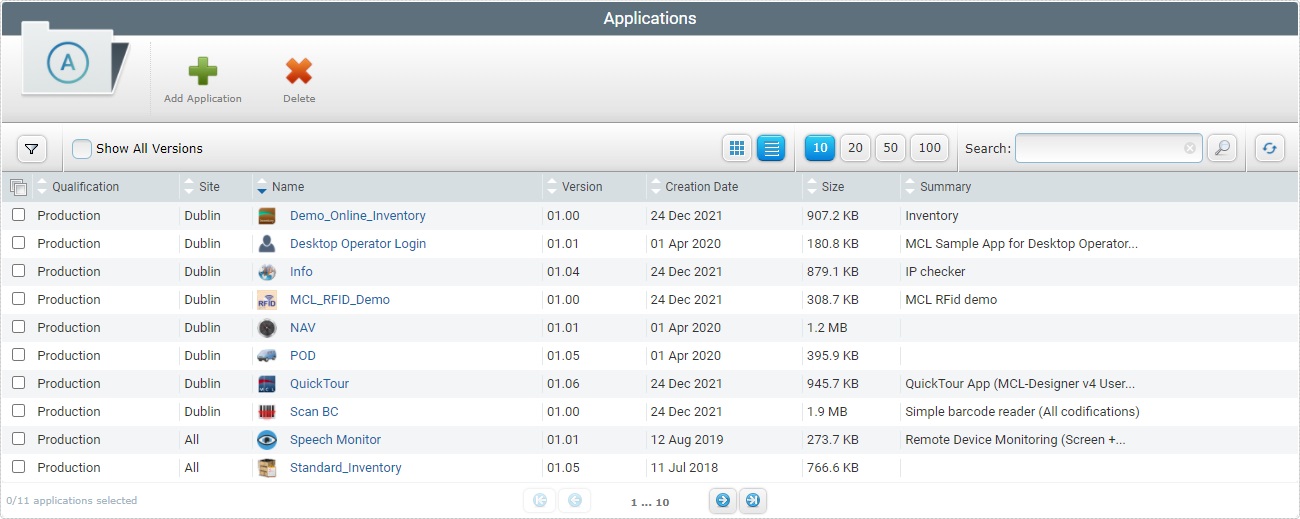

The image below illustrates the page that is accessed when clicking .





Applications added in a site are restricted to that site and CANNOT be shared by other sites in the account. If you want to make an application available to other sites, it must be added at account level.



Information regarding the applications can be displayed in a grid or a list view. By default, applications are displayed in a grid view but the view can be changed.

Click or to select the most appropriate view:



•Click for a grid view.





This view displays the following information:





OR

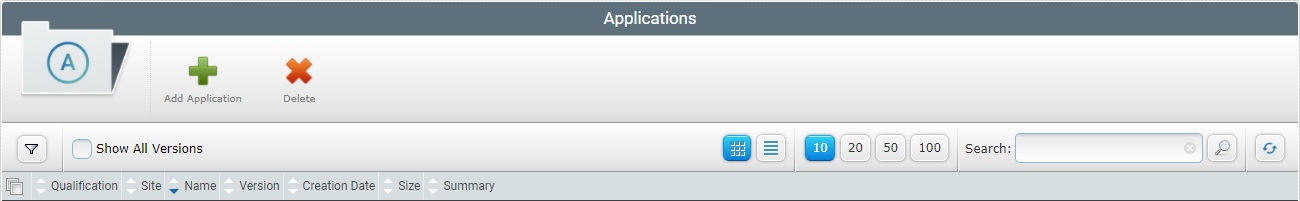

•Click for a list view:





This view displays the following information:





The "Applications" page also offers the following options:





•Click this button to access the "Name", "Qualification", "Upload Date", "Author" and "Company". filters. Use them to limit the application's list:



I. Enter data in the required fields/select from the drop-down. You can use as many filters, simultaneously, as necessary.

II. Click to filter the list according to the data you added in the "Name", "Author" and/or "Company" fields. The "Qualification" and "Upload Date" filters have a drop-down so they are applied automatically to the application's list.

III. Click to empty all the filters simultaneously OR  click the button of the field you want to clear OR  select the "All" option in the corresponding drop-down.



• Check this option to view all application versions and not just the latest version.



•Use these buttons to control how many items are displayed at a time. Click one of the available options (10 items per page/20 items per page/50 items per page/100 items per page).



Use the search box to look for specific list items:



c. Use one of the following to clean the searched data to start a new search or return to a full view:

•empty the search box and click ;

•empty the search box and press <ENTER> in your PC keyboard;

•click the icon.



•Click this button to refresh the page's information.



•Use the buttons, included in this bar, to organize the listed items of the corresponding column:

•by ascending order.

•by descending order.



•Click this button to select the listed items on display. In this case, the applications.



•Click the application's name (displayed in light blue) to access a page with the details of a particular application. See Application Details.



•Use these buttons, located in the page's footer, to navigate the listed applications:

•These buttons allow you to navigate between the next/previous grouped items per page.

•These buttons are used to navigate to the first/last grouped items per page.





Available Operations



The "Applications" page also provides direct access to specific operations:



To add a new application, use the button. For more detailed information, see Adding an Application.



To delete an application, use the button. For more detailed information, see Deleting an Application.





This chapter includes all the aspects associated to applications (application details, the adding, editing and deleting of an application). The table below refers the user profiles that have access to the described operations:





Keep in mind that the account administrator and/or the site manager, at a lower level, can restrict other users' access rights. This user guide is presenting all the possibilities in terms of access.
