Creating a Configuration
|
Creating a Configuration |
|
Overview
Configurations are containers with specific software elements (applications, MCL-software, files) directed at specific devices which are grouped according to manufacturer, model and/or OS (Device Groups).
A configuration that is created in a particular site, is restricted to that site but a configuration created at account level is, by default, a "shared configuration", meaning, it is available to all the sites that are compatible with it. The account administrator can, however, create a configuration, at account level, and restrict it to a particular site
The creation of a configuration is divided into 4 main steps/tabs - "Properties"; "Firmwares"; "Applications" and "Others". Depending on the configuration's objective it may NOT be necessary to fill in all the steps/tabs.
Ex: If you just want to install firmware into your device(s), you can skip the "Applications" and "Others" steps/tabs and just fill in the "Properties" and "Firmwares" steps/tabs OR When delivering an application to a device, the corresponding configuration requires you to fill in the "Properties" and "Applications" tabs.
Check our Configuration Examples below.
Step-by-step
1. In the Site Dashboard's "Control Panel" section, click
to access the
button.
2. Click and open the "Configurations" page.
It is recommended that the
option is checked. This ensures the viewing of all existing versions for each configuration instead of just the latest configuration version prior to adding a new configuration.
3. Click

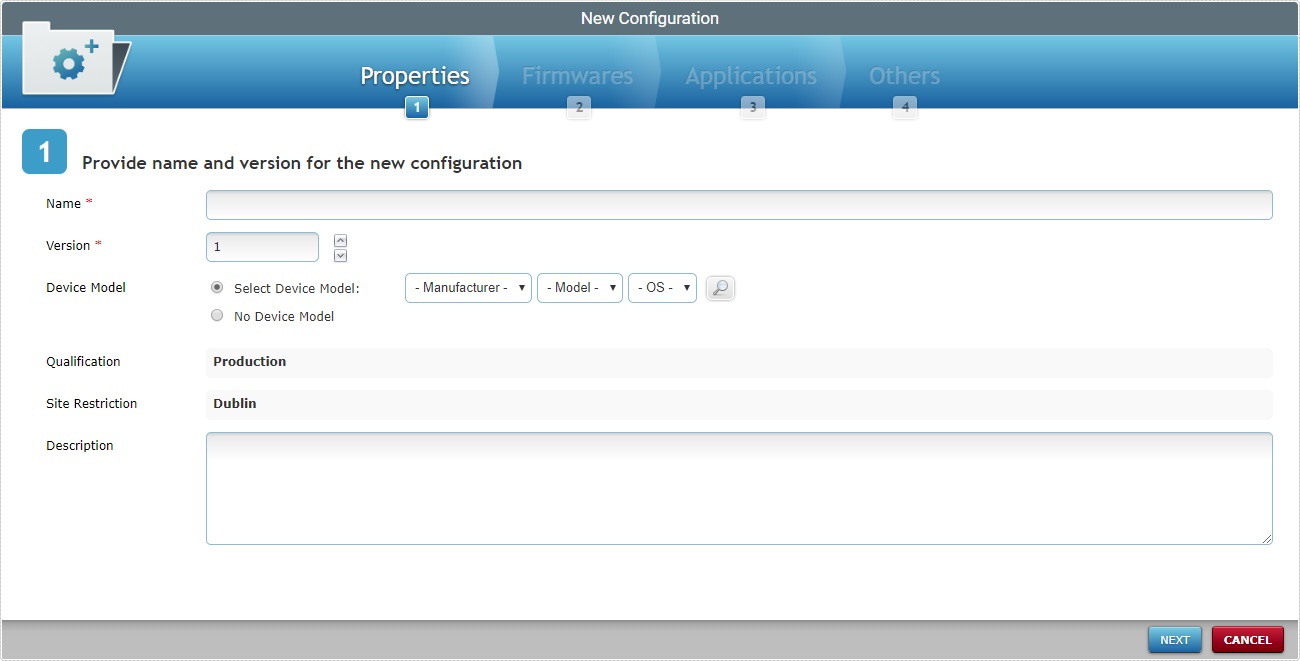

to open the "New Configuration step 1 (Properties tab)" wizard page.
Regardless of the configuration's purpose, this step/tab CANNOT be skipped.
4. Fill in the information for the new configuration (the fields marked with an asterisk are mandatory):
Name * |
Enter the name for the new configuration.
•Use alphabetic/numeric characters (a-z; A-Z; 0-9). •Underscore character is allowed. •Always start the entity's name with an alphabetic character. |
Version * |
Define the configuration's version. |
Device Model |
Check "Select Device Manufacturer" to define the manufacturer, the model and OS of the configuration's target device from the corresponding drop-down boxes. As an alternative, click
The Samsung manufacturer provides a "Generic Device Android" option - this generic "device model" is compatible with all Samsung Android devices. This means you can create a device group for "Generic Device Android" devices (it can contain different Samsung models) and deploy configurations to it. In this case, the configuration's target MUST be "Samsung Generic Device Android". It will NOT be available for other device groups with a specific Samsung device type, it can ONLY be deployed for this device group.
If required, the MCL-Mobility Platform provides a "Generic Android" software. This software should ONLY be used if there is NO specific MCL-Agent V4 software available for your Android devices because it has some limitations compared to the specific MCL firmware. Choosing "[Others]" + "Generic" + "Android" in the corresponding drop-down means that the configuration can ONLY be deployed to a device group with a "Generic Android" target device model.
Check "No Device Model" if no device target is to be specified. (Ex: Useful, if you intend to deploy a configuration to all the device groups of a site regardless of device type). |
Qualification |
Not editable. The configuration inherits the site's qualification. |
Site Restriction |
Not editable. The configuration is restricted to the site it is created in. |
Description |
If relevant, add notes regarding the new configuration. |
a. Clicking
b. Select the intended device type by checking the corresponding
c. Click
Use the following options to control the display of listed items:
•
I. Enter what you want to search for. II. Click III. End the search operation by emptying the search box and clicking
•
|
5. Click

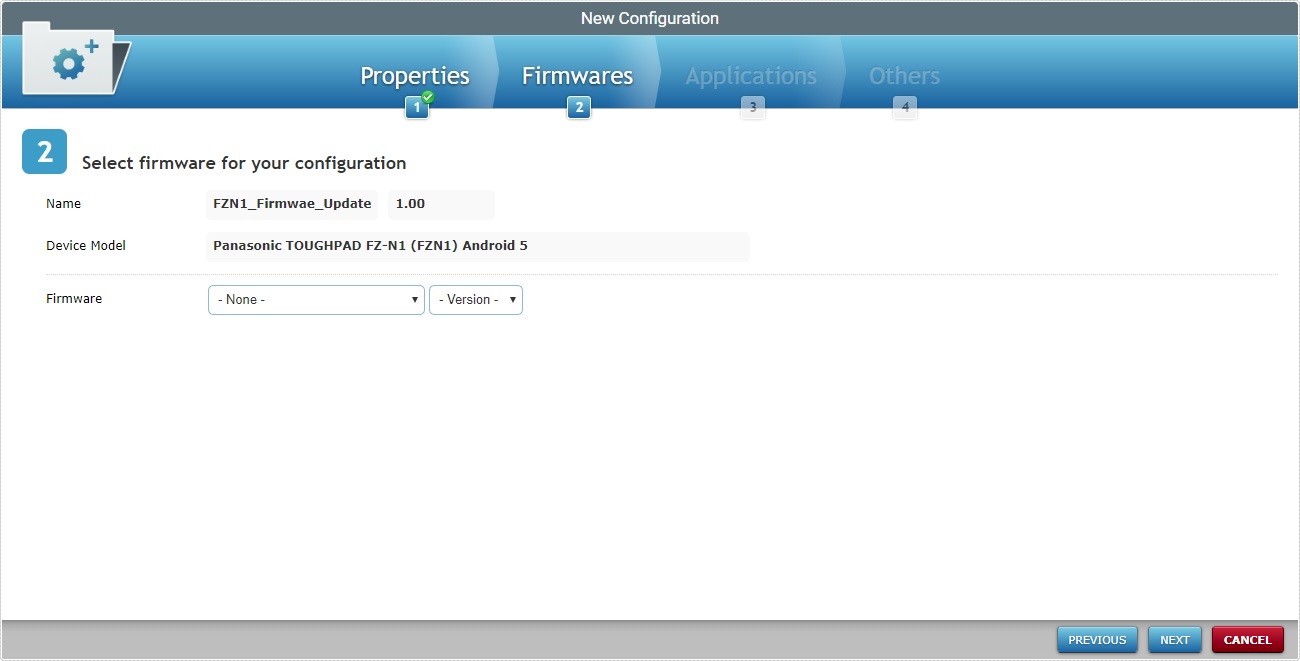

to proceed to the "New Configuration step 2 (Firmwares tab)" wizard page.
If an error message appears, check Possible Error Message(s).
You are ONLY required to fill in this step/tab, if you intend to deliver a firmware package to your device(s).
To return to the "New Configuration step 1 (Properties tab)" wizard page, click
OR
.

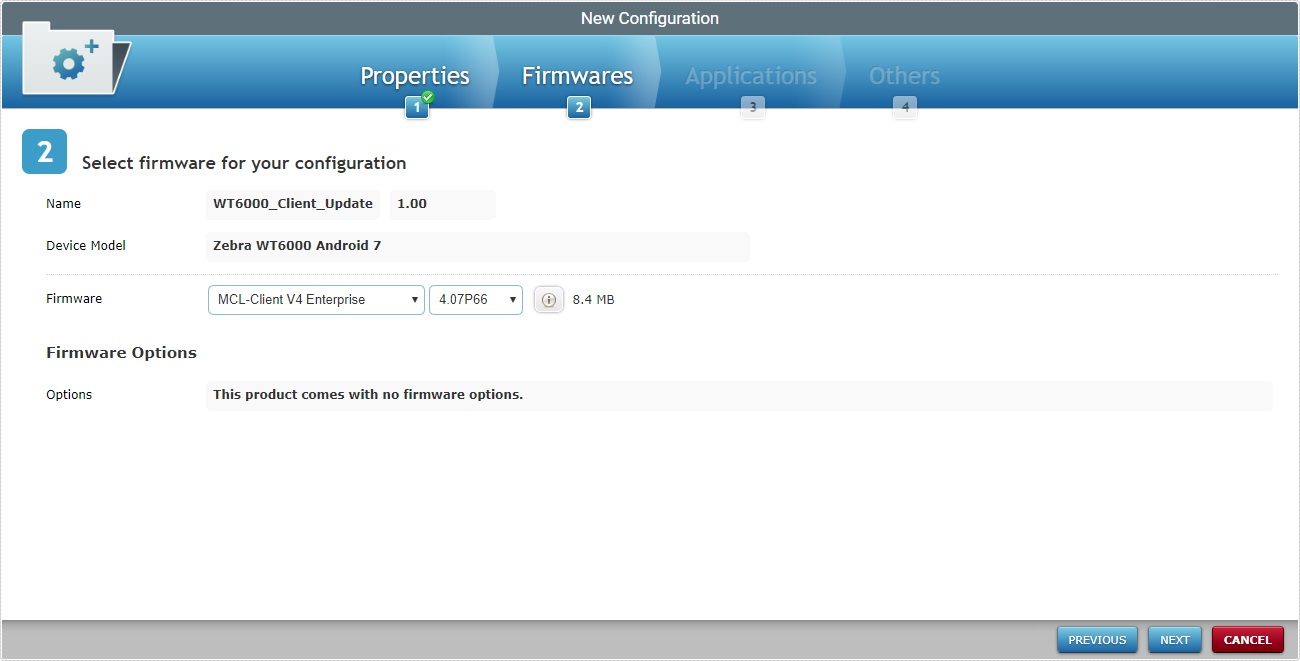

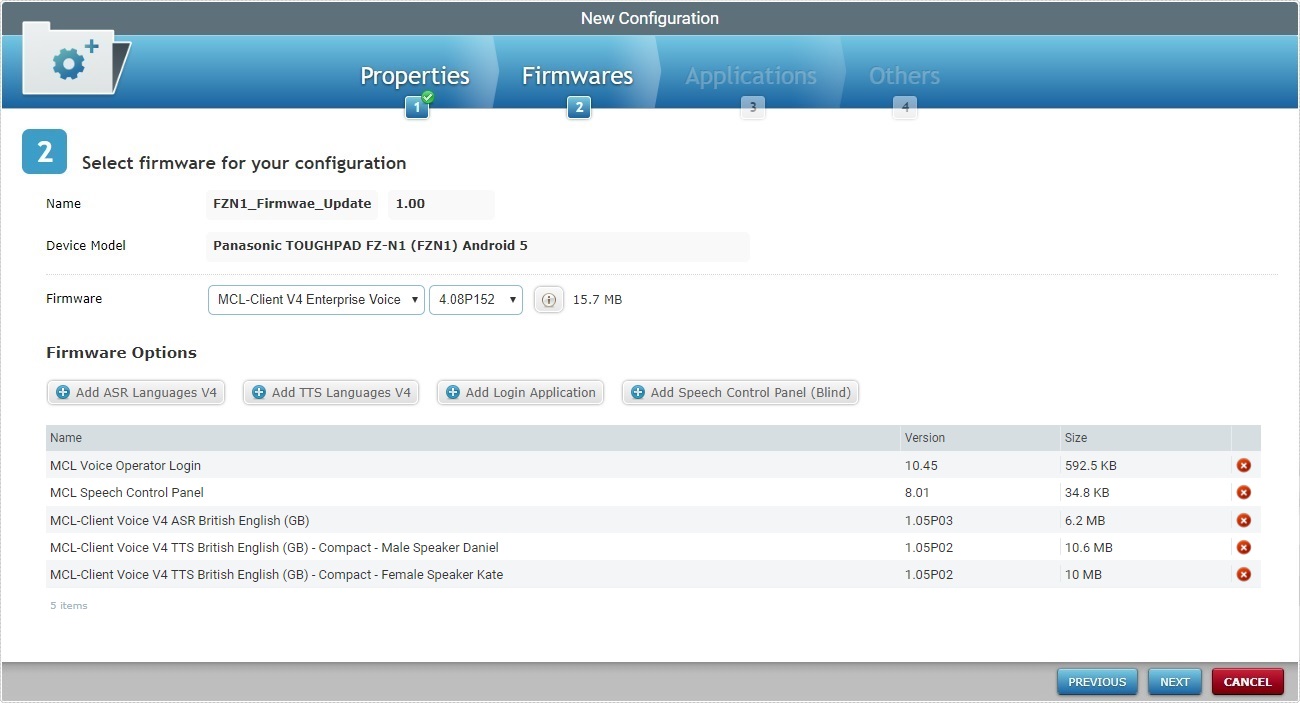

6. Select the product and corresponding firmware package version for your configuration from the respective drop-down.
Depending on the selected product/firmware package version, you may have firmware options to select.

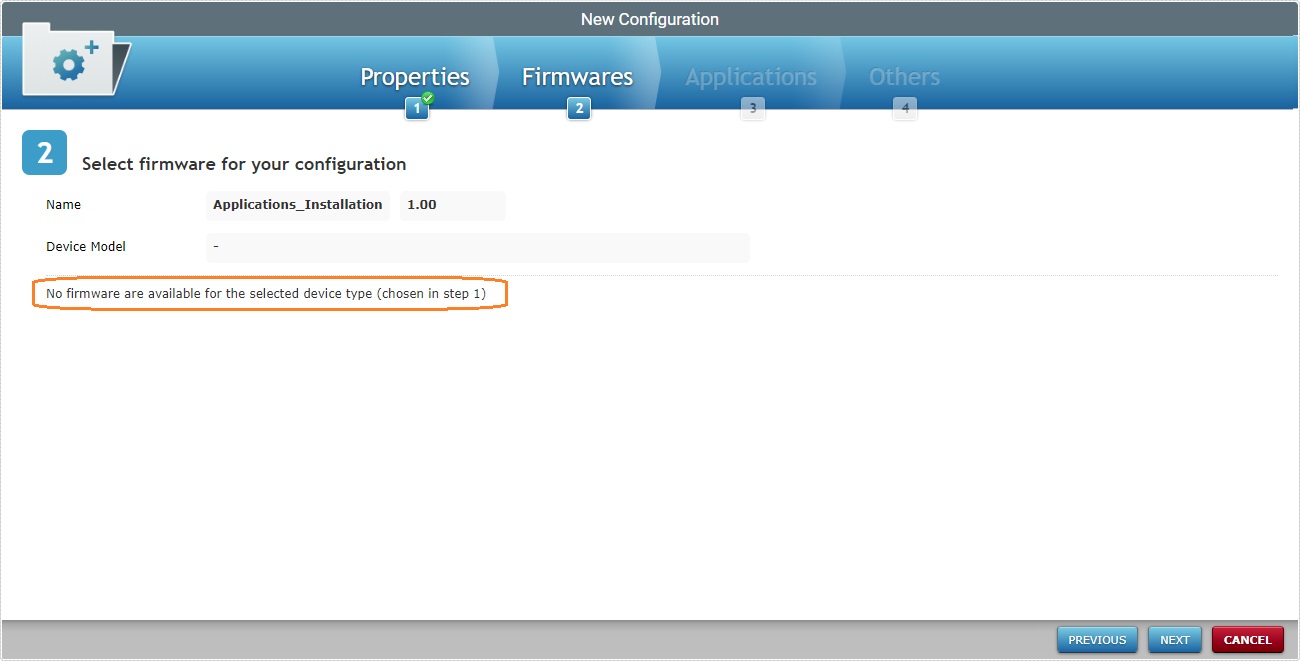

If there are no firmware options (message display: "This product comes with no firmware options."), proceed to step 8.
If there are, continue to step 7.
7. Make your selection according to the imposed rules/available options:
a. Click
and/or
to access the corresponding languages list.
b. In the resulting pop-up window, check the
of the languages you need.
The TTS languages list includes 2 possible speech models for a given language:
•The Standard TTS speech model – Uses a large speech base (encoded speech units based on natural speech recordings that are selected/concatenated as necessary). The resulting TTS is closer to a natural sounding speech.
Example of a Standard TTS languages file: “MCL-Client Voice V4 TTS French (FR) Female Speaker Audrey".
•The Compact TTS speech model – Uses a smaller speech base (the speech units are a result of a limited number of recordings which are, then, compiled together). The resulting TTS is more synthetic.
Example of a Compact TTS languages file: “MCL-Client Voice V4 TTS French (FR) - Compact - Female Speaker Audrey".
Select a Compact TTS language file OR a Standard TTS language file. There is NO simultaneous use, the device will ONLY use the file that was downloaded last
c. Click
to apply your choices.
d. If required, use the
option to add MCL's "Login Application" to the configuration. (There is a speech and a non-speech version of this application. Depending on the selected MCL product, you will be provided with the compatible version.
I. Click .
II. Check the Login Application available.
III. Click to apply.
e. If required, click
to add MCL's "MCL Speech Control Panel" to the configuration.
I. Click .
II. Check the "MCL Speech Control Panel" entry.
III. Click to apply.
[MCL-Voice Blind is an MCL product intended for specific speech environments where a screen is NOT necessary to the operator handling the MCL speech application(s) - the operator’s interaction with the speech application is, mainly, via speech input/output.
For more details, check our MCL Knowledge Base for the corresponding article. (You must register/log in to access this article.)]

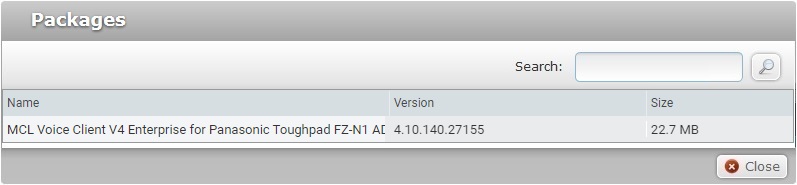

If required, click
to open a "Packages" window and view the name of the selected firmware package version.
Click
to close the "Packages" window and return to the Firmwares tab.

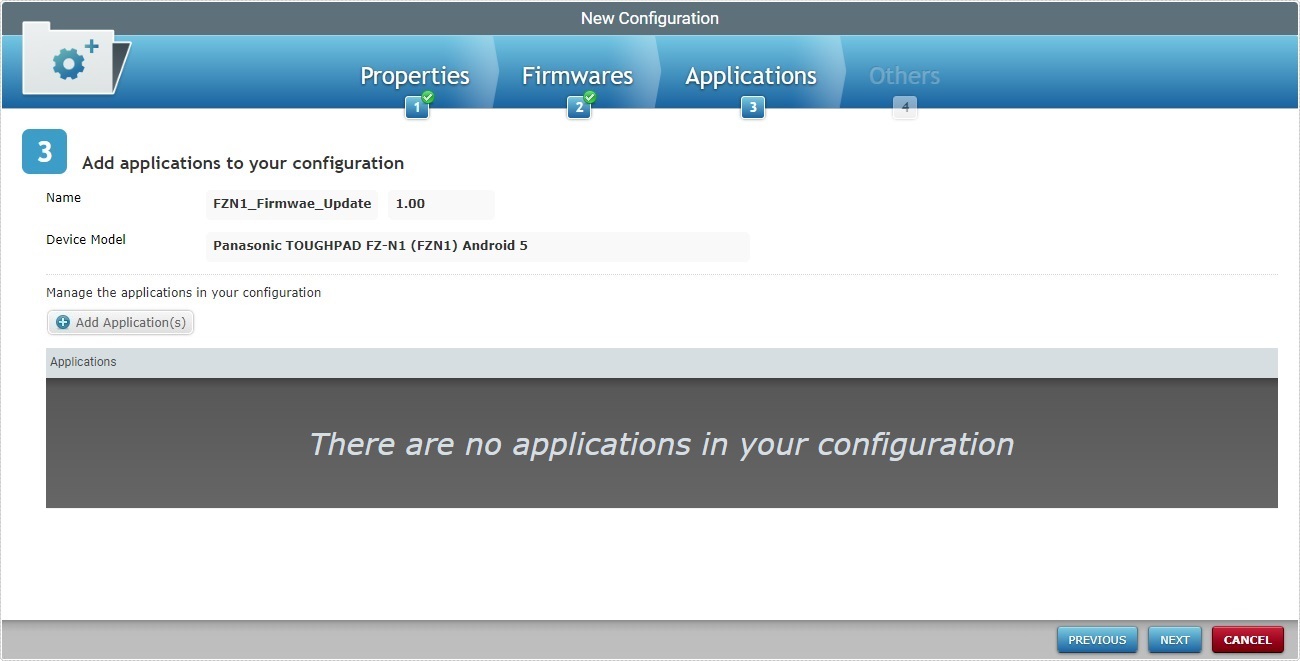

8. Click to continue to the "New Configuration step 3 (Applications tab)" wizard page.
Unless you intend to deliver an application to your device(s), you do NOT need to fill in this step/tab.
To return to the "New Configuration step 2 (Firmwares tab)" wizard page, click OR
.
Before creating a configuration, make sure you have applications available. If that is not the case, add them. For more information, see Adding an Application.
9. If required, add applications to your configuration. Click

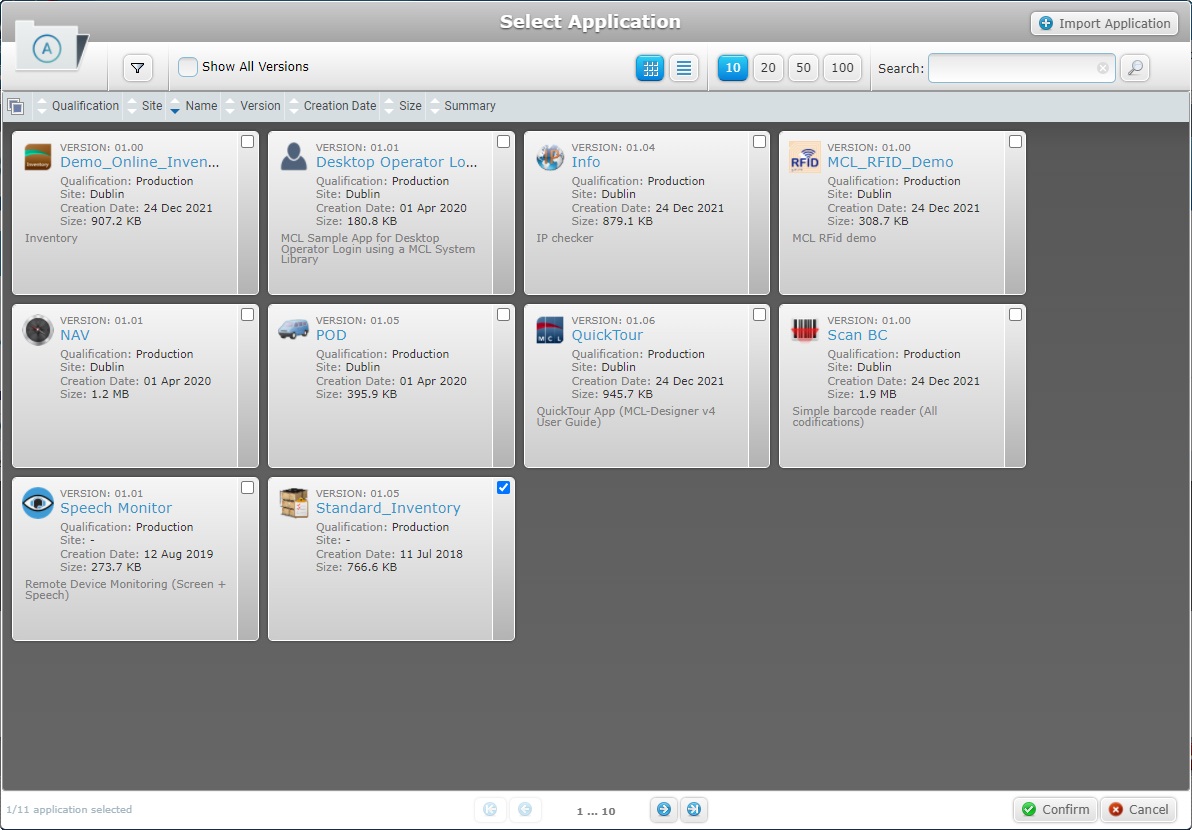

to open a "Select Application" window.
This window displays the compatible applications available to the site.
If required, use the following options to organize/filter the window's display:
•Click
to access the "Name", "Qualification", "Upload Date", "Author" and/or "Company" filters to limit the display:
I. Enter data in the required fields/select from the drop-down. You can use as many filters, simultaneously, as necessary.
II. Click
to filter the list according to the data you added in the filter fields.
III. Click
to empty all the filters simultaneously OR click the
button of the field you want to clear OR select the "All" option in the corresponding drop-down.
•Click
for a grid view (default option) or
for a list view.
• Click the intended
button to define how many items are displayed at a time (10 items per page/20 items per page/50 items per page/100 items per page).
•
(on the window's upper right corner) to filter the information:
a. Enter what you want to search for.
b. Click
or press <ENTER> in your PC keyboard to initiate the search.
c. End the search operation by emptying the search box and clicking OR Emptying the search box and pressing <ENTER> in your PC keyboard OR clicking the icon.
The application name (in light blue) is a shortcut to the application's details page. See Application Details.
10. Select the appropriate application version(s) by checking the corresponding and proceed to step 11.
As an alternative, import an application:

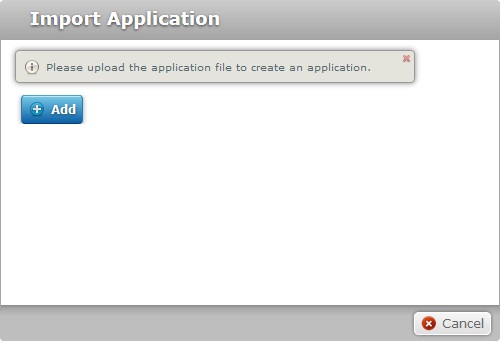

I. In the "Select Application" pop-up window, click This opens an "Import Application" window and an overlapping OS browse window.
If, for some reason, you close the OS browse window, you can reopen it with the use of the "Import Application" window (it opens at the same time as the OS browse window, in the background). Click that window's

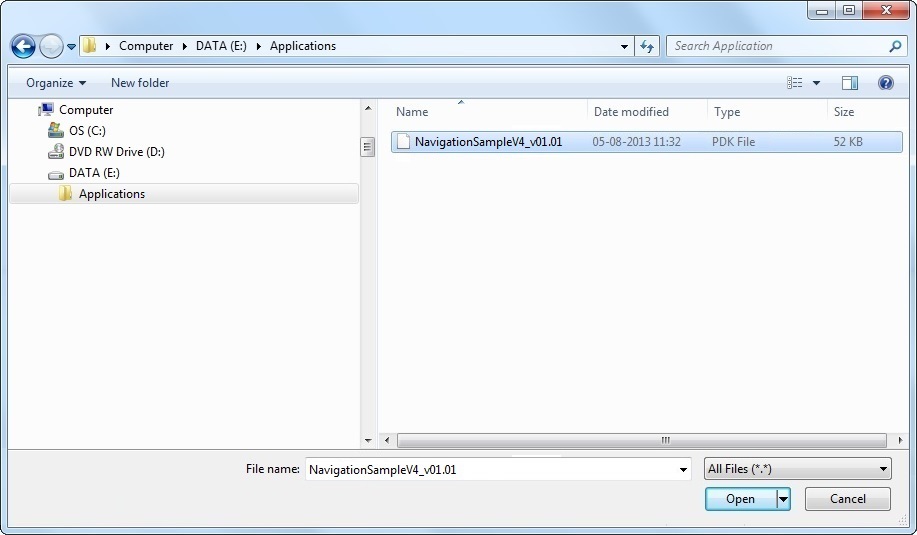

II. Browse for/select the application you intend to import and click
Any other file extension results in an error message and an aborted import. If there are any error messages, check Possible Error Message(s) to know how to proceed.
The OS browse window closes and the "Import Application" window displays the selected application file.
If necessary, you can delete added files. To delete one file, click the corresponding
III. Once you have defined the required application, click If an error message appears, check Possible Error Message(s) to know how to proceed.
The imported file is, now, displayed in the "Select Application" window.
IV. Check the
|
11. Click

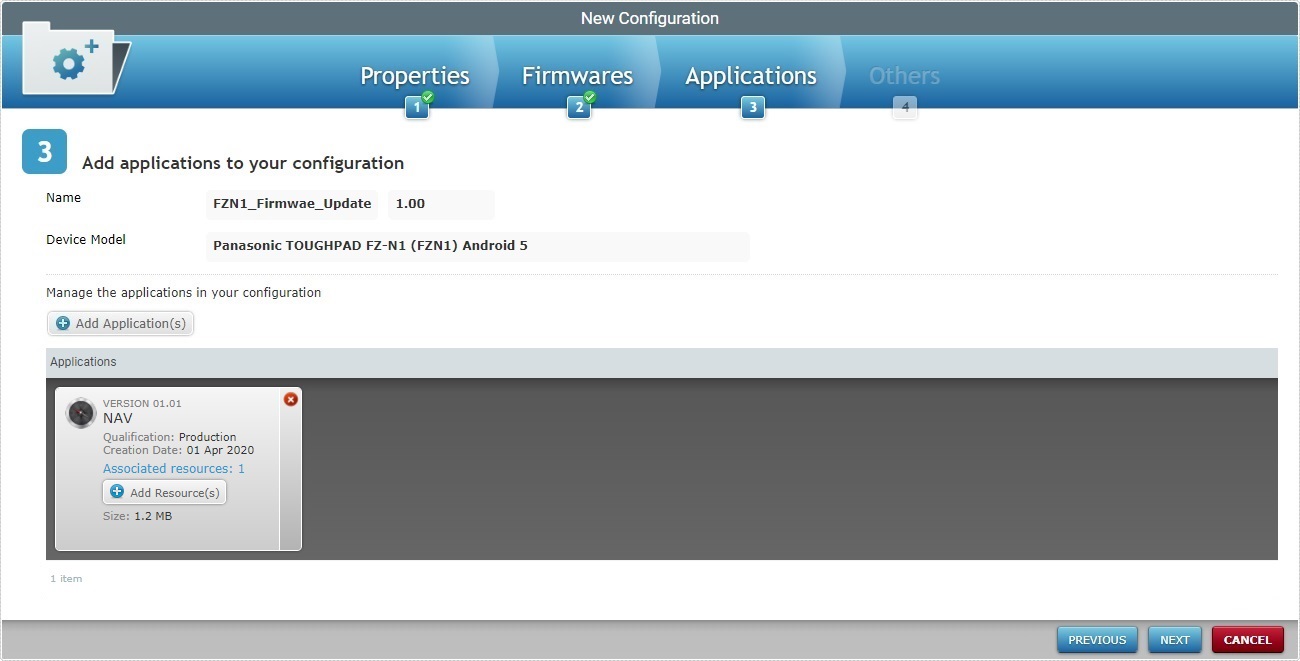

and return to the "New Configuration step 3 (Applications tab)" wizard page.
12. If required, add resources to an application. Click the corresponding
button and proceed as described below.
If you do not want to add any resources, proceed to step 13.
I. Click the corresponding
II. Select the appropriate file and click

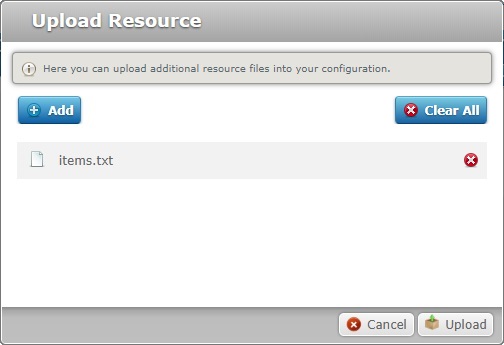

The resource file is displayed in the "Upload Resource" window.
If necessary, you can delete added files. To delete one file, click the corresponding
III. If you are done adding resources, click
IV. If required, click the corresponding "Associated resources" option of the intended application (displayed in light blue) to view or remove any resources included in each application.
Added resources can be removed from the application:
a. Select the resource(s) you want to delete by clicking the corresponding b. Click
|
13. If there are no more applications/resources to be added, click to continue to the "New Configuration step 4 (Others tab)" wizard page.

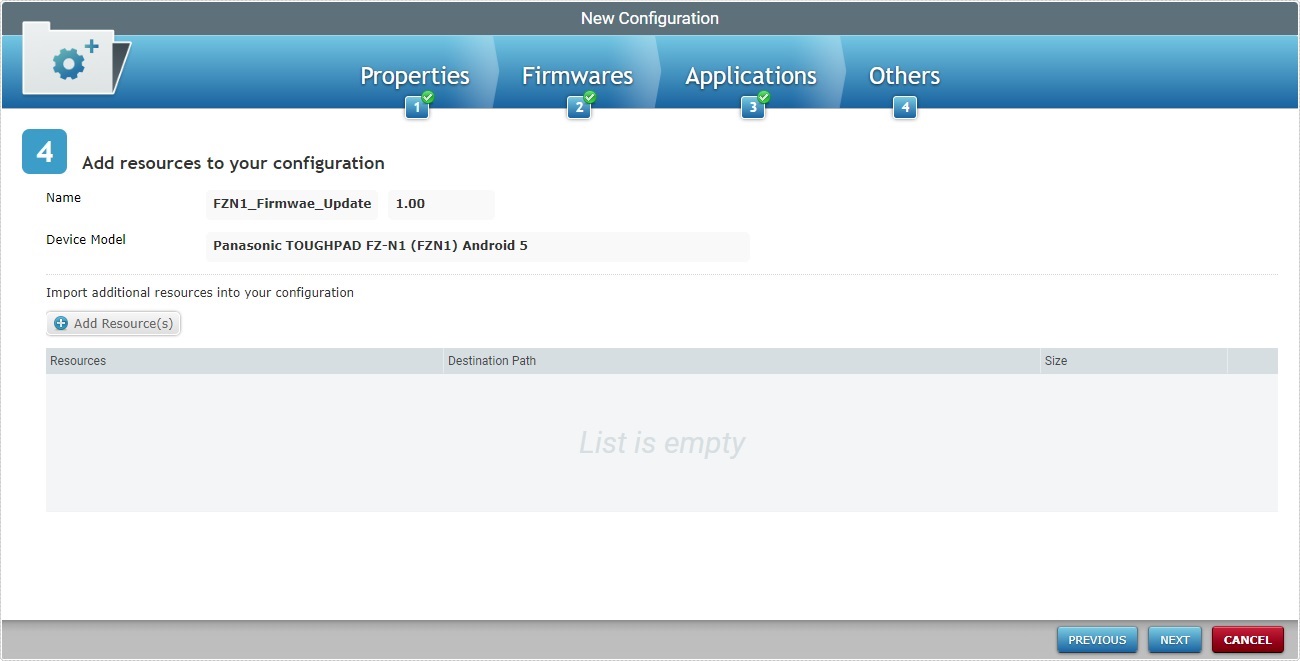

This step/tab is used to deliver all sorts of files to your devices. The exceptions are MCL firmware (save some cases, you SHOULD always use the "Firmwares" tab for that) and MCL applications (those are added to Step 3 "Applications" tab).
To return to the "New Configuration step 3 (Applications tab)" wizard page,click OR
.

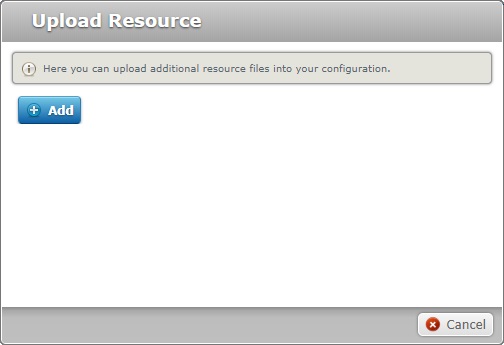

14. If required, add resources to your configuration. Click to open an "Upload Resource" window and an overlapping OS browse window.

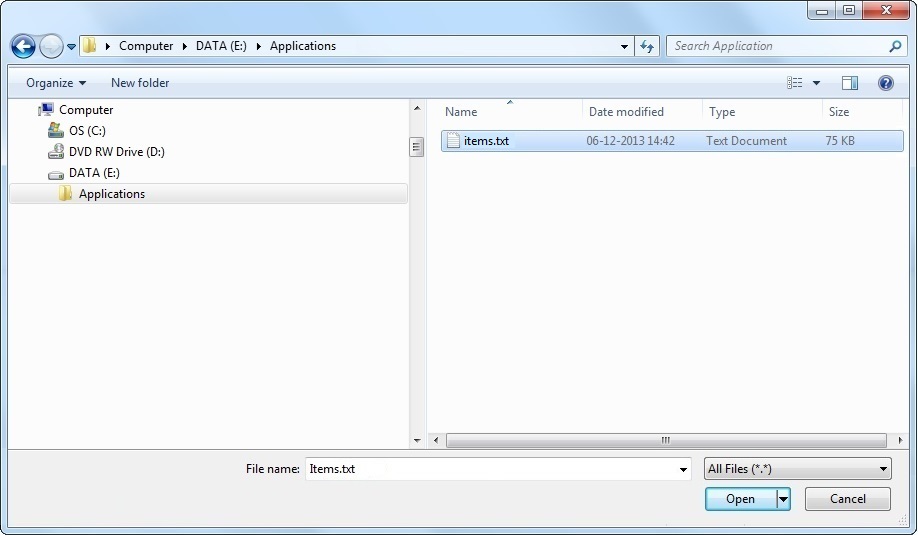

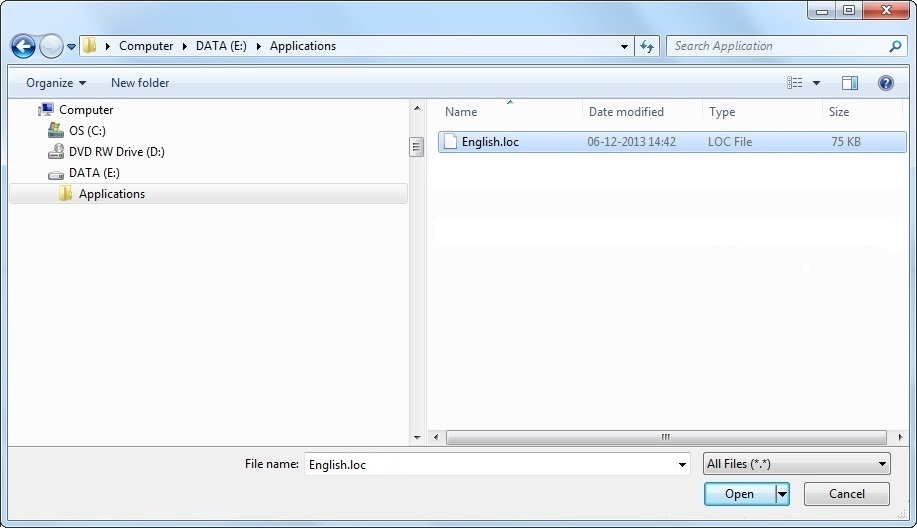

15. Select the appropriate resource and click
.
The OS browse window closes and the resource file is displayed in the "Upload Resource" window.
If, for some reason, you close the OS browse window, reopen it by clicking
in the "Upload Resource" window (it opens at the same time as the OS browse window, in the background).
If necessary, delete a file by using the corresponding
option. To delete all added files, at once, click
.
Use the button to browse for/select more resources.
16. If there are no more resources to add, click
.
If you upload files with a .pdk, an.apk or .cab extension, you do not need to enter a path. For any other file extensions, you must enter the path in the "Resources" box, in order to locate the file. To ensure compatibility with the Windows Mobile and Android operating systems, use a backlash at the beginning and end of the entered path (ex: \Temp\).
If you want to deploy files (with extensions other than ".pdk", an ".apk" or ".cab") to a known location, you can use the corresponding alias in the path.
"<APPS>", "<SHARED>", "<MCL>", "<INSTALL>" and/or "<SYSTEM>" are the available aliases you can enter. Ex: <APPS>\User_Guide\; <INSTALL>\Zebra manifest file ("*.mprf"); <INSTALL>\parameter services files ("*.dpf", "*.upf", "*apf", "*.cpf").
For more information about aliases, see "Details on Aliases" below.
MCL Alias List
For more detailed information on the "<SD>" and "<SDROOT>" aliases, register/log in to our MCL Community and access our MCL Knowledge Base (The Use of the <SD> and <SDROOT> MCL Aliases")
When entering a path, start with a backslash. This ensures project compatibility with the Windows Mobile/Windows CE and Android devices (ex: "\MCL\Apps\"running application" or "\MCL\Shared").
|
Do NOT upload MCL ".cabs" into the "Others" tab - for instance, the ".cab" files available in the MCL Technologies sites meant for an initial installation. Deploying those installation packages as a resource will interfere with the established workflow between device and MCL-Mobility Platform (ex: files can be deleted/replaced in the device). Any necessary MCL-Agent upgrades/downgrades MUST be performed in the "Firmwares" tab.
If your valid path is pointing towards a device folder that does not exist, one is created in the device.
The size limit for file uploads into the "Others" tab of a configuration is 300 Mb.
You can delete the newly added resource(s) by clicking the corresponding .

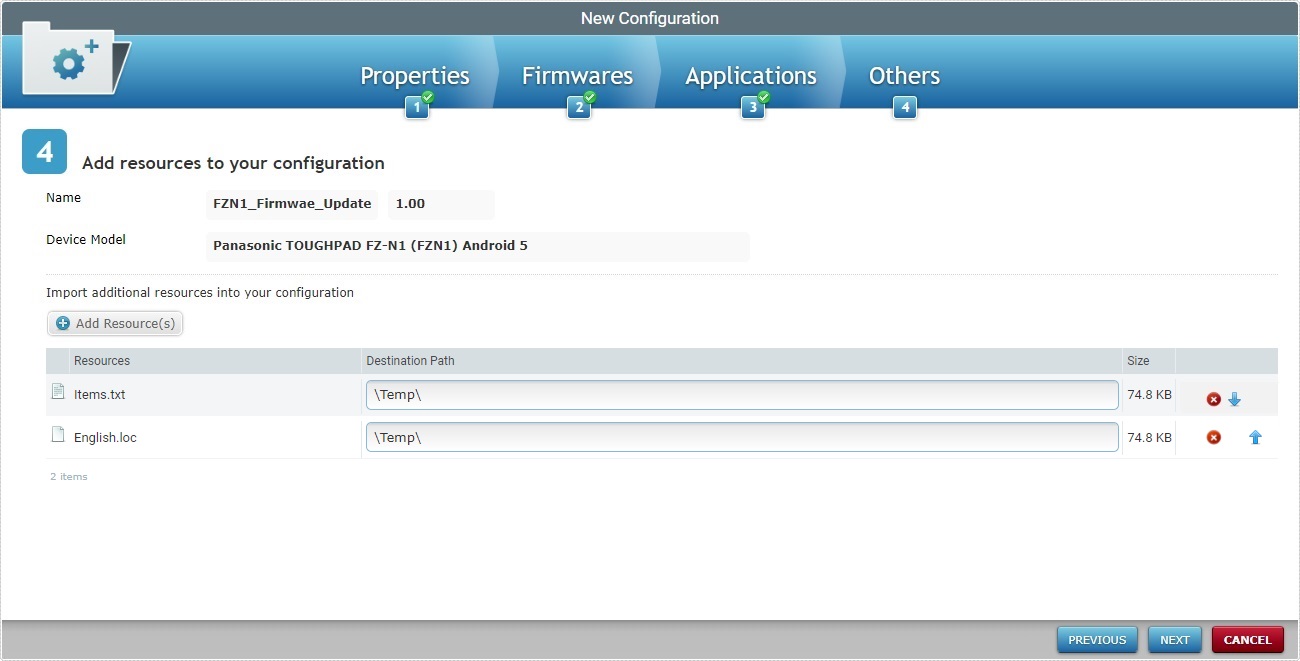

The configuration's resources will be delivered in the order they are presented in the table, from top to bottom.
Ex: The "items.txt" resource will be uploaded on to the device first and the "English.loc" file will follow.
You can change the installation order of the added resource(s) by clicking the corresponding
arrow buttons. The resources will move up and/or down accordingly.
17. Complete the configuration creation by clicking
.
If an error message appears, check Possible Error Message(s) to know how to proceed.

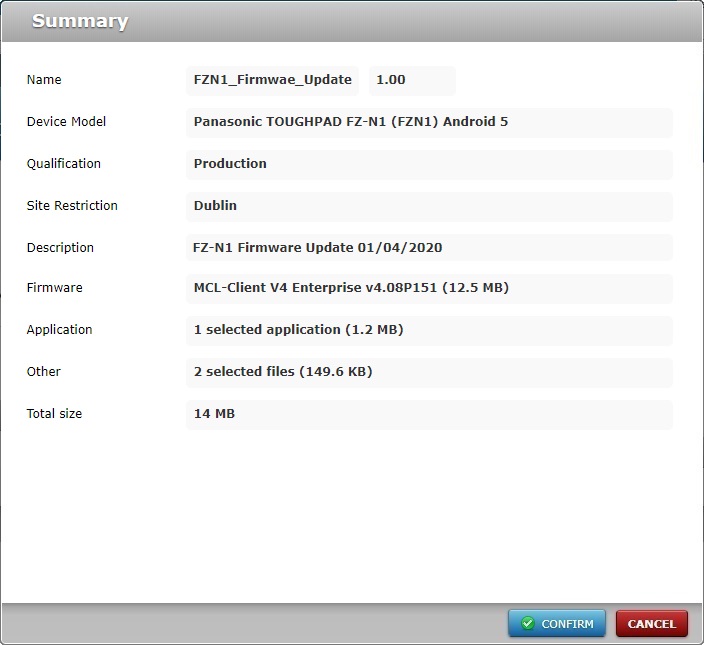

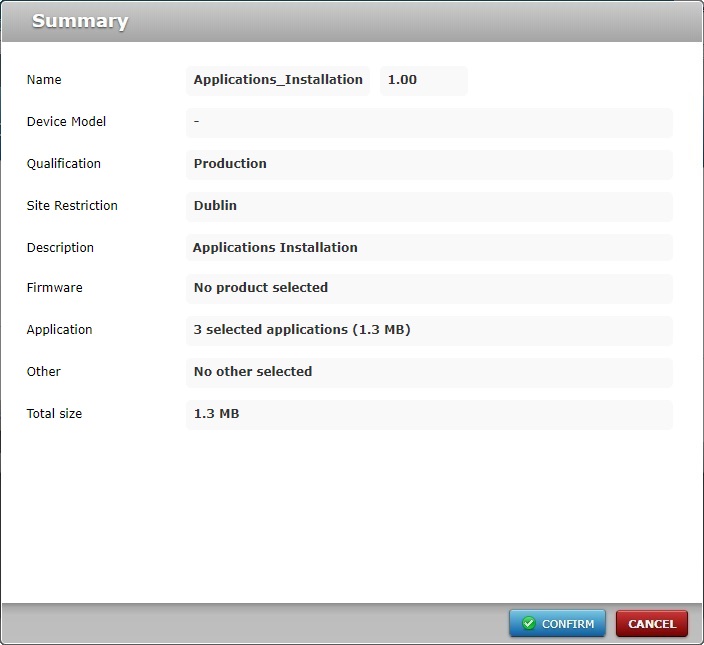

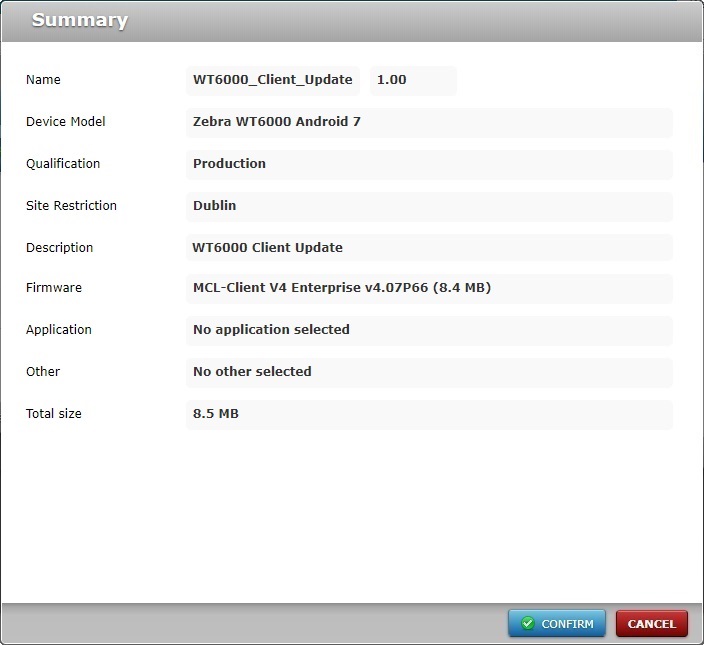

18. A summary window is displayed with the configuration's details.
19. If it all checks out, click
.
The new configuration will be displayed in the "Configurations" page.
To have a configuration deployed into devices, you must create a deployment plan. For more detailed information, see Creating a Deployment.
You can use the
buttons of the New Configuration wizard to navigate between steps.
Do NOT forget to create a deployment for your configuration, otherwise the intended elements will NOT be delivered to the device(s).
1. In the "Configurations" page, click
2. Fill in the "Properties" tab:
a. Define the name and version for the new configuration - "WT6000_Client_Update" + "1". b. Select the target device type's manufacturer and model - "Zebra / WT6000 / Android 7". c. Add a description for the new configuration - "WT6000 Client Update".
3. Click
4. Select the appropriate product and version in the corresponding drop-downs:
a. Select the device compatible MCL-Client - "MCL-Client V4 Enterprise". b. Select the most recent firmware version available - "4.07P66".
5. Click
6. Click
7. Click
|

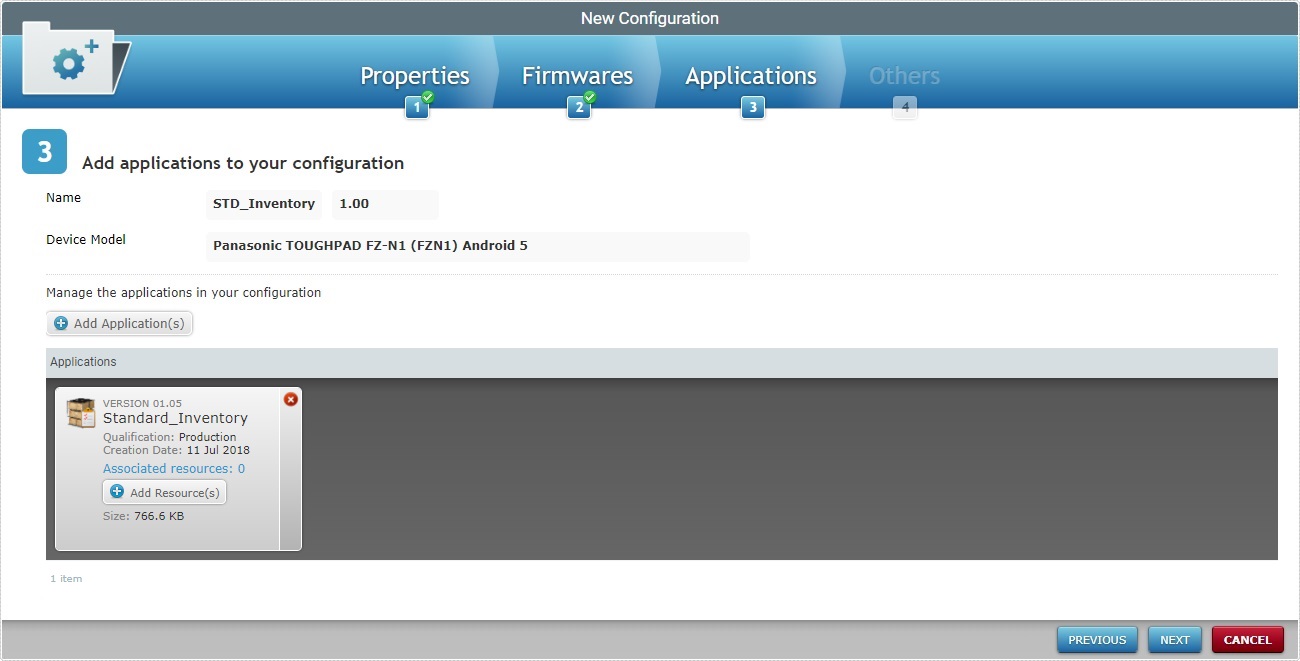

1. In the "Configurations" page, click
2. Fill in the "Properties" tab.

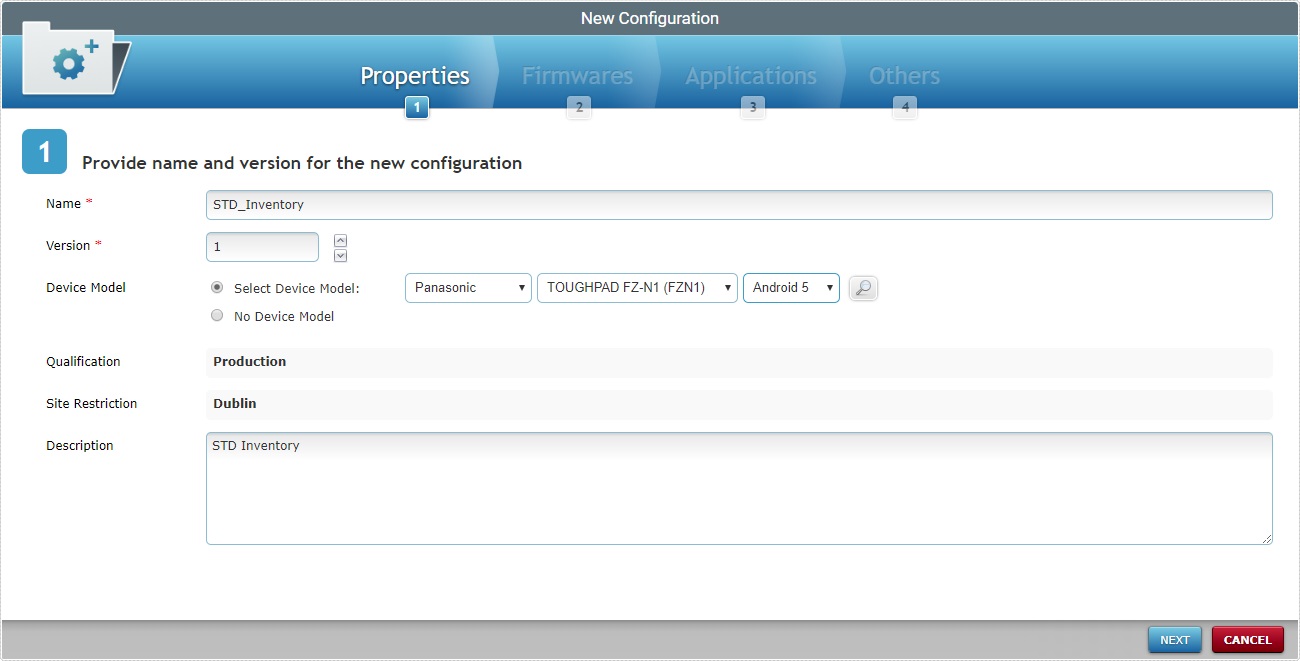

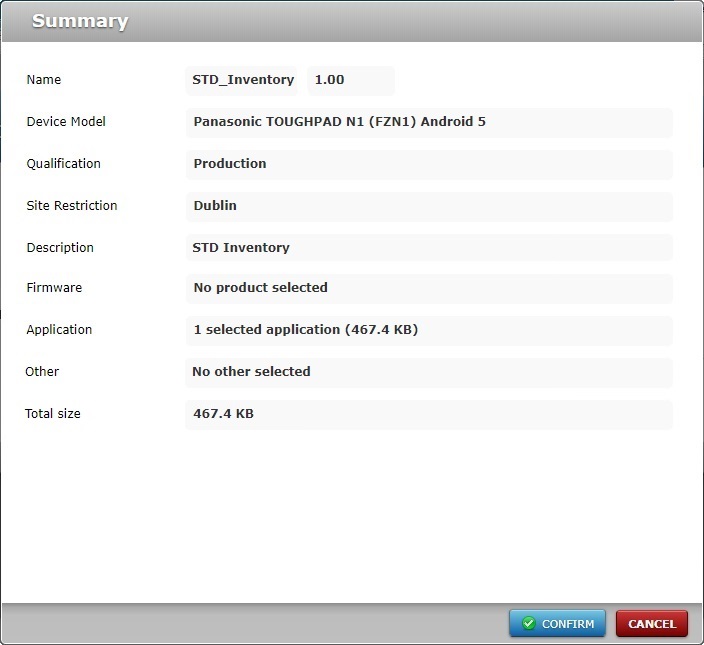

a. Define the name and version for the new configuration - "STD_Inventory". b. Select the target device type's manufacturer and model - "Panasonic / THOUGHPAD N1(FZN1) / Windows Mobile 5" + "1". c. Add note on the new configuration - "STD Inventory"
3. Click
4. Click
5. Click
6. Click
7. Click
8. Click
|

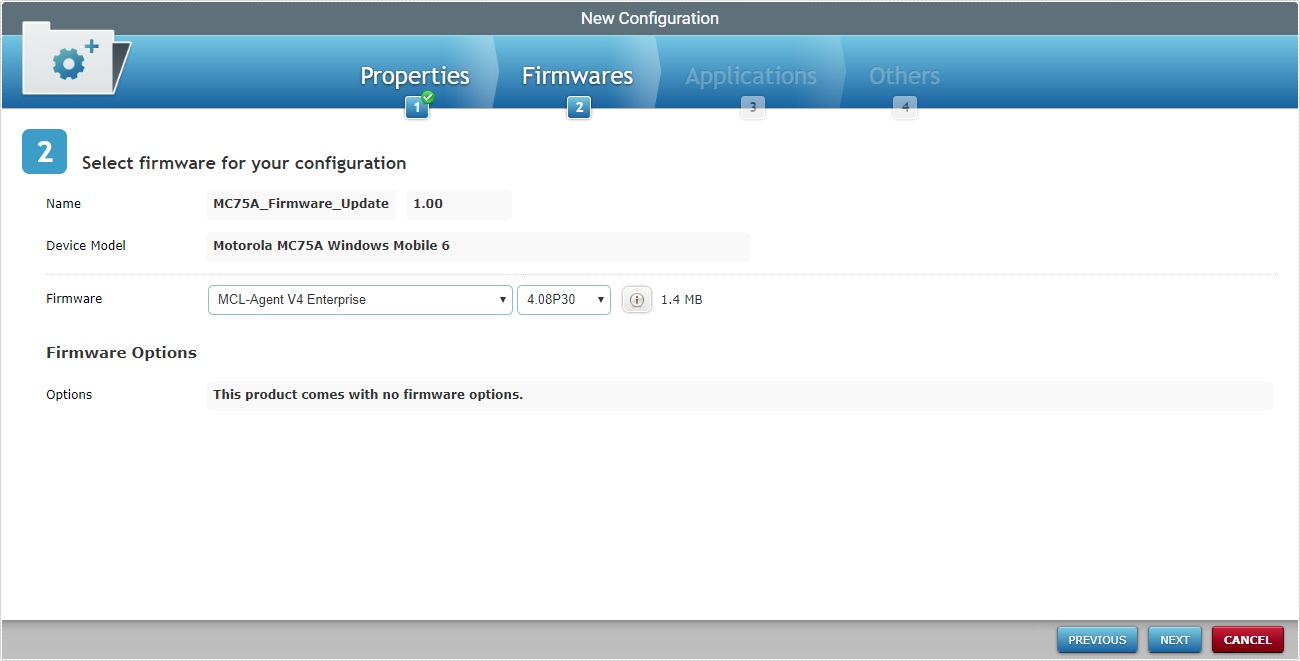

1. In the "Configurations" page, click
2. Fill in the "Properties" tab.

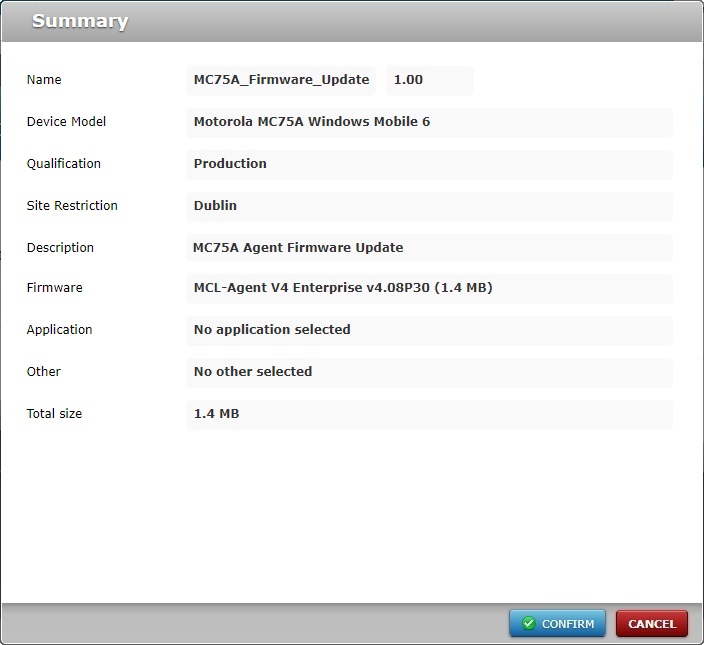

a. Define the name and version for the new configuration - "MC75A_Firmware_Update". b. Select the target device type's manufacturer and model - "Motorola / MC75A / Windows Mobile 6". c. Add information about the new configuration - "MC75A Agent Firmware Update"
3. Click
4. Select the appropriate product and version in the corresponding drop-downs:
a. Select the device compatible MCL-Agent - "MCL-Agent V4 Enterprise". b. Select the most recent firmware version available - "4.08P30".
5. Click
6. There is nothing to add to the "Others" tab so, click
7. Click
|

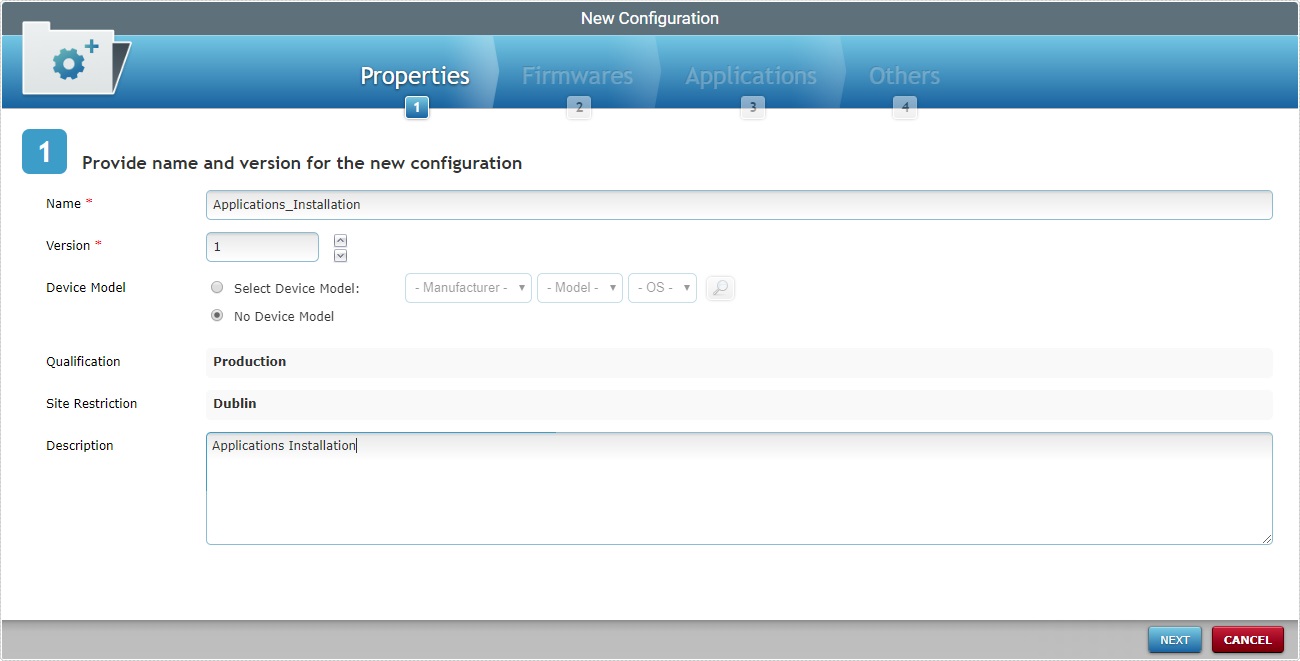

1. In the "Configurations" page, click
2. Fill in the "Properties" tab.
a. Define the name and version for the new configuration - "Applications_Installation" + "1". b. Select the "No Device Model" option for Device Model. c. Enter information about the new configuration - "Applications Installation".
3. Click
4. Click
5. Click
6. Click
7. Click
8. Click
9. Click
|
Do NOT forget to create a deployment for your configuration, otherwise the intended elements will NOT be delivered to the device(s).
Occurrence: When trying to upload an imported file.
Cause: Any imported application must have a .pdk extension.
Action: Repeat the import operation and select a file with the correct extension.
Occurrence: When clicking , on the "New Configuration step 4 (Misc tab)" wizard page.
Cause: The added resource does not have a .pdk, an .apk or .cab extension and no path was provided.
Action: Enter a path to locate the file.
