Navigation:  How to Work with Screens > Adding Input Objects to a Screen > Adding an "Input Keyboard" Object to a Screen



Object Purpose



This object is used to allow the operator to manually enter data (alphanumeric values) with the keyboard. This data is stored in a user variable and can, then, be further processed or stored. See Variable Definition.



A keyboard input box can be added to a screen by dragging an "Input Keyboard" object from the top section of the "Control" tab OR  the "Preview" section onto the screen.



Step-by-step



1. Drag the object onto the screen:



•If dragged from the "Control" tab, the object will assume the default style. (See Set Default.)



•If dragged from the "Style Preview Section", it will assume that particular style.

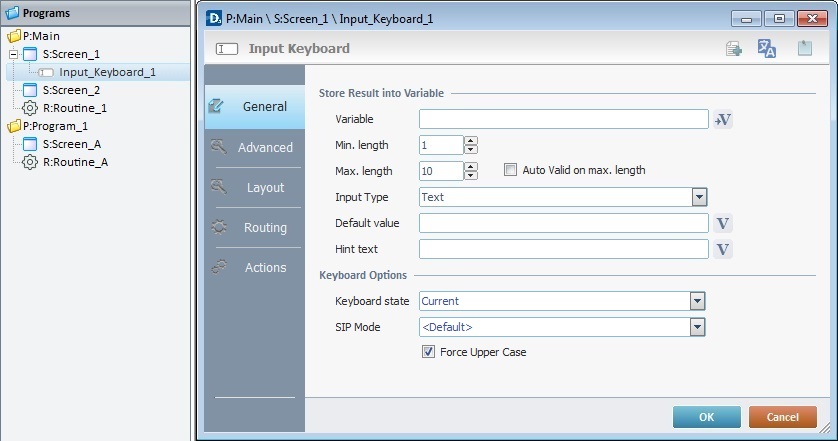

2. Now, double-click the selected object on the screen OR  the tree view to open the "Properties" window





The "General" tab is open by default.



3. In the "Variable" option, define the variable that will store the input data by clicking and creating/selecting the appropriate variable (Global or Program variable). See To Select/Create a Variable.



4. Select a minimum and maximum number of characters, for this object, that can be entered by the operator.



5. If required, check the "Auto Valid on max. length" option.



If the "Auto Valid on max. length" option is checked, an "Enter" action is executed after the device operator inputs the maximum characters allowed for that object.





6. Select the type of input ("Text"/" Secret"/ "Numeric"/" Decimal").



Input Type





7. Enter a "default value" or click to select a variable with the intended value. See Variable Definition.



8. If required, define a "Hint Text" or click to select a variable with the intended value. See Variable Definition.

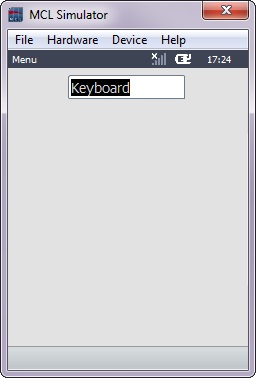

The "Hint Text" is a small text that appears inside the object. This optional feature is used as a type of operator "instruction". In this case, with an "Input Keyboard" object, the keyboard value will override the "Hint Text" and it will not appear in the device's screen.



9. Select a "Keyboard state" from the available options:





10. Select a "SIP Mode" from the available options:





11. Consider whether or not to check the "Force Upper Case" option (turns every character input by the device operator into capital letters).

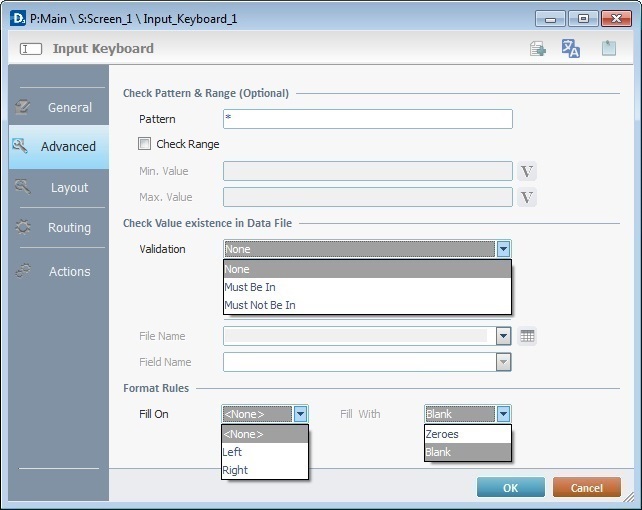

12. Click the "Advanced" tab





13. If required, specify a data pattern to filter and validate the input.

Maintain the default value (*) which forgoes any comparison OR  enter the pattern to be used for comparison.



Pattern Syntax

The pattern is constructed/read one character at a time. These are the accepted characters:



* - ignores all characters -there is no pattern to perform a comparison (default).

0 -> 9

A -> Z

a -> z

? - Ignore/continue to the next character

@ - Decimal

$ - Any numeric character

"" - Any alphabetic character

_ - Alphanumeric character



Use > to signify that from that point on, it must be of the type specified before.

$> all following characters are numeric.

_> all following characters are alphanumeric



Pattern Syntax Examples



01ZX""

The first character to be searched is 0, the second is 1, the third is Z, the fourth is X and the fifth is an unspecified alphabetic character.

The input will only be valid if it is 01ZX and an unspecified alphabetic character.



????$$$$

The first 4 characters are ignored and the following 4 characters must be numeric.

The input will only be valid if the fifth, sixth, seventh and eighth characters are numeric.



14. If you want to be more specific, check the "Check Range" box and enter the minimum and maximum values to define a range. As an alternative, you can click the corresponding and select a variable with the intended value.



15. If necessary, a keyed in value can be checked to see if it exists in a file.

a. Select between the"Must Be In" or the "Must Not Be In" options of the "Validation" box. (Maintaining the default "None" option means there will be no value checking.)

b. Select the file to be checked from the drop-down list.

c. If you intend to view/edit the selected data file, click . See Editing a Data File.

d. Select the data file field to be checked from the drop-down list.



16. If required, implement formatting rules for the data that is keyed in by the operator. (Maintain the default "None" option if input formatting is not necessary.)

a. Select "Left" or "Right" on the "Fill On" drop-down list.

b. Select "Blank" or "Zeroes" in the "Fill With" drop-down list.

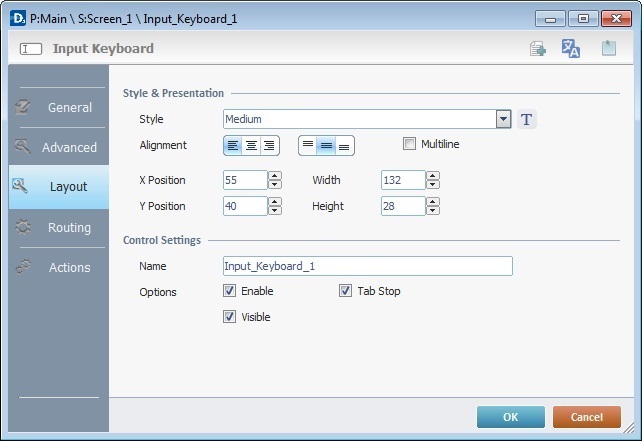

17. Go to the "Layout" tab.





18. Define the object's style by selecting an option from the drop-down list or by clicking . See Editing and Creating Styles and Editing and Creating the "Input Keyboard" Style.



19. Position the keyboard's default value (defined in step 7) within the object by using the alignment buttons.



20. If required, check the "Multiline" option to enable several lines on the object so it can display all the data that is being keyed in. This implies that, in these circumstances, the <ENTER> key loses its validating function and is only used to add a new line to the object. Since the <ENTER> key no longer validates the entered data, you must ensure validation through other means:

Ex: Click the <tab> key and the focus is moved to the next input object.

Ex: Add/use a button object in the screen - when you click the button, it triggers the keyboard's "OnChange" event (which validates the multiline data input) and, at the same time, triggers the button's own "OnClick" event.



21. Maintain the given values or specify the object's position/size, within the screen, by providing the "X" and "Y" coordinates as well as "Width" and "Height".



Detail of Position/Size values





22. In the "Control Settings", attribute a name to the object. This name will be displayed in the tree view.



23. Consider whether or not to check the following options:

"Enable"

Activates the object's input feature.

"Tab Stop"

Must be checked to enable a "Change Tab order". This provides the possibility to change the order (between data input objects) in which the information is keyed in by the device operator. See Detail of Change Tab Order window.

"Visible"

Controls the object's visibility on the device's screen.



24. Click the "Routing" tab. This tab enables work flow redirection through the testing of data input received via this particular object.

If you want to use input data test results to define different destinations, continue to(step 25).

If it is not required, disregard this tab and proceed to step 28.





25. Check the "Enable Test" box to activate the table below.



26. Fill in the 3 columns table:





Pattern Syntax

Patterns are constructed/read one character at a time. These are the accepted characters:



* - ignores all characters -there is no pattern to perform a comparison (default).

0 -> 9

A -> Z

a -> z

? - Ignore/continue to the next character

@ - Decimal

$ - Any numeric character

"" - Any alphabetic character

_ - Alphanumeric character



Use > to signify that from that point on, it must be of the type specified before.

$> all following characters are numeric.

_> all following characters are alphanumeric



Pattern Syntax Examples



01ZX""

The first character to be searched is 0, the second is 1, the third is Z, the fourth is X and the fifth is an unspecified alphabetic character.

The input will only be valid if it is 01ZX and an unspecified alphabetic character.



????$$$$

The first 4 characters are ignored and the following 4 characters must be numeric.

The input will only be valid if the fifth, sixth, seventh and eighth characters are numeric.



Use the editing icons to the right of the table to move the rows up and down and to delete or add more rows.



27. Select another location, in case the "If Condition" is false, in the "Otherwise Go To" box. Use the drop-down list OR  click . See Detail of a window below.



Detail of a window





Use the right click in MCL-Designer's input boxes to access certain features regarding the input box's option as well as general actions such as "Copy"; "Paste"; "Search".

Ex: If you right-click the "Text Data" input box (included in a "Display Text" properties window), you are provided with the "Paste", "Search..." and "Variable Select" options.

If you right-click any other input box, it will provide other possibilities.

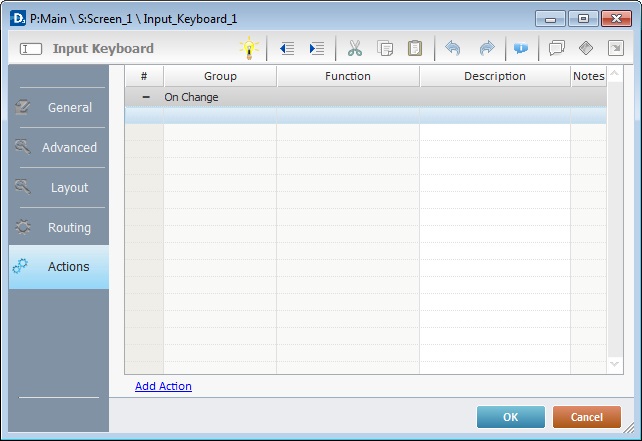

28. Click the "Actions" tab.



Keep in mind that there is always a default event (ex: "On Change"; "On Timer"; "On Hotkey"; etc.) attached to the object (in this case, it is an "On Change" event). If you want the event to trigger an action, you must add processes to it (ex: "Go To"; "Check File"; "Set Focus"; etc.).

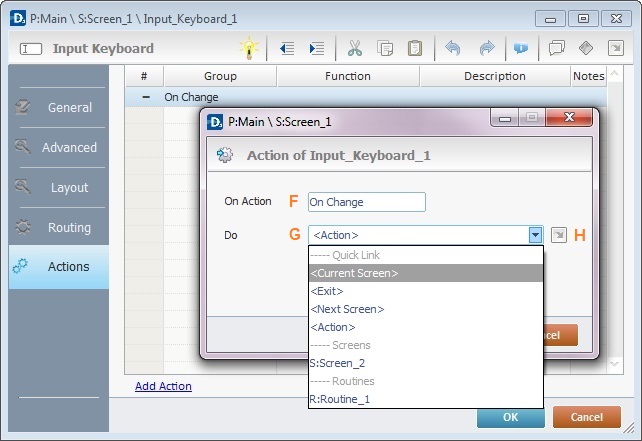

29. To edit the default event, double-click the event row ("On Change") OR  right-click the event row and select "Edit..." in the resulting menu. Either of these choices opens an "Edit Event" window.





30. Select from the drop-down or list:





Detail of a window





31. If required, add processes. See Adding and Editing Processes.



This object has predefined local variables (only available in event context). See Input Keyboard's Predefined Local Variables.





32. If there is no need to add more events, click to conclude the operation. If the project requires more events, proceed to step 33.



At this stage, the processes are being added to the default event (in this case, an "On Change"). The default event can, however, be ignored/overridden by adding other events (step 33).





33. Click (at the bottom of the "Actions" tab)to add an event.

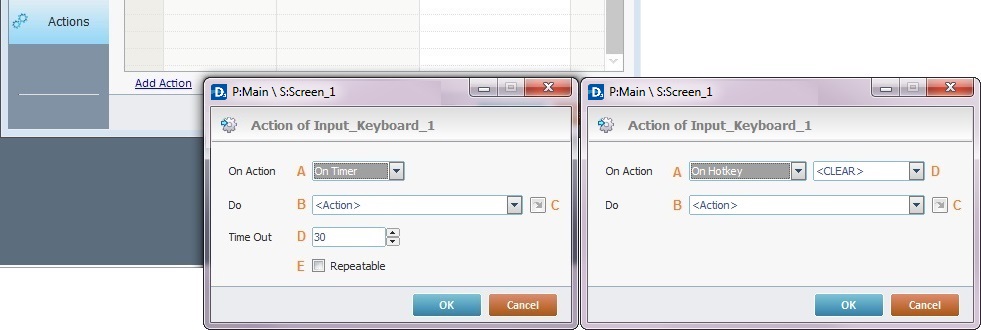

34. Select one of the available events (A) for this object ("On Timer" or "On Hotkey") and edit it (B or C,D and E).





Detail of a window





It is possible to add as many of the available events as required by the project (repeat steps 33 and 34).





35. Edit the new event(s). Double-click the event row to be edited and open the "Edit Event" window.

(Repeat steps 29 and 30).

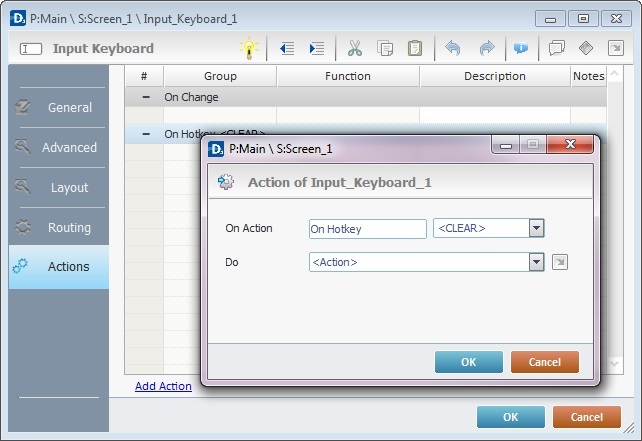

Ex: The editing of an added "On Hotkey" event.





Define which keystroke function(in a virtual or hardware keyboard) the object represents.

Define the objective/action to be executed after the event is triggered. Select one of the available destinations from the drop-down or list OR <Action> if you want to add other processes.



36. These new events can include processes. See Adding and Editing Processes.



If you have more than one event, remember to select the event row you want to add processes to.

If you use the drag-and-drop method to add processes, make sure to drop the process on the row below the intended event.





Before concluding the addition operation, check the following:



Remember that the "Enable" option (located in the "Layout" tab) must be checked so that the added actions/processes run.





If required, use the icons located on the upper right corner of the "properties" window:



Click this icon to create a new data file. It opens an "Edit New Data File" window. Go to Creating a Data File to see how to fill in the options available.



Click this icon to open a "Localization" window where you can edit the text element within that object or add translations to it. See Localization.



Click this icon to attach any relevant notes to this object. Enter your text in the resulting window. This information is displayed in the "Developer report". See Report.







37. Click in the "Actions" tab to apply the choices made.



The "Input keyboard" object has been successfully added to the screen.







If any subsequent edition of the object's properties is required, double-click the "Input Keyboard" OR  select " 'Input Keyboard' Properties" (in its right-click menu) to open the properties window.







Input Keyboard Behavior



The <CLEAR> function (“ESC” keyboard key) affects the Input Keyboard object as follows:



•If the Input Keyboard contains data, the <CLEAR> will empty that field. It will require a second <CLEAR> to follow the general rule, meaning, to execute the processes you added to the object or screen.

Input Keyboard with data 1st  <CLEAR> clears the data

2nd <CLEAR> executes any added processes



•If the Input Keyboard is empty, one <CLEAR> will be enough to proceed with the application’s workflow.

Empty Input Keyboard      1st <CLEAR> executes any added processes





"Input Keyboard" Predefined Local Variables



This object has predefined local variables (only available in event context).





* Defined in the object's "properties" window ("Layout" tab).

** According to the format rules defined in the object's "properties" window ("Advanced" tab).





* Defined in the object's "properties" window ("Layout" tab).
