Managing the Account > Applications > Configurations

Overview

View the details of a configuration so you know how and where to apply it - for instance, check the qualification, target device model and, if it is site restricted, the site it is associated to so you can deploy it to the compatible site(s).

To access the "Configuration Details" page, click Applications button (located in the "Control Panel"), and, in the resulting row, select Configurations Sub Module Button .

This opens a "Configurations" page with the configurations in the account.

Account Configurations0

If necessary, check to ensure the viewing of all configuration versions. If left unchecked, you only view the latest version of the application.

You can filter the display of configurations - click to access the available filters ("Qualification", "Site", "Status", "Manufacturer and/or "Last Update") and use the ones you want.

Use to apply the defined filters and to remove them.

Select the configuration you want to view by clicking its name (displayed in light blue). This opens the corresponding "Configuration Details" page which includes several tabs and a "left panel".

Speech Balloon_Button_Tab

In the "Configuration Details" page, use the drop-down (on the page's upper right corner) to open a different version of the configuration without having to return to the "Configurations" page:

I. Mouse over the version to expand a drop-down with the existing versions of the currently open configuration.

II: Click the intended version.

App Navigating vers. buttons_1

The "Configuration Details" page is refreshed with the new data of the selected configuration version.

By default, the "Configuration Details" page opens in the "Properties" tab.

"Properties" tab

This tab displays the following information:

Name	The name of the configuration.
Version	The configuration's version number.
Device Model	The configuration's target device: manufacturer, device model and Operating System.
Qualification	The configuration's qualification. There are 4 qualifications available(see Qualification): •"Production" - for configurations that are used in the customer's working environment, for day-to-day tasks. •"Acceptance" - for configurations to be applied to sites (and its device groups) with an "Acceptance" qualification for specific testing purposes. •"Test" - for configurations that contain application/resources that will be used for general tests. •"Development" - for configurations to be used in a development environment. Qualification ensures that each entity can ONLY view/handle other entities that are compatible. The compatibility between a configuration's qualification and other entities/qualifications is as follows: •"Production" configurations are ONLY available for sites with a "Production" qualification. •"Acceptance" configurations can be handled by "Acceptance" and "Production" qualified sites. •Configurations with a "Test" qualification are accessible to sites with a "Test", "Acceptance" or "Production" qualification. •"Development" qualified configurations are available to all sites, regardless of its qualification, unless they are restricted to a specific site.
Site Restriction	The name of the site, if the current configuration version is restricted to a specific site. "<None>", if the configuration version is available to all the compatible sites in the account.
Description	Relevant information about the configuration.

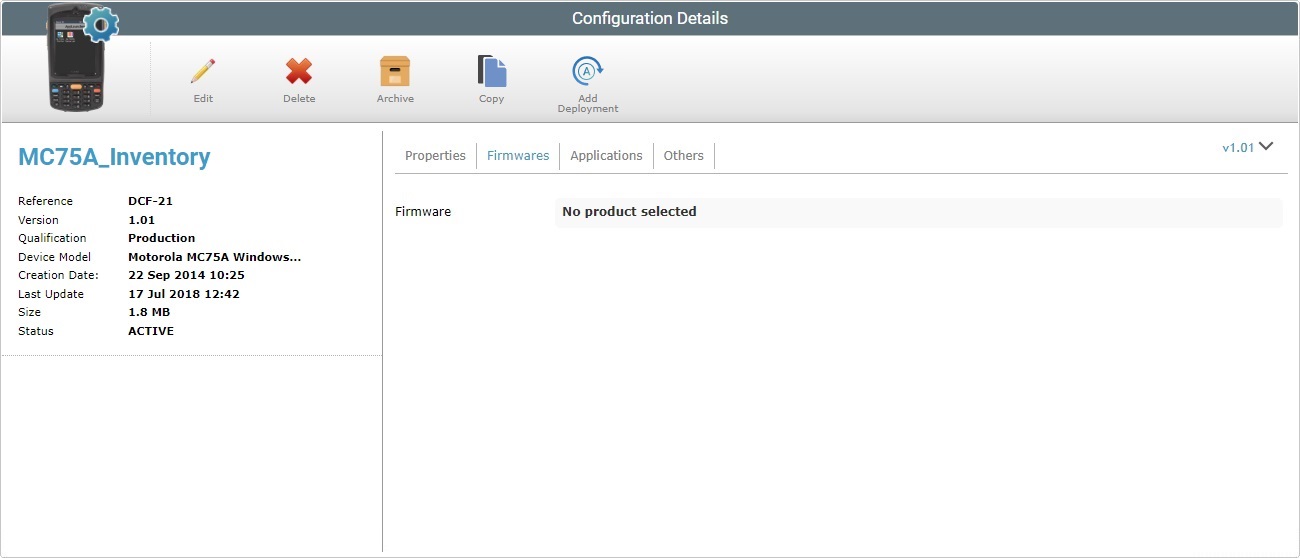

"Firmwares" tab

This tab displays the firmware that is included in the configuration.

Depending on the configuration's selected MCL product, there may or may NOT be related firmware available.

In terms of TTS languages, there are 2 available speech models for a given language:

Standard TTS speech model – Uses a large speech base (encoded speech units based on natural speech recordings that are selected/concatenated as necessary). The resulting TTS is closer to a natural sounding speech.

Compact TTS speech model – Uses a smaller speech base (the speech units are a result of a limited number of recordings which are, then, compiled together). The resulting TTS is more synthetic.

These models are referenced as follows:

Standard TTS language example: “MCL-Client Voice V4 TTS French (FR) Female Speaker Audrey"

Compact TTS language example: “MCL-Client Voice V4 TTS French (FR) - Compact - Female Speaker Audrey"

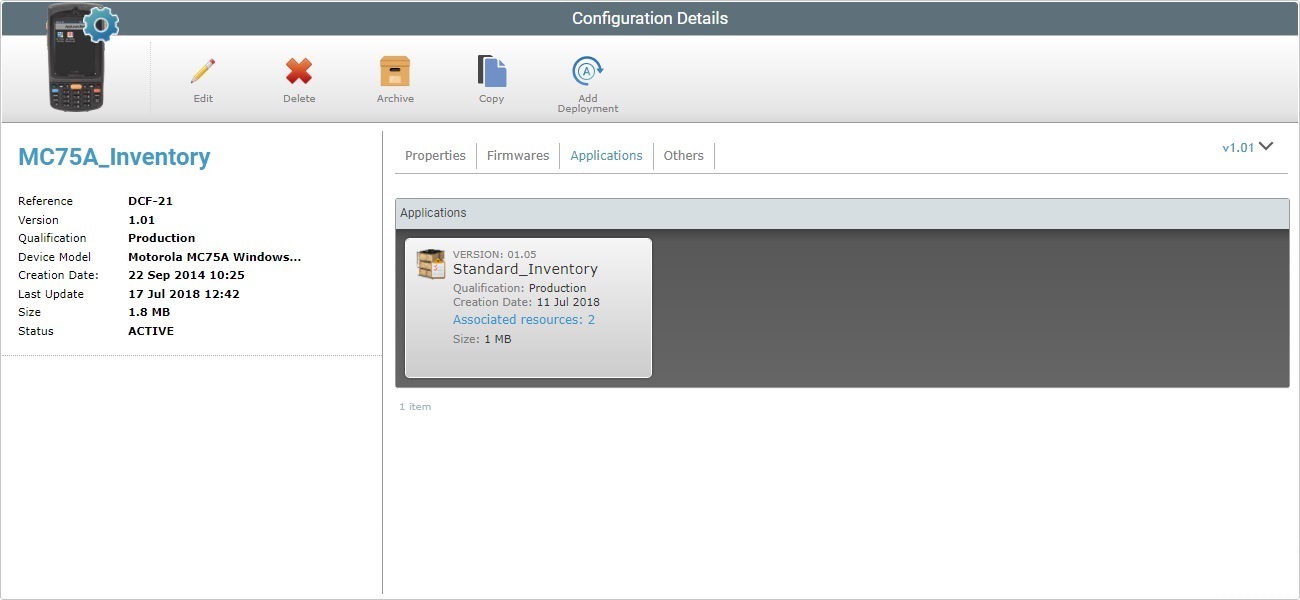

"Applications" tab

Account Configurations det4

This tab displays the list of applications included in the configuration, in a grid view with the following information:

Icon	The application's icon (if the application includes one).
Version	The application's version number.
Name	The application's name.
Qualification	The application's qualification.
Creation Date	When the application's version was created.
Associated resources (displayed in light blue)	The number of resources attached to the corresponding application. Click it to access the "Resources" window which displays those resources. See Details on the "Resources" window below.
Size	The size of the application file.

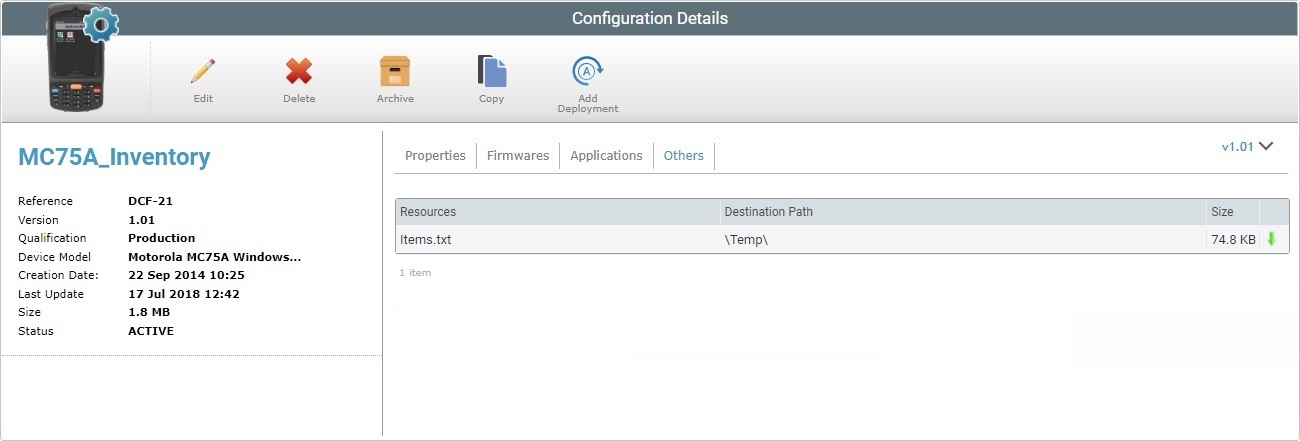

"Others" tab

Configuration Details Page Misc Tab View2_Account

This tab displays the miscellaneous resources included in the configuration that the device may require.

If the uploaded resource files do not have a .pdk, an .apk or .cab extension, you will also view their corresponding paths - they MUST be added to ensure that the files are located.

If needed, you can download the displayed resources:

a. Click the of the resource file you want to download.

The file will be downloaded into your PC.

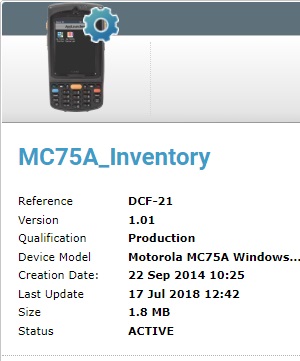

Left Panel

The left side of the page also displays information:

	Device Logo	The logo that identifies the device. If the configuration has no specific device model, this logo is replaced with .
	(displayed in blue)	The name of the configuration.
	Reference	The configuration's MCL-Mobility Platform's internal reference.
	Version	The configuration's version.
	Qualification	The configuration's qualification (ex: Production, Acceptance,Test and Development).
	Device Model	The configuration's target device (manufacturer, model and OS version).
	Creation Date	The configuration's creation date.
	Last Update	The date of the configuration's last update.
	Size	The configuration's package size (includes the applications and resources).
	Status	The configuration's status: "Available", "Active" or "Archived".

Available Operations

To edit the details of a configuration, click to set the corresponding "Configuration Details" page to edit mode. For more detailed information, see Editing a Configuration.

To delete the configuration, use . For more information, see To Delete a Configuration in the "Configuration Details" Page.

To archive the configuration, click the button. For more information, see To Archive a Configuration in the "Configuration Details" Page.

To copy a configuration, click . For more information, see Copying a Configuration.

To deploy a configuration, use . For more information, see Deploying a Configuration.
