Managing a Site > Devices

Overview

Devices are all types of mobile devices used by the site operators to perform their daily tasks, such as inventories, picking or receiving goods. Devices are always included into device groups (which can only contain same model devices).

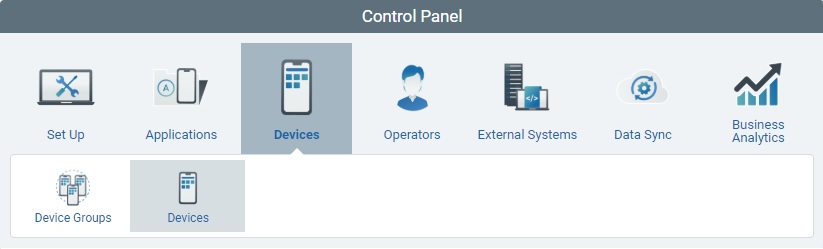

To access the "Devices" sub-module, click Devices Button (in the "Control Panel" section) and, then, in the resulting row below, select Devices Sub Module Button .

Control Panel_Devices_SD

When entering the "Devices" page for the first time, you view the following message:

Click to go directly to the “New Device Group” page and create a Device Group. For more detailed information, see Creating a Device Group.

The image below illustrates the page that is accessed when clicking the "Devices" sub-module button Devices Sub Module Button .

Speech Balloon_Button_Option

This page displays the devices included in a site.

You can adopt the "All Groups" view or filter the device display by device group, meaning, the page only displays the selected device group with all its devices.

To do so, use the drop-down - its list includes the "All Groups" and "Unassigned Devices" options, by default, and the device groups you have created.

The "All Groups" filter option does NOT include the "Unassigned Devices". To view the devices on this group, select "Unassigned Devices".

You also control the displayed information regarding the devices by selecting the most appropriate view (Summary, Properties, Configuration, Client, System, Network or Location).

To do so, click the icon that represents the most appropriate view for the information you want to have displayed (see Available Device Views):

Status Icons Associated to Devices

The display of devices is associated to a range of icons that inform you of their current status. Below is a list with those icons and what they represent.

For more detailed information on each status, see Changing a Device's Status.

Icon	Description
Device Statuses
	Device status “Enabled” - the device is active and can run applications.
	Device status “Disabled” - the device runs the installed applications and keeps contacting the account to check if there is a status change. The device does NOT receive deployments but it reports device information (ex: the device sends current device info such as battery type, power level, Mac address, etc.).
	Device status “Locked” - the device is unable to run any application but keeps contacting the account to check if there is a status change. The device can receive deployments and it reports device information (ex: the device sends current device info such as battery type, power level, Mac address, etc.).
	Device status “Repair” - the device is not working properly and is being repaired. See Repair Status.
	Device status “Wipe” - all MCL software is erased from the device. As a result, the device is cut off from the MCL-Mobility Platform account. See Wipe Status.
Battery Statuses
	Device is using external power and charging.
	Device is using battery power. The icon works as a reverse progress bar - the green recedes to represent lowering battery levels.
Last Contact Statuses
	The last time the device sent information. Mouse over the icon to see last contact date and time.
	No device contact or no contact in the previous hour.
Deployment Statuses
	Pending Deployment.
	Resumed Deployment.
	Downloading and installing Configuration Component.
	Device Deployment completed.
	Undefined status.
	Connection Error (x).
MCL-Client Statuses
	Device's MCL Client running.
	Device's MCL Client stopped/inactive.
	Device's MCL Client paused.
	Undefined status.
Other Statuses
	The device is currently being accessed remotely via MCL-Mobility Platform (meaning, the remote control session is in "public network" mode). See Remote Control.

Available Device Views

There are several views available, each one with its own specific information - "Summary", "Properties", "Configuration", "Client", "System", "Network" and "Location". The exception is the "Summary" view which displays general information on a device and is the default view.

You can access each view by clicking the corresponding icon:

Icon	View
	Summary
	Properties
	Configuration
	Client
	System
	Network
	Location
	User Fields

Below is a description of each view/presented information:

Summary view

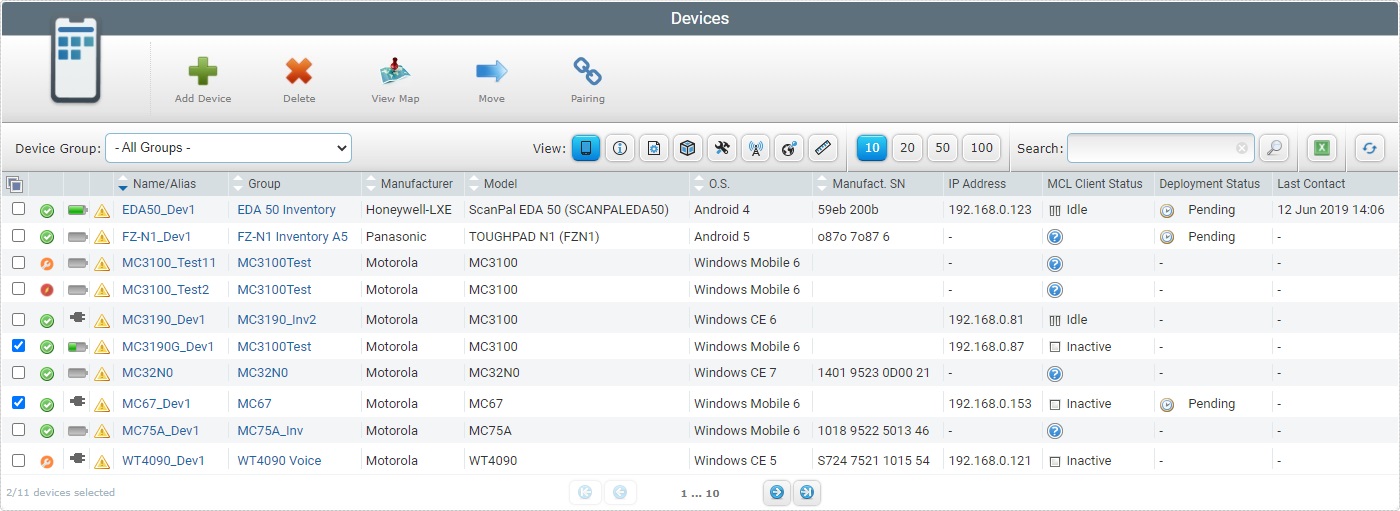

Site Devices0

The "Summary" view displays the following information:

Status columns	The initial columns display status icons regarding the device's current status (device, battery and last contact statuses). See Status Icons Associated to Devices.
Name/Alias	The device name (displayed in light blue). If clicked, it provides access to the corresponding "Device Details" page. See Device Details.
Group	The device’s device group. If clicked, it provides access to the corresponding "Device Group Details" page. See Device Group Details
Manufacturer	The device's manufacturer.
Model	The device’s model.
O.S.	The device's Operating System.
Manufact. SN	The device's manufacturer serial number.
IP Address	The device’s IP address.
MCL Client Status	The device’s MCL Client status: Running – An MCL application is running. Paused – An MCL application is running but paused (no user activity). Idle – No MCL application is running but MCL App Desktop is open on the device's screen. Inactive – MCL App Desktop not running.
Deployment Status	Possible deployment statuses and information/error messages: Completed - The deployment was performed with success. Undefined - There is no information regarding the deployment's execution. Pending - The deployment is on stand by. This status often provides the reason for the deployment's interruption (Ex: "Pending (Battery mode refused)"). Resumed - The deployment is resumed after being on stand by. Downloading ... - The deployment is uploading the necessary components into the device. Installing ... - The downloaded components are being installed. Initializing Rebooting Agent updated Connection error PDC syntax error PDC Component not enough storage space available error PDC Component file checksum error File target copy error CAB runtime error PDK setup error PDK runtime error APK runtime error This information is also displayed in a device's "Device History" window (in the "dpl. info" column of the "DPL" tab).
Last Contact	The device’s last contact (date and time).

Properties view

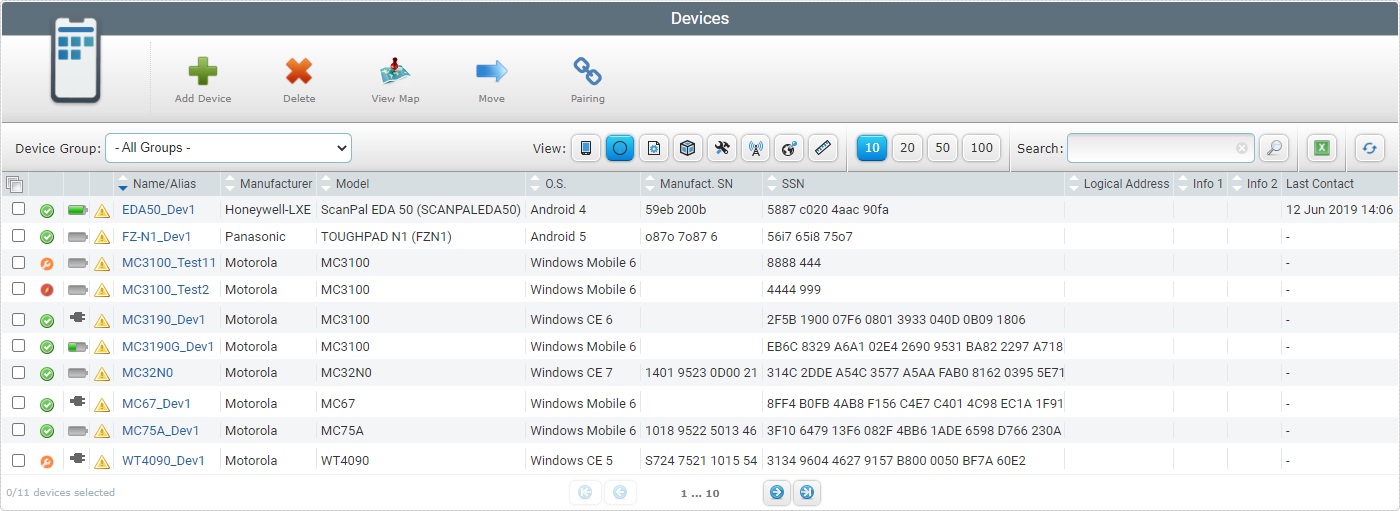

Devices page properties view

This is the information displayed by the Properties view:

Status columns	The initial columns display status icons regarding the device's current status (device, battery and last contact statuses). See Status Icons Associated to Devices.
Name/Alias	The device name (displayed in light blue). If clicked, it provides access to the corresponding "Device Details" page. See Device Details.
Manufacturer	The device’s manufacturer.
Model	The device’s model.
O.S.	The device’s Operating System.
Manufact. SN	The device's manufacturer serial number.
SSN	The device's SSN.
Logical Address	MCL Logical Address (Subnet ID – Device ID) (MCL Client Version 3 legacy).
Info 1	Information entered in the "Properties" tab of the "Device details" page. The column name can be customized in the site's "Site Details" page - "Custom Labels" tab.
Info 2	Information entered in the "Properties" tab of the "Device details" page. The column name can be customized in the site's "Site Details" page - "Custom Labels" tab.
Last Contact	The device’s last contact (date and time).

Configuration view

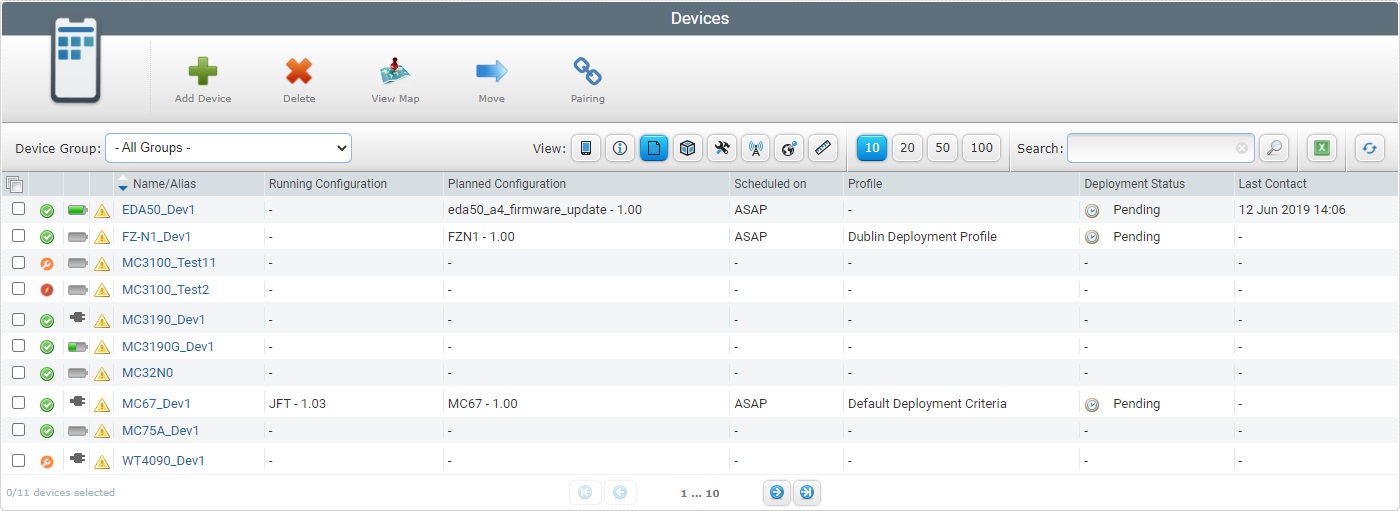

Site Devices4

The “Configuration” view includes the following information:

Status columns	The initial columns display status icons regarding the device's current status (device, battery and last contact statuses). See Status Icons Associated to Devices.
Name/Alias	The device name (displayed in light blue). If clicked, it provides access to the corresponding "Device Details" page. See Device Details.
Running Configuration	The name of the current configuration installed in the device.
Planned Configuration	The name of the planned configuration to be uploaded to the device.
Scheduled on	The planned date for the configuration deployment (ASAP or date/time).
Profile	The profile associated to the deployment. See Deployment Criteria Profile Details.
Deployment Status	Possible deployment statuses and information/error messages: Completed - The deployment was performed with success. Undefined - There is no information regarding the deployment's execution. Pending - The deployment is on stand by. This status often provides the reason for the deployment's interruption (Ex: "Pending (Battery mode refused)"). Resumed - The deployment is resumed after being on stand by. Downloading ... - The deployment is uploading the necessary components into the device. Installing ... - The downloaded components are being installed. Initializing Rebooting Agent updated Connection error PDC syntax error PDC Component not enough storage space available error PDC Component file checksum error File target copy error CAB runtime error PDK setup error PDK runtime error APK runtime error This information is also displayed in a device's "Device History" window (in the "dpl. info" column of the "DPL" tab).
Last Contact	The device’s last contact (date and time).

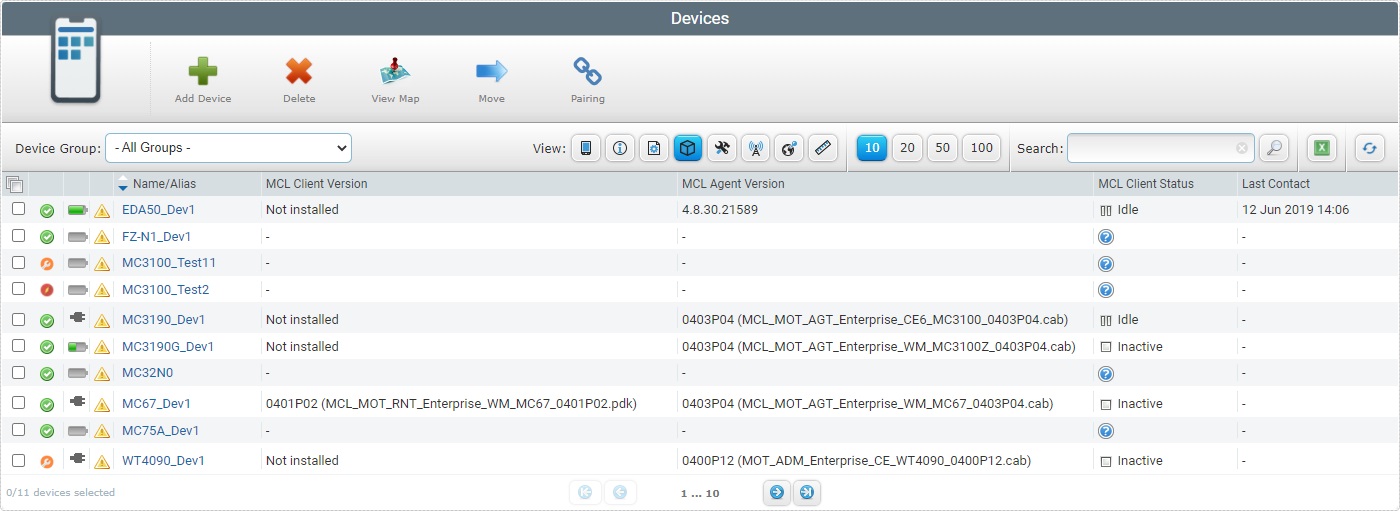

Client view

Site Devices5

The “Client” view displays the following information:

Status columns	The initial columns display status icons regarding the device's current status (device, battery and last contact statuses). See Status Icons Associated to Devices.
Name/Alias	The device name (displayed in light blue). If clicked, it provides access to the corresponding "Device Details" page. See Device Details.
MCL Client Version	The device’s installed MCL Client version.
MCL Agent Version	The device’s installed MCL Agent version.
MCL Client Status	The device’s MCL Client status: Running – An MCL application is running. Paused – An MCL application is running but paused (no user activity). Idle – No MCL application is running but MCL App Desktop is open on the device's screen. Inactive – MCL App Desktop not running.
Last Contact	Displays the device’s last contact (date and time).

System view

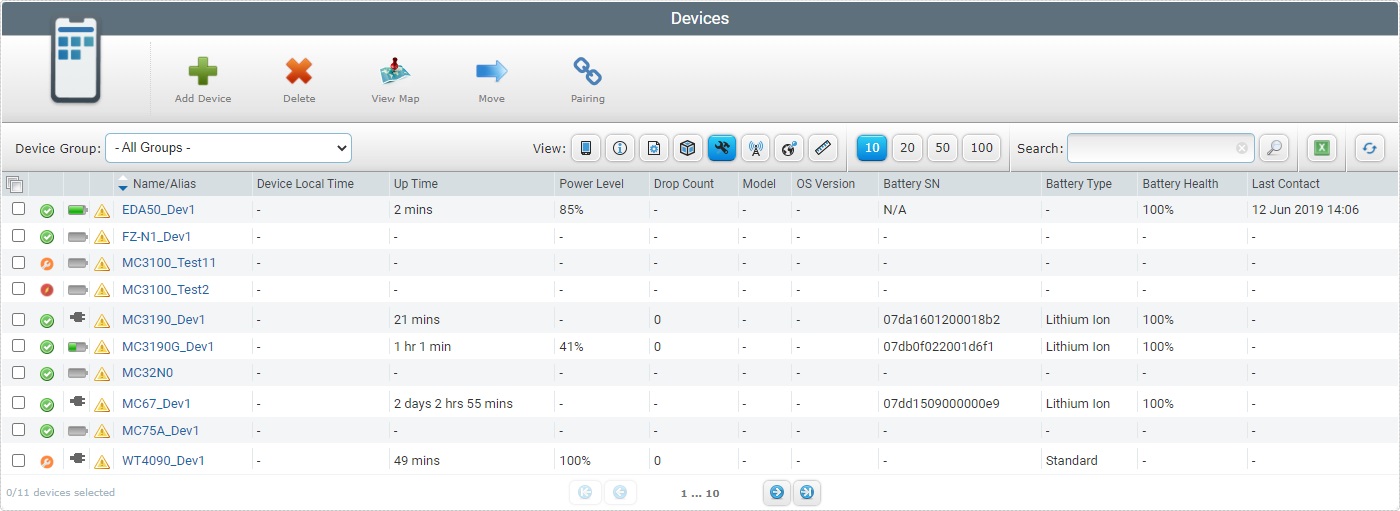

Site Devices6

The “System” view displays the following information:

Status columns	The initial columns display status icons regarding the device's current status (device, battery and last contact statuses). See Status Icons Associated to Devices.
Name/Alias	The device name (displayed in light blue). If clicked, it provides access to the corresponding "Device Details" page. See Device Details.
Device Local Time	The local time set in the device.
Up Time	The elapsed time since the device’s last start up.
Power Level	The device’s battery power level.
Drop Count	The device’s number of falls. Only available for devices with this feature.
Battery SN	The device’s battery serial number. Only available for devices with this feature.
Battery Type	The device’s battery type. Only available for devices with this feature.
Battery Health	The device’s battery health. Only available for devices with this feature.
Last Contact	The device’s last contact (date and time).

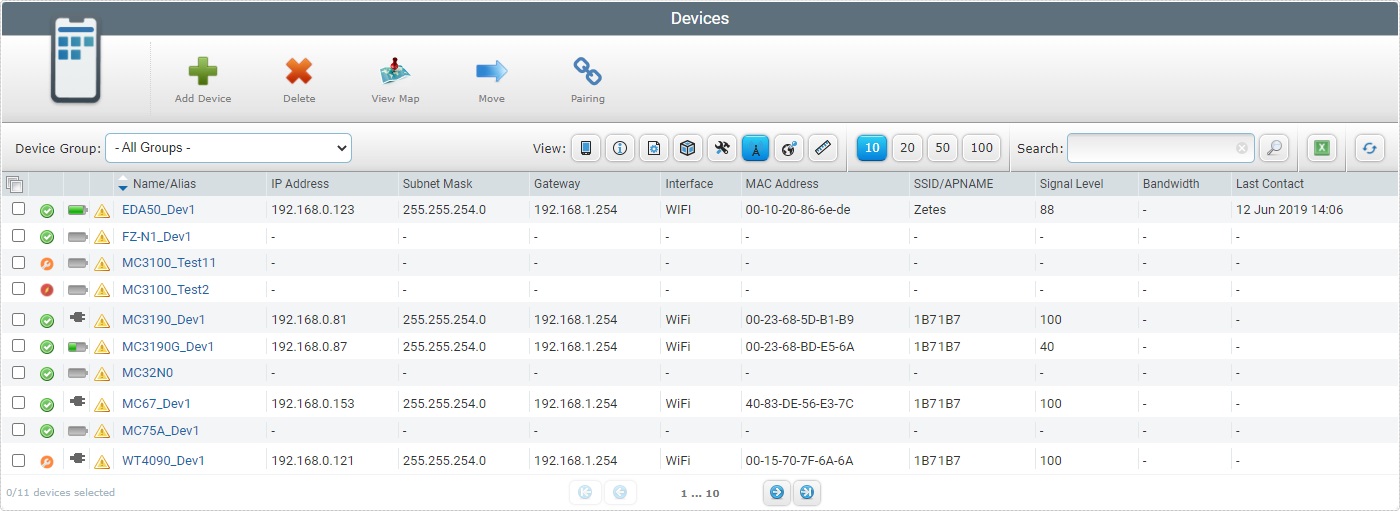

Network view

Site Devices7

The "Network" view provides the following information:

Status columns	The initial columns display status icons regarding the device's current status (device, battery and last contact statuses). See Status Icons Associated to Devices.
Name/Alias	The device name (displayed in light blue). If clicked, it provides access to the corresponding "Device Details" page. See Device Details.
IP Address	The device’s IP address.
Subnet Mask	The device’s network Subnet Mask.
Gateway	The device’s network Gateway.
Interface	The device’s communication interface (Cable (AS) – ActiveSync or WiFi).
MAC Address	The device’s MAC Address.
SSID/APNAME	The SSID or APNAME to which the device is connected.
Signal Level	The WiFi connection signal level.
Bandwidth	The WiFi connection band width.
Last Contact	The device’s last contact (date and time).

Location view

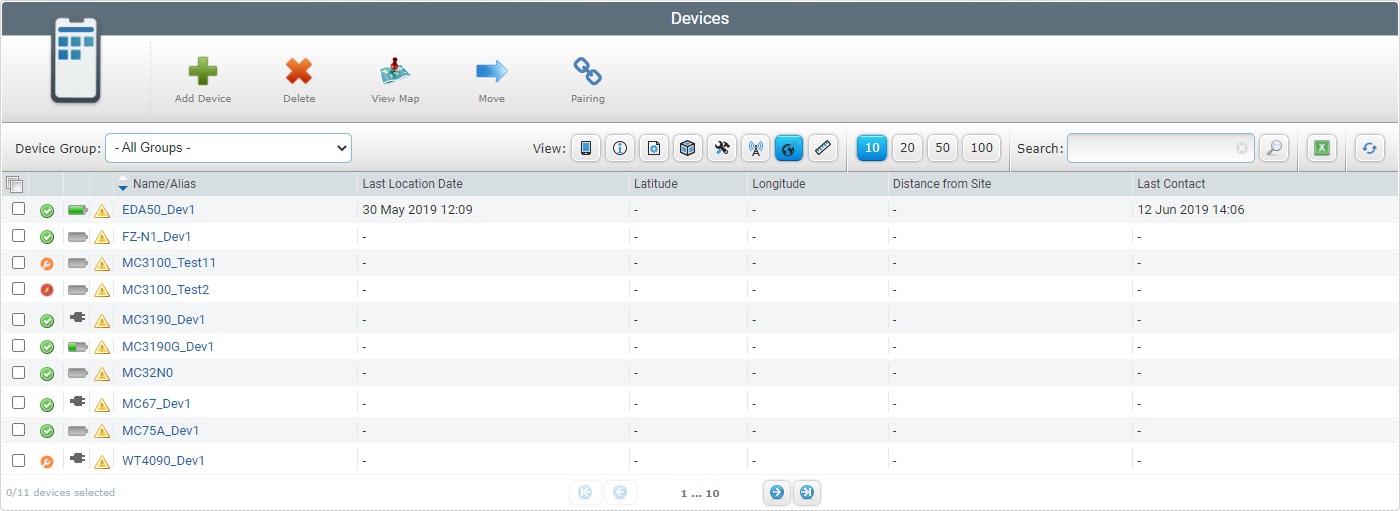

Site Devices8

The “Location” view provides information regarding devices with active GPS.

Status columns	The initial columns display status icons regarding the device's current status (device, battery and last contact statuses). See Status Icons Associated to Devices.
Name/Alias	The device name (displayed in light blue). If clicked, it provides access to the corresponding "Device Details" page. See Device Details.
Last Location Date	The date of the device's last contact with location information.
Latitude	The last known latitude (location information is provided by the device's active GPS).
Longitude	The last known longitude (location information is provided by the device's active GPS).
Distance from Site	The device's distance to the site it is associated to (location information is provided by the device's active GPS).
Last Contact	The device’s last contact (date and time).

If no coordinates are displayed, it means that the device does not include GPS or it is disabled. This view is recommended for the map locating of a device.

See To Locate a Device's current Position in a Map.

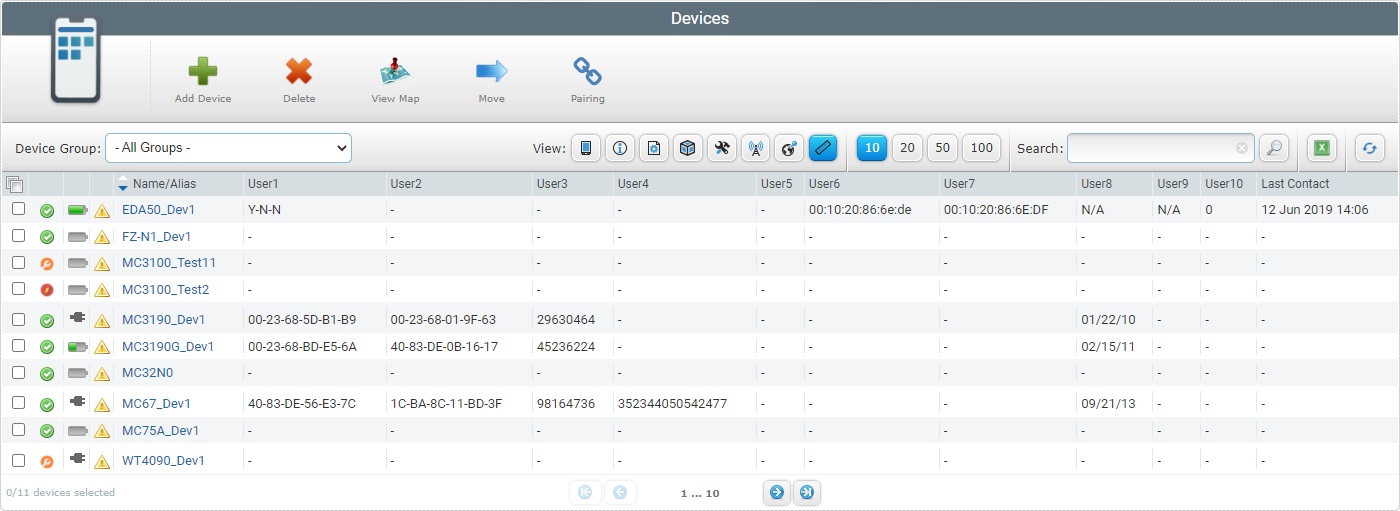

User Fields view

Site Devices11

The “User Fields” view provides information regarding devices with active GPS.

Status columns	The initial columns display status icons regarding the device's current status (device, battery and last contact statuses). See Status Icons Associated to Devices.
Name/Alias	The device name (displayed in light blue). If clicked, it provides access to the corresponding "Device Details" page. See Device Details.
User1 > 10	The values sent by the device's MCL application regarding any business entity which can, then, be used to create reports.
Last Contact	The device’s last contact (date and time).

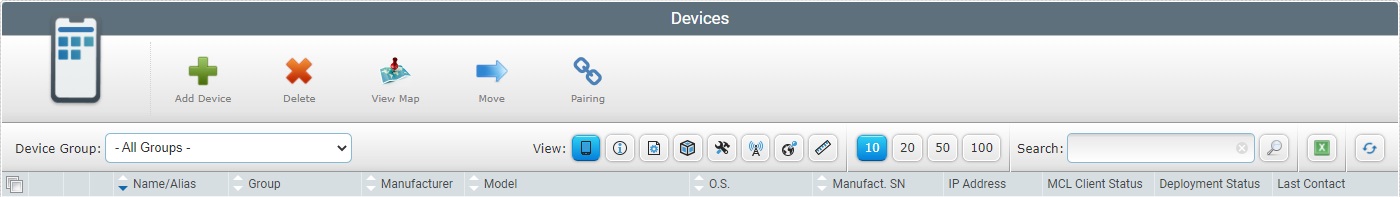

The "Devices" page offers the following options to control the displayed information:

Site Devices Navigation

Use the to filter the device display based on device group.

If you want to check the "Unassigned Devices" device group, you must select the "Unassigned Devices" option - the "All Groups" does not include this default device group.

Use these buttons to control how many items are displayed at a time. Click one of the options (10 items per page/20 items per page/50 items per page/100 items per page).

Use the search box to look for specific list items.

a. Enter what you want to search for.

b. Click or press <ENTER> in your PC keyboard to initiate the search.

c. Use one of the following to clean the searched data to start a new search or return to a full view:

•empty the search box and click ;

•empty the search box and press <ENTER> in your PC keyboard;

•click the button.

"Name/Alias", "Manufacturer SN" and "SSN" are the accepted search criteria.

The search range depends on the defined "Device Group" filter (ex: If you are only viewing "Device Group A", the search will only focus on "Device Group A").

Use this button to export a list with the devices included in the account. Proceed as follows:

Since the export only includes the information on current display, make sure the displayed device list includes all the information you want to export. This requires selecting the device group to be displayed as well as the view, because each view provides different information concerning the devices.

Step-by-step

1. Select the intended device group in the option.

Device Group and View Filter

2. Click the icon that represents the intended view to display it.

3. Click .

Export confirmation

4. Click to conclude the operation. The device list is exported to an Excel File format.

The conclusion of the export operation depends on the web browser used. You should be able to save the Excel file in your local computer or open it directly after the download.

If the resulting list is expected to have a large number of records, instead of a device export operation, we recommend the use of the "Reporting" service (an MCL-Mobility Platform service that provides specific information to external back-end systems via web service requests).

Click this button to refresh the page's information.

Use the buttons, included in this bar, to organize the listed items of the corresponding column:

•by ascending order.

• by descending order.

Click this button to select all the listed items on display. In this case, the devices.

•Use these buttons, located in the page's footer, to navigate the listed devices:

•These buttons allow you to navigate between the next/previous grouped items per page.

•These buttons are used to navigate to the first/last grouped items per page.

Available Operations

To add a device to a device group, use the button. For more information, see Adding a Device.

To delete a device, use the button. For more detailed information, see Deleting a Device.

To locate a device's position in a map, click and proceed as follows:

Step-by-step

1. Select the device(s) you want to locate by checking the corresponding .

Site Devices9

Ex: The selected devices are "MC3190G_Dev1" and "MC67_Dev1".

2. Click .

Site Devices10

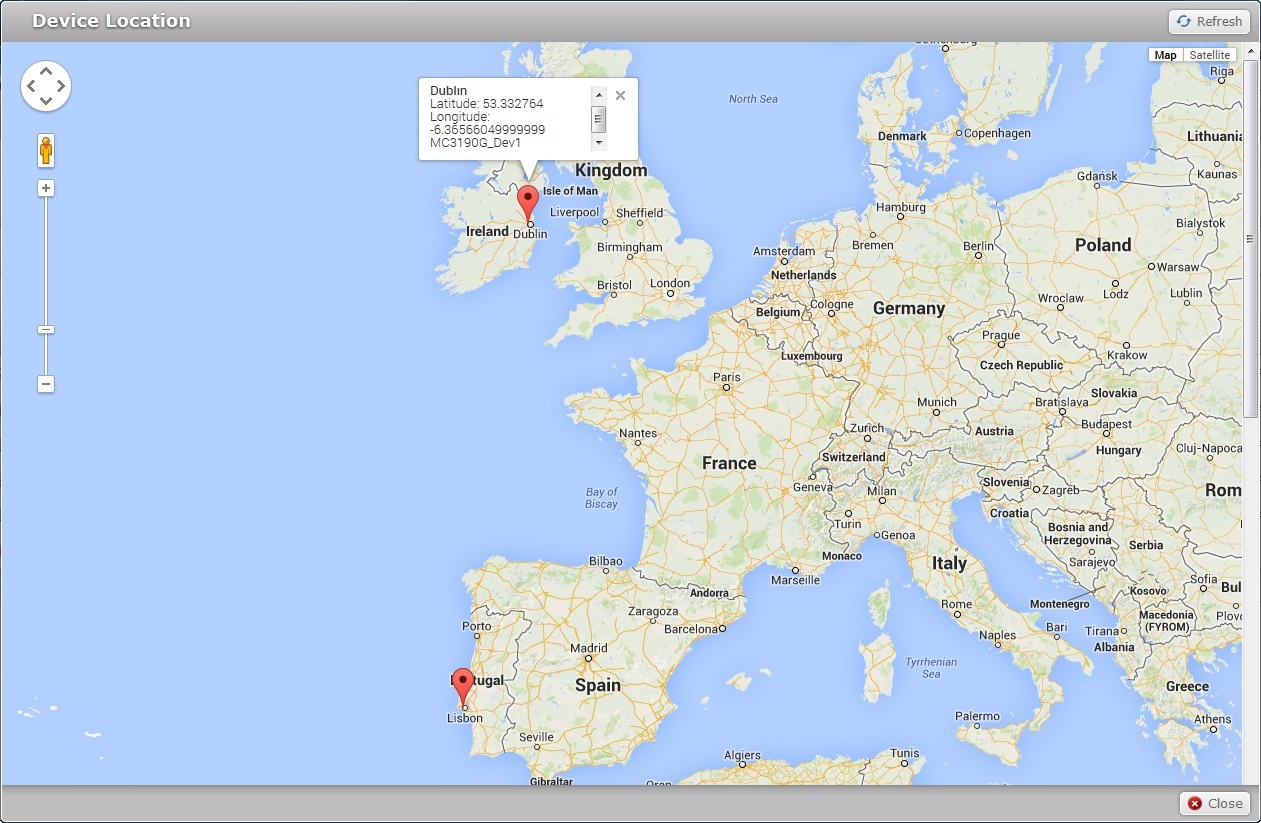

The "Device Location" window opens automatically with a map pinpointing the device's location.

Use the controls to your left to navigate the map.

Ex: The location of both devices is displayed. Since one of the selected devices does not have GPS coordinates available (the "MC3190G_Dev1" device) we are provided with the coordinates of its site.

A device with GPS coordinates available is located through the coordinates it sends to MCL-Mobility Platform.

A device without GPS coordinates available is located through the site address coordinates.

•Click a site location icon to know which device it refers to, the specific coordinates and the device's last GPS contact (this last information is not available for devices with no GPS).

Site Device location0

•The information on the selected devices' GPS coordinates is refreshed every few minutes. However, if necessary, you can click (pop-up window's upper-right corner) to trigger a manual refresh of the device's location/GPS coordinates.

3. Click to exit the "Device Location" window.

To move a device to another device group, use the button. For more information, see Moving a Device.

To add a device using the pairing method, use the button. For more information, see Adding a Device/Staging a Device.

This chapter includes all the aspects associated to devices (device details, the adding and deleting of a device, etc.). The table below refers the user profiles that have access to the described operations:

Keep in mind that the account administrator and/or the site manager, at a lower level, can restrict other users' access rights. This user guide is presenting all the possibilities in terms of access.

Topic/Operation	Description
Device Details	View a device's features and current status information.
Pairing and Staging Operations	Find information on the pairing and/or staging of a device.
Adding a Device/Staging a Device	Pair the devices to device groups and configure them appropriately.
Unpairing Devices	Disconnect your device from your MCL-Mobility Platform account.
Editing Device Details	Edit the device's features.
Changing a Device's Status	Change the status of the device.
Moving a Device	Move a device from one device group to another.
Deleting a Device	Delete a device from its device group.
Remote Control	Use the "Remote Control" feature to remotely view/control the device's screen in your MCL-Mobility Platform account.
